Hapi - Hydrological library for Python#

DOI PyPI Conda Python Downloads Platforms

Hapi

Hapi is a Python package providing a fast and flexible way to build hydrological models with different spatial representations (lumped, semi-distributed, and conceptual distributed) using HBV96. The package allows developers to change the structure of the defined conceptual model or to provide their own model. It contains two routing functions: Muskingum-Cunge and MAXBAS triangular function.

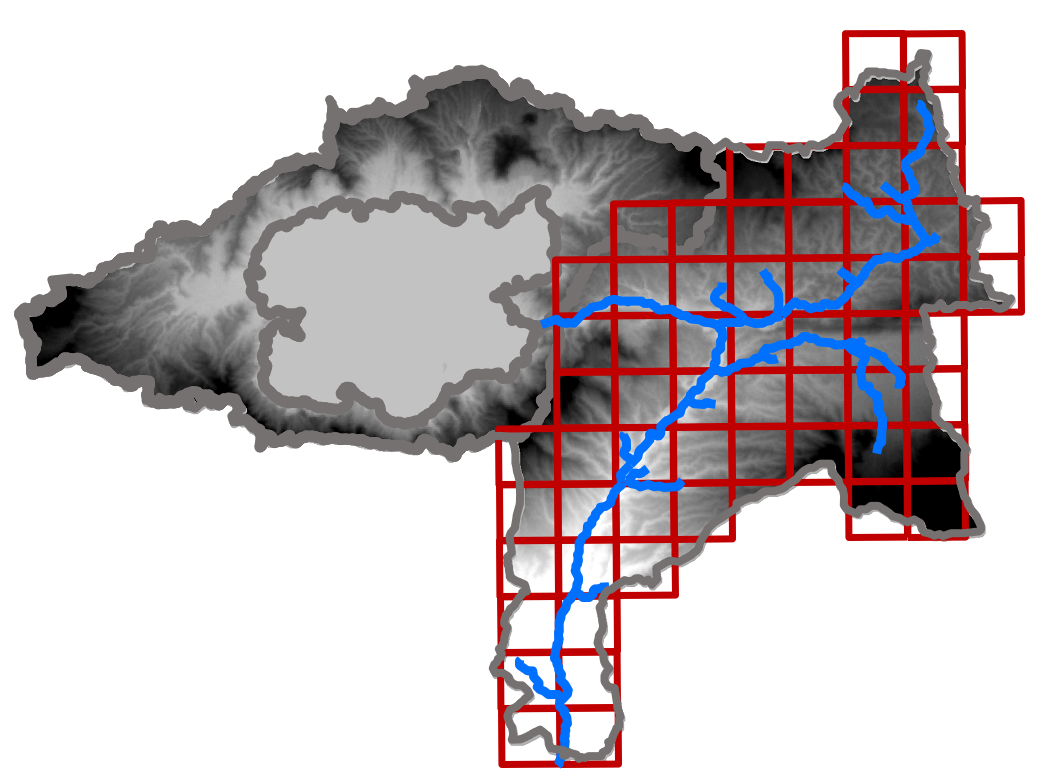

Model Structure

Main Features#

  • Modified version of HBV96 hydrological model (Bergstrom, 1992) with 15 parameters when considering snow processes, and 10 parameters without snow, plus 2 Muskingum routing parameters
  • GIS modules to prepare meteorological inputs and perform preprocessing (align rasters with the DEM), plus methods to manipulate distributed data (rasters, NetCDF, shapefiles)
  • Sensitivity analysis module based on One-At-a-Time (OAT) and Sobol interaction analysis (Rusli et al., 2015)
  • Statistical module with interpolation methods, frequency analysis distributions, and Maximum Likelihood parameter estimation
  • Visualization module for animating distributed model results and meteorological inputs
  • Optimization module for calibrating the model using Harmony Search

The recent version integrates global hydrological parameters from Beck et al. (2016) to reduce model complexity and parameter uncertainty.

IHE-Delft Sessions#

  • April 14-15: Two-day session for Masters and PhD students at IHE-Delft — Day 1, Day 2

Citation#

For using Hapi please cite Farrag et al. (2021) and Farrag & Corzo (2021).

References#

Farrag, M. & Corzo, G. (2021) MAfarrag/Hapi: Hapi. doi:10.5281/ZENODO.4662170

Farrag, M., Perez, G. C. & Solomatine, D. (2021) Spatio-Temporal Hydrological Model Structure and Parametrization Analysis. J. Mar. Sci. Eng. 9(5), 467. doi:10.3390/jmse9050467

Beck, H. E. et al. (2016) Global-scale regionalization of hydrologic model parameters. doi:10.1002/2015WR018247

Bergstrom, S. (1992) The HBV model - its structure and applications. SMHI RH 4(4), 35.

Rusli, S. R., Yudianto, D. & Liu, J. (2015) Effects of temporal variability on HBV model calibration. Water Sci. Eng. 8(4), 291-300. doi:10.1016/j.wse.2015.12.002
