Analysis & Statistics

Statistics, extraction, overlay, apply, fill, histogram, and plotting.

Lazy per-pixel operations

Every neighbourhood op on Dataset accepts a chunks= kwarg that routes through dask.array.map_overlap:

from pyramids.dataset import Dataset

dem = Dataset.read_file("dem.tif")

slope_eager = dem.slope()                          # numpy array (default)
slope_lazy  = dem.slope(chunks=(1024, 1024))       # dask.array.Array

Method	Dask path gated on chunks=
ds.focal_mean	Yes
ds.focal_std	Yes (two-pass numerically stable)
ds.focal_apply(func, ...)	Yes (user kernel)
ds.slope, ds.aspect, ds.hillshade	Yes
ds.zonal_stats(fc, ...)	Eager FC required — call .compute()

See Lazy rasters for chunk-size rules and kernel examples. zonal_stats is covered in its own section.

pyramids.dataset.engines.Analysis

Bases: _Engine

Mixin providing analysis, statistics, and data extraction operations for Dataset.

Source code in src/pyramids/dataset/engines/analysis.py

class Analysis(_Engine):
    """Mixin providing analysis, statistics, and data extraction operations for Dataset."""

    def stats(
        self, band: int | None = None, mask: GeoDataFrame | None = None
    ) -> DataFrame:
        """Get statistics of a band [Min, max, mean, std].

        Args:
            band (int, optional):
                Band index. If None, the statistics of all bands will be returned.
            mask (Polygon GeoDataFrame or Dataset, optional):
                GeodataFrame with a geometry of polygon type.

        Returns:
            DataFrame:
                DataFrame wit the stats of each band, the dataframe has the following columns
                [min, max, mean, std], the index of the dataframe is the band names.

                ```text

                                   Min         max        mean       std
                    Band_1  270.369720  270.762299  270.551361  0.154270
                    Band_2  269.611938  269.744751  269.673645  0.043788
                    Band_3  273.641479  274.168823  273.953979  0.198447
                    Band_4  273.991516  274.540344  274.310669  0.205754
                ```

        Notes:
            - The value of the stats will be stored in an xml file by the name of the raster file with the extension of
              .aux.xml.
            - The content of the file will be like the following:

              ```xml

                  <PAMDataset>
                    <PAMRasterBand band="1">
                      <Description>Band_1</Description>
                      <Metadata>
                        <MDI key="RepresentationType">ATHEMATIC</MDI>
                        <MDI key="STATISTICS_MAXIMUM">88</MDI>
                        <MDI key="STATISTICS_MEAN">7.9662921348315</MDI>
                        <MDI key="STATISTICS_MINIMUM">0</MDI>
                        <MDI key="STATISTICS_STDDEV">18.294377743948</MDI>
                        <MDI key="STATISTICS_VALID_PERCENT">48.9</MDI>
                      </Metadata>
                    </PAMRasterBand>
                  </PAMDataset>

              ```

        Examples:
            - Get the statistics of all bands in the dataset:

              ```python
              >>> import numpy as np
              >>> arr = np.random.rand(4, 10, 10)
              >>> geotransform = (0, 0.05, 0, 0, 0, -0.05)
              >>> dataset = Dataset.create_from_array(arr, geo=geotransform, epsg=4326)
              >>> print(dataset.stats()) # doctest: +SKIP
                           min       max      mean       std
              Band_1  0.006443  0.942943  0.468935  0.266634
              Band_2  0.020377  0.978130  0.477189  0.306864
              Band_3  0.019652  0.992184  0.537215  0.286502
              Band_4  0.011955  0.984313  0.503616  0.295852
              >>> print(dataset.stats(band=1))  # doctest: +SKIP
                           min      max      mean       std
              Band_2  0.020377  0.97813  0.477189  0.306864

              ```

            - Get the statistics of all the bands using a mask polygon.

              - Create the polygon using shapely polygon, and use the xmin, ymin, xmax, ymax = [0.1, -0.2,
                0.2 -0.1] to cover the 4 cells.
              ```python
              >>> from shapely.geometry import Polygon
              >>> import geopandas as gpd
              >>> mask = gpd.GeoDataFrame(geometry=[Polygon([(0.1, -0.1), (0.1, -0.2), (0.2, -0.2), (0.2, -0.1)])],crs=4326)
              >>> print(dataset.stats(mask=mask))  # doctest: +SKIP
                           min       max      mean       std
              Band_1  0.193441  0.702108  0.541478  0.202932
              Band_2  0.281281  0.932573  0.665602  0.239410
              Band_3  0.031395  0.982235  0.493086  0.377608
              Band_4  0.079562  0.930965  0.591025  0.341578

              ```

        """
        dst: Dataset | None = None
        if mask is not None:
            dst = self._ds.crop(mask, touch=True)

        if band is None:
            df = pd.DataFrame(
                index=self._ds.band_names,
                columns=["min", "max", "mean", "std"],
                dtype=np.float32,
            )
            for i in range(self._ds.band_count):
                if mask is not None and dst is not None:
                    df.iloc[i, :] = dst.analysis._get_stats(i)
                else:
                    df.iloc[i, :] = self._get_stats(i)
        else:
            df = pd.DataFrame(
                index=[self._ds.band_names[band]],
                columns=["min", "max", "mean", "std"],
                dtype=np.float32,
            )
            if mask is not None and dst is not None:
                df.iloc[0, :] = dst.analysis._get_stats(band)
            else:
                df.iloc[0, :] = self._get_stats(band)

        return df

    def _get_stats(self, band: int | None = None) -> list[float]:
        """_get_stats."""
        band_index = band if band is not None else 0
        band_i = self._ds._iloc(band_index)
        try:
            vals = band_i.GetStatistics(True, True)
        except RuntimeError:
            # when the GetStatistics gives an error "RuntimeError: Failed to compute statistics, no valid pixels
            # found in sampling."
            vals = [0]

        if sum(vals) == 0:
            warnings.warn(
                f"Band {band} has no statistics, and the statistics are going to be calculate"
            )
            vals = band_i.ComputeStatistics(False)

        return list(vals)

    def count_domain_cells(self, band: int = 0) -> int:
        """Count cells inside the domain.

        Args:
            band (int):
                Band index. Default is 0.

        Returns:
            int:
                Number of cells.
        """
        arr = self._ds.read_array(band=band)
        domain_count = np.size(arr[:, :]) - np.count_nonzero(
            arr[is_no_data(arr, self._ds.no_data_value[band])]
        )
        return int(domain_count)

    def apply(self, func, band: int = 0, inplace: bool = False) -> Dataset:
        """Apply a function to all domain cells.

        - apply method executes a mathematical operation on the raster array.
        - The function is applied to all domain cells at once using vectorized NumPy operations.

        Args:
            func (function):
                Defined function that takes one input (the cell value).
            band (int):
                Band number.
            inplace (bool):
                If True, the original dataset will be modified. If False, a new dataset will be created.
                Default is False.

        Returns:
            Dataset:
                A new Dataset with the function applied. If inplace is True, returns self.

        Examples:
            - Create a dataset from an array filled with values between -1 and 1:

              ```python
              >>> import numpy as np
              >>> arr = np.random.uniform(-1, 1, size=(5, 5))
              >>> top_left_corner = (0, 0)
              >>> cell_size = 0.05
              >>> dataset = Dataset.create_from_array(arr, top_left_corner=top_left_corner, cell_size=cell_size, epsg=4326)
              >>> print(dataset.read_array()) # doctest: +SKIP
              [[ 0.94997539 -0.80083622 -0.30948769 -0.77439961 -0.83836424]
               [-0.36810158 -0.23979251  0.88051216 -0.46882913  0.64511056]
               [ 0.50585374 -0.46905902  0.67856589  0.2779605   0.05589759]
               [ 0.63382852 -0.49259597  0.18471423 -0.49308984 -0.52840286]
               [-0.34076174 -0.53073014 -0.18485789 -0.40033474 -0.38962938]]

              ```

            - Apply the absolute function to the dataset:

              ```python
              >>> abs_dataset = dataset.apply(np.abs)
              >>> print(abs_dataset.read_array()) # doctest: +SKIP
              [[0.94997539 0.80083622 0.30948769 0.77439961 0.83836424]
               [0.36810158 0.23979251 0.88051216 0.46882913 0.64511056]
               [0.50585374 0.46905902 0.67856589 0.2779605  0.05589759]
               [0.63382852 0.49259597 0.18471423 0.49308984 0.52840286]
               [0.34076174 0.53073014 0.18485789 0.40033474 0.38962938]]

              ```
        """
        if not callable(func):
            raise TypeError("The second argument should be a function")

        no_data_value = self._ds.no_data_value[band]
        src_array = self._ds.read_array(band)
        dtype = self._ds.gdal_dtype[band]

        new_array = np.full(
            (self._ds.rows, self._ds.columns), no_data_value, dtype=src_array.dtype
        )
        domain_mask = inside_domain(src_array, no_data_value)
        domain_values = src_array[domain_mask]
        try:
            new_array[domain_mask] = func(domain_values)
        except (ValueError, TypeError):
            new_array[domain_mask] = np.vectorize(func)(domain_values)

        dst_obj = self._ds.__class__._build_dataset(
            self._ds.columns,
            self._ds.rows,
            1,
            dtype,
            self._ds.geotransform,
            self._ds.crs,
            no_data_value,
        )
        dst_obj.raster.GetRasterBand(1).WriteArray(new_array)

        if inplace:
            self._ds._update_inplace(dst_obj.raster)
            return None
        return dst_obj

    def fill(
        self, value: float | int, inplace: bool = False, path: str | Path | None = None
    ) -> Dataset:
        """Fill the domain cells with a certain value.

            Fill takes a raster and fills it with one value

        Args:
            value (float | int):
                Numeric value to fill.
            inplace (bool):
                If True, the original dataset will be modified. If False, a new dataset will be created. Default is False.
            path (str):
                Path including the extension (.tif).

        Returns:
            Dataset:
                A new Dataset with cells filled. If inplace is True, returns self.

        Examples:
            - Create a Dataset with 1 band, 5 rows, 5 columns, at the point lon/lat (0, 0):

              ```python
              >>> import numpy as np
              >>> arr = np.random.randint(1, 5, size=(5, 5))
              >>> top_left_corner = (0, 0)
              >>> cell_size = 0.05
              >>> dataset = Dataset.create_from_array(arr, top_left_corner=top_left_corner, cell_size=cell_size, epsg=4326)
              >>> print(dataset.read_array()) # doctest: +SKIP
              [[1 1 3 1 2]
               [2 2 2 1 2]
               [2 2 3 1 3]
               [3 4 3 3 4]
               [4 4 2 1 1]]
              >>> new_dataset = dataset.fill(10)
              >>> print(new_dataset.read_array())
              [[10 10 10 10 10]
               [10 10 10 10 10]
               [10 10 10 10 10]
               [10 10 10 10 10]
               [10 10 10 10 10]]

              ```
        """
        no_data_value = self._ds.no_data_value[0]
        src_array = self._ds.raster.ReadAsArray()

        # rtol=1e-6 is intentionally tighter than the package default
        # (1e-3): `fill` writes user-supplied values into every domain
        # cell, so a too-loose match would clobber legitimate cells that
        # happen to lie within ~0.1% of the no-data sentinel.
        src_array[inside_domain(src_array, no_data_value, rtol=0.000001)] = value

        dst = self._ds.__class__.dataset_like(self._ds, src_array, path=path)
        if inplace:
            self._ds._update_inplace(dst.raster)
            return None
        return dst

    def extract(
        self,
        band: int | None = None,
        exclude_value: Any | None = None,
        mask: FeatureCollection | GeoDataFrame | None = None,
    ) -> np.ndarray:
        """Extract.

        - Extract method gets all the values in a raster, and excludes the values in the exclude_value parameter.
        - If the mask parameter is given, the raster will be clipped to the extent of the given mask and the
          values within the mask are extracted.

        Args:
            band (int, optional):
                Band index. Default is None.
            exclude_value (Numeric, optional):
                Values to exclude from extracted values. If the dataset is multi-band, the values in `exclude_value`
                will be filtered out from the first band only.
            mask (FeatureCollection | GeoDataFrame, optional):
                Vector data containing point geometries at which to extract the values. Default is None.

        Returns:
            np.ndarray:
                The extracted values from each band in the dataset will be in one row in the returned array.

        Examples:
            - Extract all values from the dataset:

              - First, create a dataset with 2 bands, 4 rows and 4 columns:

                ```python
                >>> import numpy as np
                >>> arr = np.random.randint(1, 5, size=(2, 4, 4))
                >>> top_left_corner = (0, 0)
                >>> cell_size = 0.05
                >>> dataset = Dataset.create_from_array(arr, top_left_corner=top_left_corner, cell_size=cell_size, epsg=4326)
                >>> print(dataset)
                <BLANKLINE>
                            Cell size: 0.05
                            Dimension: 4 * 4
                            EPSG: 4326
                            Number of Bands: 2
                            Band names: ['Band_1', 'Band_2']
                            Mask: -9999.0
                            Data type: int32
                            File:...
                <BLANKLINE>
                >>> print(dataset.read_array()) # doctest: +SKIP
                [[[1 3 3 4]
                  [1 4 2 4]
                  [2 4 2 1]
                  [1 3 2 3]]
                 [[3 2 1 3]
                  [4 3 2 2]
                  [2 2 3 4]
                  [1 4 1 4]]]

                ```

              - Now, extract the values in the dataset:

                ```python
                >>> values = dataset.extract()
                >>> print(values) # doctest: +SKIP
                [[1 3 3 4 1 4 2 4 2 4 2 1 1 3 2 3]
                 [3 2 1 3 4 3 2 2 2 2 3 4 1 4 1 4]]

                ```

              - Extract all the values except 2:

                ```python
                >>> values = dataset.extract(exclude_value=2)
                >>> print(values) # doctest: +SKIP

                ```

            - Extract values at the location of the given point geometries:

              ```python
              >>> import geopandas as gpd
              >>> from shapely.geometry import Point
              ```

              - Create the points using shapely and GeoPandas to cover the 4 cells with xmin, ymin, xmax, ymax = [0.1, -0.2, 0.2, -0.1]:

                ```python
                >>> points = gpd.GeoDataFrame(geometry=[Point(0.1, -0.1), Point(0.1, -0.2), Point(0.2, -0.2), Point(0.2, -0.1)],crs=4326)
                >>> values = dataset.extract(mask=points)
                >>> print(values) # doctest: +SKIP
                [[4 3 3 4]
                 [3 4 4 2]]

                ```
        """
        # Optimize: make the read_array return only the array for inside the mask feature, and not to read the whole
        #  raster
        arr = self._ds.read_array(band=band)
        no_data_value = (
            self._ds.no_data_value[0]
            if self._ds.no_data_value[0] is not None
            else np.nan
        )
        if mask is None:
            exclude_list = (
                [no_data_value, exclude_value]
                if exclude_value is not None
                else [no_data_value]
            )
            values = get_pixels2(arr, exclude_list)
        else:
            indices = self._ds.map_to_array_coordinates(mask)
            if arr.ndim > 2:
                values = arr[:, indices[:, 0], indices[:, 1]]
            else:
                values = arr[indices[:, 0], indices[:, 1]]

        return np.asarray(values)

    def _points_to_xy(
        self, points: FeatureCollection | GeoDataFrame | DataFrame
    ) -> np.ndarray:
        """Extract an ``(N, 2)`` float array of ``(x, y)`` coordinates from points.

        Args:
            points: A point :class:`~pyramids.feature.FeatureCollection` /
                :class:`~geopandas.GeoDataFrame`, or a :class:`~pandas.DataFrame`
                carrying ``x`` and ``y`` columns.

        Returns:
            np.ndarray: Coordinates with shape ``(N, 2)`` as ``float``.

        Raises:
            ValueError: A ``DataFrame`` lacking ``x``/``y`` columns.
            TypeError: ``points`` is not a supported type.
        """
        if isinstance(points, FeatureCollection):
            verts = points.with_coordinates()
            return verts.loc[:, ["x", "y"]].to_numpy(dtype=float)
        if isinstance(points, GeoDataFrame):
            verts = FeatureCollection(points).with_coordinates()
            return verts.loc[:, ["x", "y"]].to_numpy(dtype=float)
        if isinstance(points, DataFrame):
            if not all(col in points.columns for col in ("x", "y")):
                raise ValueError(
                    "If the input is a DataFrame, it must have 'x' and 'y' columns."
                )
            return points.loc[:, ["x", "y"]].to_numpy(dtype=float)
        raise TypeError(
            "points must be a FeatureCollection, GeoDataFrame, or DataFrame with "
            f"x/y columns - given {type(points)}."
        )

    def sample(
        self,
        points: FeatureCollection | GeoDataFrame | DataFrame,
        *,
        bands: int | list[int] | None = None,
        masked: bool = False,
        on_out_of_bounds: str = "nodata",
    ) -> np.ndarray:
        """Sample band values at point coordinates.

        The memory- and out-of-bounds-safe counterpart to
        :meth:`extract` with a point mask. Each point is mapped to its
        containing pixel with a **vectorised inverse geotransform** (``O(1)`` per
        point) and read with a **1x1 windowed read** — so a handful of points on
        a multi-gigabyte raster touches only those pixels, never the whole array.
        Points falling outside the raster are handled explicitly instead of being
        silently snapped to the nearest edge cell.

        Args:
            points (FeatureCollection | GeoDataFrame | DataFrame):
                Point locations to sample. A ``FeatureCollection`` /
                ``GeoDataFrame`` with point geometry, or a ``DataFrame`` with
                ``x`` and ``y`` columns. Coordinates must already be in the
                raster's CRS (no reprojection is performed).
            bands (int | list[int] | None):
                Which band(s) to sample, zero-based. ``None`` (default) samples
                every band and returns a ``(n_bands, n_points)`` array; a single
                ``int`` returns a 1-D ``(n_points,)`` array; a list returns a
                ``(len(bands), n_points)`` array in the requested order.
            masked (bool):
                When ``True`` return a :class:`numpy.ma.MaskedArray` with
                out-of-bounds points masked. Defaults to ``False``.
            on_out_of_bounds (str):
                How to treat points outside the raster extent:

                - ``"nodata"`` (default): fill with the band's no-data value
                  (``NaN`` when the band has none).
                - ``"raise"``: raise :class:`OutOfBoundsError`.
                - ``"snap"``: clamp to the nearest edge pixel (the legacy
                  :meth:`extract` behaviour).

        Returns:
            np.ndarray:
                Sampled values, ordered to match ``points``. Shape is
                ``(n_points,)`` for a single ``int`` band, otherwise
                ``(n_bands, n_points)``. A :class:`numpy.ma.MaskedArray` when
                ``masked=True``.

        Raises:
            ValueError: ``on_out_of_bounds`` is not one of the allowed values, or
                ``bands`` references a band outside the raster.
            OutOfBoundsError: ``on_out_of_bounds="raise"`` and a point lies
                outside the raster extent.
            TypeError: ``points`` is not a supported type.

        Examples:
            - Sample a 2-band raster at three points and read the per-band values:
                ```python
                >>> import numpy as np
                >>> from geopandas import GeoDataFrame
                >>> from shapely.geometry import Point
                >>> from pyramids.dataset import Dataset
                >>> arr = np.arange(2 * 5 * 5, dtype="float32").reshape(2, 5, 5)
                >>> ds = Dataset.create_from_array(
                ...     arr, top_left_corner=(0, 5), cell_size=1.0, epsg=4326
                ... )
                >>> pts = GeoDataFrame(
                ...     geometry=[Point(0.5, 4.5), Point(2.5, 2.5)], crs=4326
                ... )
                >>> ds.sample(pts).tolist()
                [[0.0, 12.0], [25.0, 37.0]]

                ```
            - Sample a single band and get a flat array of values:
                ```python
                >>> import numpy as np
                >>> from geopandas import GeoDataFrame
                >>> from shapely.geometry import Point
                >>> from pyramids.dataset import Dataset
                >>> arr = np.arange(25, dtype="float32").reshape(1, 5, 5)
                >>> ds = Dataset.create_from_array(
                ...     arr, top_left_corner=(0, 5), cell_size=1.0, epsg=4326
                ... )
                >>> pts = GeoDataFrame(geometry=[Point(0.5, 4.5), Point(4.5, 0.5)], crs=4326)
                >>> ds.sample(pts, bands=0).tolist()
                [0.0, 24.0]

                ```
            - Points outside the extent become no-data instead of snapping:
                ```python
                >>> import numpy as np
                >>> from geopandas import GeoDataFrame
                >>> from shapely.geometry import Point
                >>> from pyramids.dataset import Dataset
                >>> arr = np.arange(25, dtype="float32").reshape(1, 5, 5)
                >>> ds = Dataset.create_from_array(
                ...     arr, top_left_corner=(0, 5), cell_size=1.0, epsg=4326,
                ...     no_data_value=-9999.0,
                ... )
                >>> pts = GeoDataFrame(geometry=[Point(2.5, 2.5), Point(100, 100)], crs=4326)
                >>> ds.sample(pts, bands=0).tolist()
                [12.0, -9999.0]

                ```
        """
        if on_out_of_bounds not in ("nodata", "raise", "snap"):
            raise ValueError(
                "on_out_of_bounds must be one of 'nodata', 'raise', 'snap'; got "
                f"{on_out_of_bounds!r}."
            )

        band_count = self._ds.band_count
        if bands is None:
            band_list = list(range(band_count))
            squeeze = False
        elif isinstance(bands, int):
            band_list = [bands]
            squeeze = True
        else:
            band_list = list(bands)
            squeeze = False
        for b in band_list:
            if b < 0 or b >= band_count:
                raise ValueError(
                    f"band {b} is out of range for a {band_count}-band dataset."
                )

        xy = self._points_to_xy(points)
        n_points = xy.shape[0]

        x0, dx, rxy, y0, ryx, dy = self._ds.geotransform
        det = dx * dy - rxy * ryx
        delta_x = xy[:, 0] - x0
        delta_y = xy[:, 1] - y0
        col = np.floor((dy * delta_x - rxy * delta_y) / det).astype(int)
        row = np.floor((-ryx * delta_x + dx * delta_y) / det).astype(int)

        n_rows, n_cols = self._ds.rows, self._ds.columns
        out_of_bounds = (row < 0) | (row >= n_rows) | (col < 0) | (col >= n_cols)
        if on_out_of_bounds == "raise" and out_of_bounds.any():
            raise OutOfBoundsError(
                f"{int(out_of_bounds.sum())} of {n_points} points fall outside the "
                "raster extent."
            )
        if on_out_of_bounds == "snap":
            row = np.clip(row, 0, n_rows - 1)
            col = np.clip(col, 0, n_cols - 1)
            out_of_bounds = np.zeros(n_points, dtype=bool)

        in_bounds_idx = np.flatnonzero(~out_of_bounds)
        rows_out: list[np.ndarray] = []
        for b in band_list:
            gdal_band = self._ds.raster.GetRasterBand(b + 1)
            no_data_value = gdal_band.GetNoDataValue()
            band_dtype = np.dtype(gdal_to_numpy_dtype(gdal_band.DataType))
            if no_data_value is None:
                fill: Any = np.nan
                out_dtype = (
                    band_dtype
                    if np.issubdtype(band_dtype, np.floating)
                    else np.dtype("float64")
                )
            else:
                fill = no_data_value
                out_dtype = band_dtype
            band_values = np.full(n_points, fill, dtype=out_dtype)
            for i in in_bounds_idx:
                window = gdal_band.ReadAsArray(int(col[i]), int(row[i]), 1, 1)
                band_values[i] = window[0, 0]
            rows_out.append(band_values)

        stacked = np.vstack(rows_out) if rows_out else np.empty((0, n_points))
        result: np.ndarray = stacked[0] if squeeze else stacked
        if masked:
            mask = out_of_bounds if squeeze else np.broadcast_to(out_of_bounds, result.shape)
            result = np.ma.masked_array(result, mask=np.array(mask))
        return result

    def sieve(
        self,
        threshold: int,
        *,
        band: int = 0,
        connectedness: int = 4,
        mask: Dataset | None = None,
    ) -> Dataset:
        """Remove small pixel clumps with ``gdal.SieveFilter``.

        Raster polygons — connected groups of identical-value pixels — smaller
        than ``threshold`` pixels are dissolved into their largest neighbour.
        This is the standard clean-up for "salt-and-pepper" speckle in
        classification rasters. Implemented natively via GDAL; returns a new
        single-band :class:`~pyramids.dataset.Dataset`.

        Args:
            threshold (int):
                Minimum polygon size to keep, in pixels. Clumps with fewer
                pixels are merged away. Must be ``>= 1``.
            band (int):
                Zero-based index of the band to sieve. Defaults to ``0``.
            connectedness (int):
                Pixel connectivity used to define a clump: ``4`` (edge-adjacent,
                the default) or ``8`` (edge- and diagonal-adjacent).
            mask (Dataset | None):
                Optional single-band mask. Pixels where the mask is zero are
                excluded from sieving. ``None`` (default) uses the source band's
                no-data mask.

        Returns:
            Dataset:
                A new single-band dataset with small clumps removed, sharing the
                source geotransform, CRS, and no-data value.

        Raises:
            ValueError: ``threshold < 1``, ``connectedness`` is not 4 or 8, or
                ``band`` is out of range.

        Examples:
            - Remove an isolated speckle pixel from a classified raster:
                ```python
                >>> import numpy as np
                >>> from pyramids.dataset import Dataset
                >>> arr = np.ones((6, 6), dtype="int32")
                >>> arr[0:3, 0:3] = 2      # a 9-pixel clump (kept)
                >>> arr[5, 5] = 2          # a lone pixel (removed)
                >>> ds = Dataset.create_from_array(
                ...     arr, top_left_corner=(0, 6), cell_size=1.0, epsg=4326
                ... )
                >>> cleaned = ds.sieve(threshold=4).read_array()
                >>> int(cleaned[5, 5])     # merged into the background
                1
                >>> int(cleaned[0, 0])     # large clump survives
                2

                ```
            - 8-connectivity joins diagonal neighbours that 4-connectivity keeps
              separate:
                ```python
                >>> import numpy as np
                >>> from pyramids.dataset import Dataset
                >>> arr = np.ones((5, 5), dtype="int32")
                >>> arr[1, 1] = 2
                >>> arr[2, 2] = 2          # touches (1,1) only diagonally
                >>> ds = Dataset.create_from_array(
                ...     arr, top_left_corner=(0, 5), cell_size=1.0, epsg=4326
                ... )
                >>> int(ds.sieve(threshold=2, connectedness=8).read_array()[1, 1])
                2

                ```
        """
        if threshold < 1:
            raise ValueError(f"threshold must be >= 1, got {threshold}.")
        if connectedness not in (4, 8):
            raise ValueError(f"connectedness must be 4 or 8, got {connectedness}.")
        if band < 0 or band >= self._ds.band_count:
            raise ValueError(
                f"band {band} is out of range for a {self._ds.band_count}-band dataset."
            )

        src_band = self._ds.raster.GetRasterBand(band + 1)
        out_ds = gdal.GetDriverByName("MEM").Create(
            "", self._ds.columns, self._ds.rows, 1, src_band.DataType
        )
        out_ds.SetGeoTransform(self._ds.geotransform)
        out_ds.SetProjection(self._ds.crs)
        dst_band = out_ds.GetRasterBand(1)
        dst_band.WriteArray(src_band.ReadAsArray())
        no_data_value = src_band.GetNoDataValue()
        if no_data_value is not None:
            dst_band.SetNoDataValue(no_data_value)

        mask_band = mask.raster.GetRasterBand(1) if mask is not None else None
        gdal.SieveFilter(dst_band, mask_band, dst_band, threshold, connectedness)
        dst_band.FlushCache()
        return self._ds.__class__(out_ds, access="write")

    def proximity(
        self,
        *,
        band: int = 0,
        target_values: list[int] | None = None,
        distance_units: str = "GEO",
        max_distance: float | None = None,
        nodata: float | None = None,
    ) -> Dataset:
        """Compute per-pixel distance to the nearest target pixel (``gdal.ComputeProximity``).

        The GDAL-native equivalent of ``gdal_proximity``: every output pixel
        holds the Euclidean distance to the closest "target" pixel in the source
        band. Targets are the pixels whose value is in ``target_values`` (or any
        non-zero pixel when ``target_values`` is ``None``). Useful for
        distance-to-coast, distance-to-river, buffer analyses, etc.

        Args:
            band (int):
                Zero-based index of the source band. Defaults to ``0``.
            target_values (list[int] | None):
                Pixel values that count as targets. ``None`` (default) treats
                every non-zero pixel as a target.
            distance_units (str):
                ``"GEO"`` (default) measures distance in the CRS's georeferenced
                units; ``"PIXEL"`` measures it in pixels.
            max_distance (float | None):
                Stop searching beyond this distance. Pixels farther than this get
                ``nodata`` when given, otherwise ``max_distance``. ``None``
                (default) searches the whole raster.
            nodata (float | None):
                Value written to the output band's no-data slot and used to fill
                pixels beyond ``max_distance``. ``None`` (default) sets no
                no-data value.

        Returns:
            Dataset:
                A new single-band ``Float32`` dataset of distances, sharing the
                source geotransform and CRS.

        Raises:
            ValueError: ``distance_units`` is not ``"GEO"``/``"PIXEL"``,
                ``band`` is out of range, or ``max_distance`` is negative.

        Examples:
            - Distance (in pixels) from every cell to a single target pixel:
                ```python
                >>> import numpy as np
                >>> from pyramids.dataset import Dataset
                >>> arr = np.zeros((5, 5), dtype="int32")
                >>> arr[2, 2] = 1
                >>> ds = Dataset.create_from_array(
                ...     arr, top_left_corner=(0, 5), cell_size=1.0, epsg=4326
                ... )
                >>> dist = ds.proximity(distance_units="PIXEL").read_array()
                >>> float(dist[2, 2])      # the target itself
                0.0
                >>> float(dist[2, 0])      # two cells to the left
                2.0

                ```
            - GEO units scale distances by the cell size:
                ```python
                >>> import numpy as np
                >>> from pyramids.dataset import Dataset
                >>> arr = np.zeros((5, 5), dtype="int32")
                >>> arr[2, 2] = 1
                >>> ds = Dataset.create_from_array(
                ...     arr, top_left_corner=(0, 10), cell_size=2.0, epsg=4326
                ... )
                >>> dist = ds.proximity(distance_units="GEO").read_array()
                >>> float(dist[2, 0])      # two cells x 2.0 units
                4.0

                ```
        """
        if distance_units not in ("GEO", "PIXEL"):
            raise ValueError(
                f"distance_units must be 'GEO' or 'PIXEL', got {distance_units!r}."
            )
        if band < 0 or band >= self._ds.band_count:
            raise ValueError(
                f"band {band} is out of range for a {self._ds.band_count}-band dataset."
            )
        if max_distance is not None and max_distance < 0:
            raise ValueError(f"max_distance must be >= 0, got {max_distance}.")

        src_band = self._ds.raster.GetRasterBand(band + 1)
        out_ds = gdal.GetDriverByName("MEM").Create(
            "", self._ds.columns, self._ds.rows, 1, gdal.GDT_Float32
        )
        out_ds.SetGeoTransform(self._ds.geotransform)
        out_ds.SetProjection(self._ds.crs)
        prox_band = out_ds.GetRasterBand(1)

        options = [f"DISTUNITS={distance_units}"]
        if target_values is not None:
            options.append("VALUES=" + ",".join(str(v) for v in target_values))
        if max_distance is not None:
            options.append(f"MAXDIST={max_distance}")
        if nodata is not None:
            options.append(f"NODATA={nodata}")
            prox_band.SetNoDataValue(float(nodata))

        gdal.ComputeProximity(src_band, prox_band, options=options)
        prox_band.FlushCache()
        return self._ds.__class__(out_ds, access="write")

    def overlay(
        self: Dataset,
        classes_map,
        band: int = 0,
        exclude_value: float | int | None = None,
    ) -> dict[float, list[float]]:
        """Overlay.

        Overlay method extracts all the values in the dataset for each class in the given class map.

        Args:
            classes_map (Dataset):
                Dataset object for the raster that has classes you want to overlay with the raster.
            band (int):
                If the raster is multi-band, choose the band you want to overlay with the classes map. Default is 0.
            exclude_value (Numeric, optional):
                Values you want to exclude from extracted values. Default is None.

        Returns:
            Dict:
                Dictionary with class values as keys (from the class map), and for each key a list of all the intersected
                values in the base map.

        Examples:
            - Read the dataset:

              ```python
              >>> dataset = Dataset.read_file("examples/data/geotiff/raster-folder/MSWEP_1979.01.01.tif")
              >>> dataset.plot(figsize=(6, 8)) # doctest: +SKIP

              ```

              ![rhine-rainfall](./../../_images/dataset/rhine-rainfall.png)

            - Read the classes dataset:

              ```python
              >>> classes = Dataset.read_file("examples/data/geotiff/rhine-classes.tif")
              >>> classes.plot(figsize=(6, 8), color_scale="boundary-norm", bounds=[1,2,3,4,5,6]) # doctest: +SKIP

              ```

              ![rhine-classes](./../../_images/dataset/rhine-classes.png)

            - Overlay the dataset with the classes dataset:

              ```python
              >>> classes_dict = dataset.overlay(classes)
              >>> print(classes_dict.keys()) # doctest: +SKIP
              dict_keys([1, 2, 3, 4, 5])

              ```

            - You can use the key `1` to get the values that overlay class 1.
        """
        if not self._ds.spatial._check_alignment(classes_map):
            raise AlignmentError(
                "The class Dataset is not aligned with the current raster, please use the method "
                "'align' to align both rasters."
            )
        arr = self._ds.read_array(band=band)
        no_data_value = (
            self._ds.no_data_value[0]
            if self._ds.no_data_value[0] is not None
            else np.nan
        )
        mask = (
            [no_data_value, exclude_value]
            if exclude_value is not None
            else [no_data_value]
        )
        ind = get_indices2(arr, mask)
        classes = classes_map.read_array()
        values: dict[Any, list[Any]] = dict()

        # extract values
        for i, ind_i in enumerate(ind):
            # first check if the sub-basin has a list in the dict if not create a list
            key = classes[ind_i[0], ind_i[1]]
            if key not in list(values.keys()):
                values[key] = list()

            values[key].append(arr[ind_i[0], ind_i[1]])

        return values

    def get_mask(self, band: int = 0) -> np.ndarray:
        """Get the mask array.

        Args:
            band (int):
                Band index. Default is 0.

        Returns:
            np.ndarray:
                Array of the mask. 0 value for cells out of the domain, and 255 for cells in the domain.
        """
        # TODO: there is a CreateMaskBand method in the gdal.Dataset class, it creates a mask band for the dataset
        #   either internally or externally.
        arr = np.asarray(self._ds._iloc(band).GetMaskBand().ReadAsArray())
        return arr

    def footprint(
        self: Dataset,
        band: int = 0,
        exclude_values: list[Any] | None = None,
    ) -> GeoDataFrame | None:
        """Extract the real coverage of the values in a certain band.

        Args:
            band (int):
                Band index. Default is 0.
            exclude_values (List[Any] | None):
                If you want to exclude a certain value in the raster with another value inter the two values as a
                list of tuples a [(value_to_be_exclude_valuesd, new_value)].

                - Example of exclude_values usage:

                  ```python
                  >>> exclude_values = [0]

                  ```

                - This parameter is introduced particularly in the case of rasters that has the no_data_value stored in
                  the `no_data_value` property does not match the value stored in the band, so this option can correct
                  this behavior.

        Returns:
            GeoDataFrame:
                - geodataframe containing the polygon representing the extent of the raster. the extent column should
                  contain a value of 2 only.
                - if the dataset had separate polygons, each polygon will be in a separate row.

        Examples:
            - The following raster dataset has flood depth stored in its values, and the non-flooded cells are filled with
              zero, so to extract the flood extent, we need to exclude the zero flood depth cells.

              ```python
              >>> dataset = Dataset.read_file("examples/data/geotiff/rhine-flood.tif")
              >>> dataset.plot()
              (<Figure size 800x800 with 2 Axes>, <Axes: >)

              ```

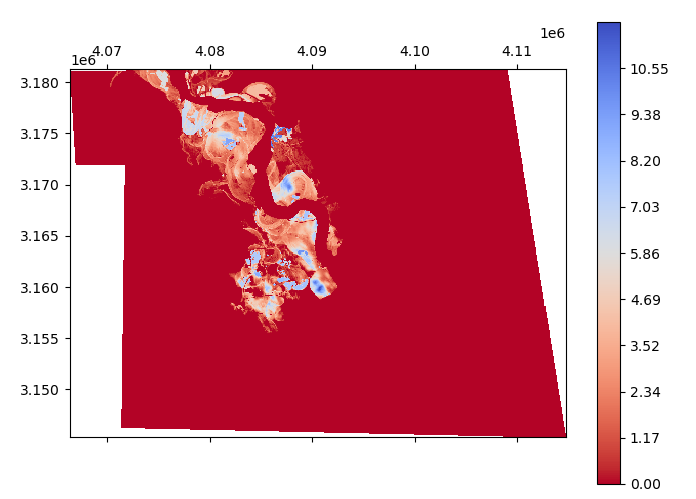

            ![dataset-footprint-rhine-flood](./../../_images/dataset/dataset-footprint-rhine-flood.png)

            - Now, to extract the footprint of the dataset band, we need to specify the `exclude_values` parameter with the
              value of the non-flooded cells.

              ```python
              >>> extent = dataset.footprint(band=0, exclude_values=[0])
              >>> print(extent)
                 Band_1                                           geometry
              0     2.0  POLYGON ((4070974.182 3181069.473, 4070974.182...
              1     2.0  POLYGON ((4077674.182 3181169.473, 4077674.182...
              2     2.0  POLYGON ((4091174.182 3169169.473, 4091174.182...
              3     2.0  POLYGON ((4088574.182 3176269.473, 4088574.182...
              4     2.0  POLYGON ((4082974.182 3167869.473, 4082974.182...
              5     2.0  POLYGON ((4092274.182 3168269.473, 4092274.182...
              6     2.0  POLYGON ((4072474.182 3181169.473, 4072474.182...

              >>> extent.plot()
              <Axes: >

              ```

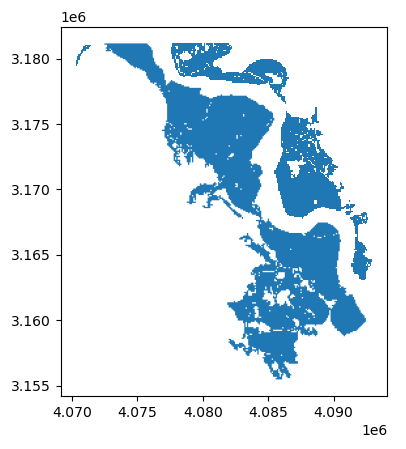

            ![dataset-footprint-rhine-flood-extent](./../../_images/dataset/dataset-footprint-rhine-flood-extent.png)

        """
        arr = self._ds.read_array(band=band)
        no_data_val = self._ds.no_data_value[band]

        if no_data_val is None:
            if not (np.isnan(arr)).any():
                self._ds.logger.warning(
                    "The nodata value stored in the raster does not exist in the raster "
                    "so either the raster extent is all full of data, or the no_data_value stored in the raster is"
                    " not correct"
                )
        else:
            if not (np.isclose(arr, no_data_val, rtol=0.00001)).any():
                self._ds.logger.warning(
                    "the nodata value stored in the raster does not exist in the raster "
                    "so either the raster extent is all full of data, or the no_data_value stored in the raster is"
                    " not correct"
                )
        # if you want to exclude_values any value in the raster
        if exclude_values:
            for val in exclude_values:
                try:
                    # in case the val2 is None, and the array is int type, the following line will give error as None
                    # is considered as float
                    arr[np.isclose(arr, val)] = no_data_val
                except TypeError:
                    arr = arr.astype(np.float32)
                    arr[np.isclose(arr, val)] = no_data_val

        # replace all the values with 2
        if no_data_val is None:
            # check if the whole raster is full of no_data_value
            if (np.isnan(arr)).all():
                self._ds.logger.warning("the raster is full of no_data_value")
                return None

            arr[~np.isnan(arr)] = 2
        else:
            # check if the whole raster is full of no_data_value
            if (np.isclose(arr, no_data_val, rtol=0.00001)).all():
                self._ds.logger.warning("the raster is full of no_data_value")
                return None

            arr[~np.isclose(arr, no_data_val, rtol=0.00001)] = 2
        new_dataset = self._ds.create_from_array(
            arr,
            geo=self._ds.geotransform,
            epsg=self._ds.epsg,
            no_data_value=self._ds.no_data_value,
        )
        # then convert the raster into polygon
        gdf = new_dataset.cluster2(band=band)
        gdf.rename(columns={"Band_1": self._ds.band_names[band]}, inplace=True)

        return gdf

    @staticmethod
    def normalize(array: np.ndarray) -> np.ndarray:
        """Normalize numpy arrays into scale 0.0-1.0.

        Args:
            array (np.ndarray): Numpy array to normalize.

        Returns:
            np.ndarray: Normalized array.
        """
        array_min = array.min()
        array_max = array.max()
        val = (array - array_min) / (array_max - array_min)
        return np.asarray(val)

    @staticmethod
    def _rescale(array: np.ndarray, min_value: float, max_value: float) -> np.ndarray:
        val = (array - min_value) / (max_value - min_value)
        return val

    def get_histogram(
        self: Dataset,
        band: int = 0,
        bins: int = 6,
        min_value: float | None = None,
        max_value: float | None = None,
        include_out_of_range: bool = False,
        approx_ok: bool = False,
    ) -> tuple[list, list[tuple[Any, Any]]]:
        """Get histogram.

        Args:
            band (int, optional):
                Band index. Default is 1.
            bins (int, optional):
                Number of bins. Default is 6.
            min_value (float, optional):
                Minimum value. Default is None.
            max_value (float, optional):
                Maximum value. Default is None.
            include_out_of_range (bool, optional):
                If True, add out-of-range values into the first and last buckets. Default is False.
            approx_ok (bool, optional):
                If True, compute an approximate histogram by using subsampling or overviews. Default is False.

        Returns:
            tuple[list, list[tuple[Any, Any]]]:
                Histogram values and bin edges.

        Hint:
            - The value of the histogram will be stored in an xml file by the name of the raster file with the extension
                of .aux.xml.

            - The content of the file will be like the following:
              ```xml

                  <PAMDataset>
                    <PAMRasterBand band="1">
                      <Description>Band_1</Description>
                      <Histograms>
                        <HistItem>
                          <HistMin>0</HistMin>
                          <HistMax>88</HistMax>
                          <BucketCount>6</BucketCount>
                          <IncludeOutOfRange>0</IncludeOutOfRange>
                          <Approximate>0</Approximate>
                          <HistCounts>75|6|0|4|2|1</HistCounts>
                        </HistItem>
                      </Histograms>
                    </PAMRasterBand>
                  </PAMDataset>

              ```

        Examples:
            - Create `Dataset` consists of 4 bands, 10 rows, 10 columns, at the point lon/lat (0, 0).

              ```python
              >>> import numpy as np
              >>> arr = np.random.randint(1, 12, size=(10, 10))
              >>> print(arr)    # doctest: +SKIP
              [[ 4  1  1  2  6  9  2  5  1  8]
               [ 1 11  5  6  2  5  4  6  6  7]
               [ 5  2 10  4  8 11  4 11 11  1]
               [ 2  3  6  3  1  5 11 10 10  7]
               [ 8  2 11  3  1  3  5  4 10 10]
               [ 1  2  1  6 10  3  6  4  2  8]
               [ 9  5  7  9  7  8  1 11  4  4]
               [ 7  7  2  2  5  3  7  2  9  9]
               [ 2 10  3  2  1 11  5  9  8 11]
               [ 1  5  6 11  3  3  8  1  2  1]]
               >>> top_left_corner = (0, 0)
               >>> cell_size = 0.05
               >>> dataset = Dataset.create_from_array(arr, top_left_corner=top_left_corner, cell_size=cell_size, epsg=4326)

               ```

            - Now, let's get the histogram of the first band using the `get_histogram` method with the default
                parameters:
                ```python
                >>> hist, ranges = dataset.get_histogram(band=0)
                >>> print(hist)  # doctest: +SKIP
                [28, 17, 10, 15, 13, 7]
                >>> print(ranges)   # doctest: +SKIP
                [(1.0, 2.67), (2.67, 4.34), (4.34, 6.0), (6.0, 7.67), (7.67, 9.34), (9.34, 11.0)]

                ```
            - we can also exclude values from the histogram by using the `min_value` and `max_value`:
                ```python
                >>> hist, ranges = dataset.get_histogram(band=0, min_value=5, max_value=10)
                >>> print(hist)  # doctest: +SKIP
                [10, 8, 7, 7, 6, 0]
                >>> print(ranges)   # doctest: +SKIP
                [(1.0, 1.835), (1.835, 2.67), (2.67, 3.5), (3.5, 4.34), (4.34, 5.167), (5.167, 6.0)]

                ```
            - For datasets with big dimensions, computing the histogram can take some time; approximating the computation
                of the histogram can save a lot of computation time. When using the parameter `approx_ok` with a `True`
                value the histogram will be calculated from resampling the band or from the overviews if they exist.
                ```python
                >>> hist, ranges = dataset.get_histogram(band=0, approx_ok=True)
                >>> print(hist)  # doctest: +SKIP
                [28, 17, 10, 15, 13, 7]
                >>> print(ranges)   # doctest: +SKIP
                [(1.0, 2.67), (2.67, 4.34), (4.34, 6.0), (6.0, 7.67), (7.67, 9.34), (9.34, 11.0)]

                ```
            - As you see for small datasets, the approximation of the histogram will be the same as without approximation.

        """
        band_obj = self._ds._iloc(band)
        min_val, max_val = band_obj.ComputeRasterMinMax()
        if min_value is None:
            min_value = min_val
        if max_value is None:
            max_value = max_val

        bin_width = (max_value - min_value) / bins
        ranges = [
            (min_val + i * bin_width, min_val + (i + 1) * bin_width)
            for i in range(bins)
        ]

        hist = band_obj.GetHistogram(
            min=min_value,
            max=max_value,
            buckets=bins,
            include_out_of_range=include_out_of_range,
            approx_ok=approx_ok,
        )
        return hist, ranges

    def plot(
        self,
        band: int,
        exclude_value: Any | None = None,
        rgb: list[int] | None = None,
        surface_reflectance: int | None = None,
        cutoff: list | None = None,
        overview: bool | None = False,
        overview_index: int | None = 0,
        percentile: int | None = None,
        basemap: bool | str | None = None,
        **kwargs: Any,
    ) -> ArrayGlyph:
        """Plot the values/overviews of a given band.

        This is the generic rendering engine. It assumes ``band`` has already been resolved
        by the caller (typically a per-class facade such as :meth:`Dataset.plot` or
        :meth:`NetCDF.plot`). It does **not** apply any band-resolution policy (no RGB
        heuristic, no `ColorInterpretation` lookup, no default-to-zero fallback) \u2014 those
        are dataset-type-specific decisions that belong on the facades.

        The plot function uses the `cleopatra` as a backend to plot the raster data, for more information check
        [ArrayGlyph](https://serapeum-org.github.io/cleopatra/latest/api/array-glyph-class/#cleopatra.array_glyph.ArrayGlyph.plot).

        Implementation note: this method is a thin caller around the
        shared :func:`pyramids.dataset._plot_helpers.render_array`
        helper. It resolves the data (``arr``), extent, exclude value,
        and curvilinear coords from the underlying ``Dataset``, then
        forwards to ``render_array(..., mode="plot", ...)`` for a
        single 2-D slice or ``mode="facet"`` when ``NetCDF.plot``
        injects a pre-built ``_facet_stack`` and ``facet_kwargs``.
        ``DatasetCollection.plot`` reuses the same helper with
        ``mode="animate"``. The shared helper owns the actual
        ``ArrayGlyph`` construction and dispatch — see the module
        docstring of :mod:`pyramids.dataset._plot_helpers` for the
        three-mode contract.

        Args:
            band (int):
                Concrete band index to render. Must be provided \u2014 the engine does not resolve
                bands.
            exclude_value (Any, optional):
                Value to exclude from the plot. Default is None.
            rgb (List[int], optional):
                The indices of the red, green, and blue bands in the `Dataset`. the `rgb` parameter can be a list of
                three values, or a list of four values if the alpha band is also included. Only meaningful for
                Sentinel-style multi-band rasters; pass-through to cleopatra.
            surface_reflectance (int, optional):
                Surface reflectance value for normalizing satellite data, by default None.
                Typically 10000 for Sentinel-2 data.
            cutoff (List, optional):
                clip the range of pixel values for each band. (take only the pixel values from 0 to the value of the cutoff
                and scale them back to between 0 and 1). Default is None.
            overview (bool, optional):
                True if you want to plot the overview. Default is False.
            overview_index (int, optional):
                Index of the overview. Default is 0.
            percentile: int
                The percentile value to be used for scaling.
            basemap (bool or str, optional):
                If True, add an OpenStreetMap basemap underneath the plot. If a string, use it as
                the tile provider name (e.g. "CartoDB.Positron"). Default is None (no basemap).
                Requires the [viz] extra (mercantile, xyzservices, Pillow).
        kwargs:
                | Parameter                   | Type                | Description |
                |-----------------------------|---------------------|-------------|
                | `points`                    | array               | 3 column array with the first column as the value to display for the point, the second as the row index, and the third as the column index in the array. The second and third columns tell the location of the point. |
                | `point_color`               | str                 | Color of the point. |
                | `point_size`                | Any                 | Size of the point. |
                | `pid_color`                 | str                 | Color of the annotation of the point. Default is blue. |
                | `pid_size`                  | Any                 | Size of the point annotation. |
                | `figsize`                   | tuple, optional     | Figure size. Default is `(8, 8)`. |
                | `title`                     | str, optional       | Title of the plot. Default is `'Total Discharge'`. |
                | `title_size`                | int, optional       | Title size. Default is `15`. |
                | `orientation`               | str, optional       | Orientation of the color bar (`horizontal` or `vertical`). Default is `'vertical'`. |
                | `rotation`                  | number, optional    | Rotation of the color bar label. Default is `-90`. |
                | `cbar_length`               | float, optional     | Ratio to control the height of the color bar. Default is `0.75`. |
                | `ticks_spacing`             | int, optional       | Spacing between color bar ticks. Default is `2`. |
                | `cbar_label_size`           | int, optional       | Size of the color bar label. Default is `12`. |
                | `cbar_label`                | str, optional       | Label of the color bar. Default is `'Discharge m\u00b3/s'`. |
                | `color_scale`               | str, optional       | Color-scale mode. One of `"linear"`, `"power"`, `"sym-lognorm"`, `"boundary-norm"`, `"midpoint"` (case-insensitive), or a `cleopatra.styles.ColorScale` member. Integer codes are no longer accepted. Default is `"linear"`. |
                | `gamma`                     | float, optional     | Exponent for the `"power"` color scale. Default is `1/2`. |
                | `line_threshold`            | float, optional     | `linthresh` for the `"sym-lognorm"` color scale. Default is `0.0001`. |
                | `line_scale`                | float, optional     | `linscale` for the `"sym-lognorm"` color scale. Default is `0.001`. |
                | `bounds`                    | list, optional      | Discrete bounds for the `"boundary-norm"` color scale. Default is `None`. |
                | `midpoint`                  | float, optional     | Midpoint value for the `"midpoint"` color scale. Default is `0`. |
                | `cmap`                      | str, optional       | Color map style. Default is `'coolwarm_r'`. |
                | `display_cell_value`        | bool, optional      | Whether to display cell values as text. |
                | `num_size`                  | int, optional       | Size of numbers plotted on top of each cell. Default is `8`. |
                | `background_color_threshold`| float or int, optional | Threshold for deciding text color over cells: if value > threshold -> black text; else white text. If `None`, max value / 2 is used. Default is `None`. |
        Returns:
            ArrayGlyph:
                A cleopatra ``ArrayGlyph`` wrapping the rendered figure. The underlying matplotlib
                primitives are exposed as ``cleo.fig`` (the :class:`matplotlib.figure.Figure`) and
                ``cleo.ax`` (the :class:`matplotlib.axes.Axes`) \u2014 use these as the escape hatch
                when you need to further customise the plot with raw matplotlib calls. For the
                full ``ArrayGlyph`` API see the
                [ArrayGlyph reference](https://serapeum-org.github.io/cleopatra/latest/api/array-glyph-class/).
        Examples:
            - Plot a certain band:
              ```python
              >>> import numpy as np
              >>> arr = np.random.rand(4, 10, 10)
              >>> top_left_corner = (0, 0)
              >>> cell_size = 0.05
              >>> dataset = Dataset.create_from_array(arr, top_left_corner=top_left_corner, cell_size=cell_size,epsg=4326)
              >>> dataset.plot(band=0)
              (<Figure size 800x800 with 2 Axes>, <Axes: >)
              ```
            - plot using power scale.
              ```python
              >>> dataset.plot(band=0, color_scale="power")
              (<Figure size 800x800 with 2 Axes>, <Axes: >)
              ```
            - plot using SymLogNorm scale.
              ```python
              >>> dataset.plot(band=0, color_scale="sym-lognorm")
              (<Figure size 800x800 with 2 Axes>, <Axes: >)
              ```
            - plot using PowerNorm scale.
              ```python
              >>> dataset.plot(band=0, color_scale="boundary-norm", bounds=[0, 0.2, 0.4, 0.6, 0.8, 1])
              (<Figure size 800x800 with 2 Axes>, <Axes: >)
              ```
            - plot using BoundaryNorm scale.
              ```python
              >>> dataset.plot(band=0, color_scale="midpoint")
              (<Figure size 800x800 with 2 Axes>, <Axes: >)
              ```
        """
        no_data_value = [np.nan if i is None else i for i in self._ds.no_data_value]
        # `coords` is the PR-3 curvilinear kwarg; the helper handles the
        # mutually-exclusive `extent` swap. `facet_kwargs` (PR-4) is
        # forwarded by `NetCDF.plot` to switch the helper to the
        # `mode="facet"` branch; the pre-built stack arrives alongside as
        # `_facet_stack` and its spatial extent as `_extent` (the facet
        # stack is *injected*, not read from `self._ds`, so the engine
        # can't derive the extent from `self._ds.bbox` — the caller must
        # supply it). `_chunks` (PR-5) is injected by `NetCDF.plot` to
        # switch the static-plot read path to the dask-backed lazy read;
        # only the rendered slice is materialised.
        coords = kwargs.pop("coords", None)
        facet_kwargs = kwargs.pop("facet_kwargs", None)
        facet_stack = kwargs.pop("_facet_stack", None)
        injected_extent = kwargs.pop("_extent", None)
        chunks = kwargs.pop("_chunks", None)
        mode = "facet" if facet_kwargs else "plot"
        if mode == "facet":
            arr = facet_stack
        elif chunks is not None:
            # Lazy read path: build a dask array of the variable, then
            # materialise only the requested slice via `.compute()`.
            # `read_array(chunks=...)` is only meaningful on NetCDF —
            # plain Dataset doesn't support `chunks`. The kwarg arrives
            # here only because NetCDF.plot injected it, so the call is
            # safe to issue.
            lazy = self._ds.read_array(chunks=chunks)
            if hasattr(lazy, "compute"):
                if lazy.ndim > 2:
                    # `read_array(chunks=...)` returns the variable's
                    # native `(d0, d1, ..., rows, cols)` shape, whereas
                    # the eager `read_array()` flattens the non-spatial
                    # dims into a single bands axis. Match that flatten so
                    # `band` indexes the same slice. The reshape stays
                    # lazy — `read_array(chunks=...)` already chunks the
                    # non-spatial dims at size 1, so it's a pure relabel —
                    # and only the chosen band's chunks get computed.
                    lazy = lazy.reshape(-1, *lazy.shape[-2:])
                    arr = np.asarray(lazy[band].compute())
                else:
                    arr = np.asarray(lazy.compute())
            else:
                arr = lazy if band is None else lazy[band]
        else:
            # When ``rgb`` is supplied, cleopatra's ArrayGlyph needs the full
            # multi-band ``(bands, rows, cols)`` array so it can pick the
            # colour channels itself. In all other cases we render just the
            # requested band as a 2-D array.
            read_band = None if rgb is not None else band
            if overview:
                arr = self._ds.read_overview_array(
                    band=read_band,
                    overview_index=(
                        overview_index if overview_index is not None else 0
                    ),
                )
            else:
                arr = self._ds.read_array(band=read_band)
        exclude_value = (
            [no_data_value[band], exclude_value]
            if exclude_value is not None
            else [no_data_value[band]]
        )
        ax = kwargs.pop("ax", None)
        fig = kwargs.pop("fig", None)
        # On the self-read paths (`mode="plot"` / `_chunks`) the data and
        # the extent both come from `self._ds`. On the injected-stack path
        # (`mode="facet"`) the caller passes `_extent` so the panels are
        # placed at the stack's own spatial domain rather than implicitly
        # trusting that it matches `self._ds.bbox`.
        effective_extent = (
            injected_extent if injected_extent is not None else self._ds.bbox
        )
        return render_array(
            arr=arr,
            extent=effective_extent,
            coords=coords,
            exclude_value=exclude_value,
            rgb=rgb,
            surface_reflectance=surface_reflectance,
            cutoff=cutoff,
            percentile=percentile,
            mode=mode,
            facet_kwargs=facet_kwargs,
            ax=ax,
            fig=fig,
            basemap=basemap,
            basemap_epsg=self._ds.epsg,
            **kwargs,
        )

    @staticmethod
    def _process_color_table(color_table: DataFrame) -> DataFrame:
        require_cleopatra()
        from cleopatra.colors import Colors

        # if the color_table does not contain the red, green, and blue columns, assume it has one column with
        # the color as hex and then, convert the color to rgb.
        if all(elem in color_table.columns for elem in ["red", "green", "blue"]):
            color_df = color_table.loc[:, ["values", "red", "green", "blue"]]
        elif "color" in color_table.columns:
            color = Colors(color_table["color"].tolist())
            color_rgb = color.to_rgb(normalized=False)
            color_df = DataFrame(columns=["values"])
            color_df["values"] = color_table["values"].to_list()
            color_df.loc[:, ["red", "green", "blue"]] = color_rgb
        else:
            raise ValueError(
                f"color_table must contain either red, green, blue, or color columns. given columns are: "
                f"{color_table.columns}"
            )
        if "alpha" not in color_table.columns:
            color_df.loc[:, "alpha"] = 255
        else:
            color_df.loc[:, "alpha"] = color_table["alpha"]
        return color_df

stats(band=None, mask=None)

Get statistics of a band [Min, max, mean, std].

Parameters:

Name	Type	Description	Default
band	int	Band index. If None, the statistics of all bands will be returned.	None
mask	Polygon GeoDataFrame or Dataset	GeodataFrame with a geometry of polygon type.	None

Returns:

Name	Type	Description
DataFrame	DataFrame	DataFrame wit the stats of each band, the dataframe has the following columns [min, max, mean, std], the index of the dataframe is the band names. Min max mean std Band_1 270.369720 270.762299 270.551361 0.154270 Band_2 269.611938 269.744751 269.673645 0.043788 Band_3 273.641479 274.168823 273.953979 0.198447 Band_4 273.991516 274.540344 274.310669 0.205754

Notes

• The value of the stats will be stored in an xml file by the name of the raster file with the extension of .aux.xml.
• The content of the file will be like the following:

    <PAMDataset>
      <PAMRasterBand band="1">
        <Description>Band_1</Description>
        <Metadata>
          <MDI key="RepresentationType">ATHEMATIC</MDI>
          <MDI key="STATISTICS_MAXIMUM">88</MDI>
          <MDI key="STATISTICS_MEAN">7.9662921348315</MDI>
          <MDI key="STATISTICS_MINIMUM">0</MDI>
          <MDI key="STATISTICS_STDDEV">18.294377743948</MDI>
          <MDI key="STATISTICS_VALID_PERCENT">48.9</MDI>
        </Metadata>
      </PAMRasterBand>
    </PAMDataset>

Examples:

• Get the statistics of all bands in the dataset:

>>> import numpy as np
>>> arr = np.random.rand(4, 10, 10)
>>> geotransform = (0, 0.05, 0, 0, 0, -0.05)
>>> dataset = Dataset.create_from_array(arr, geo=geotransform, epsg=4326)
>>> print(dataset.stats()) # doctest: +SKIP
             min       max      mean       std
Band_1  0.006443  0.942943  0.468935  0.266634
Band_2  0.020377  0.978130  0.477189  0.306864
Band_3  0.019652  0.992184  0.537215  0.286502
Band_4  0.011955  0.984313  0.503616  0.295852
>>> print(dataset.stats(band=1))  # doctest: +SKIP
             min      max      mean       std
Band_2  0.020377  0.97813  0.477189  0.306864

• Get the statistics of all the bands using a mask polygon.

• Create the polygon using shapely polygon, and use the xmin, ymin, xmax, ymax = [0.1, -0.2, 0.2 -0.1] to cover the 4 cells.

  >>> from shapely.geometry import Polygon
  >>> import geopandas as gpd
  >>> mask = gpd.GeoDataFrame(geometry=[Polygon([(0.1, -0.1), (0.1, -0.2), (0.2, -0.2), (0.2, -0.1)])],crs=4326)
  >>> print(dataset.stats(mask=mask))  # doctest: +SKIP
               min       max      mean       std
  Band_1  0.193441  0.702108  0.541478  0.202932
  Band_2  0.281281  0.932573  0.665602  0.239410
  Band_3  0.031395  0.982235  0.493086  0.377608
  Band_4  0.079562  0.930965  0.591025  0.341578


Source code in src/pyramids/dataset/engines/analysis.py

def stats(
    self, band: int | None = None, mask: GeoDataFrame | None = None
) -> DataFrame:
    """Get statistics of a band [Min, max, mean, std].

    Args:
        band (int, optional):
            Band index. If None, the statistics of all bands will be returned.
        mask (Polygon GeoDataFrame or Dataset, optional):
            GeodataFrame with a geometry of polygon type.

    Returns:
        DataFrame:
            DataFrame wit the stats of each band, the dataframe has the following columns
            [min, max, mean, std], the index of the dataframe is the band names.

            ```text

                               Min         max        mean       std
                Band_1  270.369720  270.762299  270.551361  0.154270
                Band_2  269.611938  269.744751  269.673645  0.043788
                Band_3  273.641479  274.168823  273.953979  0.198447
                Band_4  273.991516  274.540344  274.310669  0.205754
            ```

    Notes:
        - The value of the stats will be stored in an xml file by the name of the raster file with the extension of
          .aux.xml.
        - The content of the file will be like the following:

          ```xml

              <PAMDataset>
                <PAMRasterBand band="1">
                  <Description>Band_1</Description>
                  <Metadata>
                    <MDI key="RepresentationType">ATHEMATIC</MDI>
                    <MDI key="STATISTICS_MAXIMUM">88</MDI>
                    <MDI key="STATISTICS_MEAN">7.9662921348315</MDI>
                    <MDI key="STATISTICS_MINIMUM">0</MDI>
                    <MDI key="STATISTICS_STDDEV">18.294377743948</MDI>
                    <MDI key="STATISTICS_VALID_PERCENT">48.9</MDI>
                  </Metadata>
                </PAMRasterBand>
              </PAMDataset>

          ```

    Examples:
        - Get the statistics of all bands in the dataset:

          ```python
          >>> import numpy as np
          >>> arr = np.random.rand(4, 10, 10)
          >>> geotransform = (0, 0.05, 0, 0, 0, -0.05)
          >>> dataset = Dataset.create_from_array(arr, geo=geotransform, epsg=4326)
          >>> print(dataset.stats()) # doctest: +SKIP
                       min       max      mean       std
          Band_1  0.006443  0.942943  0.468935  0.266634
          Band_2  0.020377  0.978130  0.477189  0.306864
          Band_3  0.019652  0.992184  0.537215  0.286502
          Band_4  0.011955  0.984313  0.503616  0.295852
          >>> print(dataset.stats(band=1))  # doctest: +SKIP
                       min      max      mean       std
          Band_2  0.020377  0.97813  0.477189  0.306864

          ```

        - Get the statistics of all the bands using a mask polygon.

          - Create the polygon using shapely polygon, and use the xmin, ymin, xmax, ymax = [0.1, -0.2,
            0.2 -0.1] to cover the 4 cells.
          ```python
          >>> from shapely.geometry import Polygon
          >>> import geopandas as gpd
          >>> mask = gpd.GeoDataFrame(geometry=[Polygon([(0.1, -0.1), (0.1, -0.2), (0.2, -0.2), (0.2, -0.1)])],crs=4326)
          >>> print(dataset.stats(mask=mask))  # doctest: +SKIP
                       min       max      mean       std
          Band_1  0.193441  0.702108  0.541478  0.202932
          Band_2  0.281281  0.932573  0.665602  0.239410
          Band_3  0.031395  0.982235  0.493086  0.377608
          Band_4  0.079562  0.930965  0.591025  0.341578

          ```

    """
    dst: Dataset | None = None
    if mask is not None:
        dst = self._ds.crop(mask, touch=True)

    if band is None:
        df = pd.DataFrame(
            index=self._ds.band_names,
            columns=["min", "max", "mean", "std"],
            dtype=np.float32,
        )
        for i in range(self._ds.band_count):
            if mask is not None and dst is not None:
                df.iloc[i, :] = dst.analysis._get_stats(i)
            else:
                df.iloc[i, :] = self._get_stats(i)
    else:
        df = pd.DataFrame(
            index=[self._ds.band_names[band]],
            columns=["min", "max", "mean", "std"],
            dtype=np.float32,
        )
        if mask is not None and dst is not None:
            df.iloc[0, :] = dst.analysis._get_stats(band)
        else:
            df.iloc[0, :] = self._get_stats(band)

    return df

count_domain_cells(band=0)

Count cells inside the domain.

Parameters:

Name	Type	Description	Default
band	int	Band index. Default is 0.	0

Returns:

Name	Type	Description
int	int	Number of cells.

Source code in src/pyramids/dataset/engines/analysis.py

def count_domain_cells(self, band: int = 0) -> int:
    """Count cells inside the domain.

    Args:
        band (int):
            Band index. Default is 0.

    Returns:
        int:
            Number of cells.
    """
    arr = self._ds.read_array(band=band)
    domain_count = np.size(arr[:, :]) - np.count_nonzero(
        arr[is_no_data(arr, self._ds.no_data_value[band])]
    )
    return int(domain_count)

apply(func, band=0, inplace=False)

Apply a function to all domain cells.

• apply method executes a mathematical operation on the raster array.
• The function is applied to all domain cells at once using vectorized NumPy operations.

Parameters:

Name	Type	Description	Default
func	function	Defined function that takes one input (the cell value).	required
band	int	Band number.	0
inplace	bool	If True, the original dataset will be modified. If False, a new dataset will be created. Default is False.	False

Returns:

Name	Type	Description
Dataset	Dataset	A new Dataset with the function applied. If inplace is True, returns self.

Examples:

• Create a dataset from an array filled with values between -1 and 1:

>>> import numpy as np
>>> arr = np.random.uniform(-1, 1, size=(5, 5))
>>> top_left_corner = (0, 0)
>>> cell_size = 0.05
>>> dataset = Dataset.create_from_array(arr, top_left_corner=top_left_corner, cell_size=cell_size, epsg=4326)
>>> print(dataset.read_array()) # doctest: +SKIP
[[ 0.94997539 -0.80083622 -0.30948769 -0.77439961 -0.83836424]
 [-0.36810158 -0.23979251  0.88051216 -0.46882913  0.64511056]
 [ 0.50585374 -0.46905902  0.67856589  0.2779605   0.05589759]
 [ 0.63382852 -0.49259597  0.18471423 -0.49308984 -0.52840286]
 [-0.34076174 -0.53073014 -0.18485789 -0.40033474 -0.38962938]]

• Apply the absolute function to the dataset:

>>> abs_dataset = dataset.apply(np.abs)
>>> print(abs_dataset.read_array()) # doctest: +SKIP
[[0.94997539 0.80083622 0.30948769 0.77439961 0.83836424]
 [0.36810158 0.23979251 0.88051216 0.46882913 0.64511056]
 [0.50585374 0.46905902 0.67856589 0.2779605  0.05589759]
 [0.63382852 0.49259597 0.18471423 0.49308984 0.52840286]
 [0.34076174 0.53073014 0.18485789 0.40033474 0.38962938]]

Source code in src/pyramids/dataset/engines/analysis.py

def apply(self, func, band: int = 0, inplace: bool = False) -> Dataset:
    """Apply a function to all domain cells.

    - apply method executes a mathematical operation on the raster array.
    - The function is applied to all domain cells at once using vectorized NumPy operations.

    Args:
        func (function):
            Defined function that takes one input (the cell value).
        band (int):
            Band number.
        inplace (bool):
            If True, the original dataset will be modified. If False, a new dataset will be created.
            Default is False.

    Returns:
        Dataset:
            A new Dataset with the function applied. If inplace is True, returns self.

    Examples:
        - Create a dataset from an array filled with values between -1 and 1:

          ```python
          >>> import numpy as np
          >>> arr = np.random.uniform(-1, 1, size=(5, 5))
          >>> top_left_corner = (0, 0)
          >>> cell_size = 0.05
          >>> dataset = Dataset.create_from_array(arr, top_left_corner=top_left_corner, cell_size=cell_size, epsg=4326)
          >>> print(dataset.read_array()) # doctest: +SKIP
          [[ 0.94997539 -0.80083622 -0.30948769 -0.77439961 -0.83836424]
           [-0.36810158 -0.23979251  0.88051216 -0.46882913  0.64511056]
           [ 0.50585374 -0.46905902  0.67856589  0.2779605   0.05589759]
           [ 0.63382852 -0.49259597  0.18471423 -0.49308984 -0.52840286]
           [-0.34076174 -0.53073014 -0.18485789 -0.40033474 -0.38962938]]

          ```

        - Apply the absolute function to the dataset:

          ```python
          >>> abs_dataset = dataset.apply(np.abs)
          >>> print(abs_dataset.read_array()) # doctest: +SKIP
          [[0.94997539 0.80083622 0.30948769 0.77439961 0.83836424]
           [0.36810158 0.23979251 0.88051216 0.46882913 0.64511056]
           [0.50585374 0.46905902 0.67856589 0.2779605  0.05589759]
           [0.63382852 0.49259597 0.18471423 0.49308984 0.52840286]
           [0.34076174 0.53073014 0.18485789 0.40033474 0.38962938]]

          ```
    """
    if not callable(func):
        raise TypeError("The second argument should be a function")

    no_data_value = self._ds.no_data_value[band]
    src_array = self._ds.read_array(band)
    dtype = self._ds.gdal_dtype[band]

    new_array = np.full(
        (self._ds.rows, self._ds.columns), no_data_value, dtype=src_array.dtype
    )
    domain_mask = inside_domain(src_array, no_data_value)
    domain_values = src_array[domain_mask]
    try:
        new_array[domain_mask] = func(domain_values)
    except (ValueError, TypeError):
        new_array[domain_mask] = np.vectorize(func)(domain_values)

    dst_obj = self._ds.__class__._build_dataset(
        self._ds.columns,
        self._ds.rows,
        1,
        dtype,
        self._ds.geotransform,
        self._ds.crs,
        no_data_value,
    )
    dst_obj.raster.GetRasterBand(1).WriteArray(new_array)

    if inplace:
        self._ds._update_inplace(dst_obj.raster)
        return None
    return dst_obj

fill(value, inplace=False, path=None)

Fill the domain cells with a certain value.

Fill takes a raster and fills it with one value

Parameters:

Name	Type	Description	Default
value	float | int	Numeric value to fill.	required
inplace	bool	If True, the original dataset will be modified. If False, a new dataset will be created. Default is False.	False
path	str	Path including the extension (.tif).	None

Returns:

Name	Type	Description
Dataset	Dataset	A new Dataset with cells filled. If inplace is True, returns self.

Examples:

• Create a Dataset with 1 band, 5 rows, 5 columns, at the point lon/lat (0, 0):

>>> import numpy as np
>>> arr = np.random.randint(1, 5, size=(5, 5))
>>> top_left_corner = (0, 0)
>>> cell_size = 0.05
>>> dataset = Dataset.create_from_array(arr, top_left_corner=top_left_corner, cell_size=cell_size, epsg=4326)
>>> print(dataset.read_array()) # doctest: +SKIP
[[1 1 3 1 2]
 [2 2 2 1 2]
 [2 2 3 1 3]
 [3 4 3 3 4]
 [4 4 2 1 1]]
>>> new_dataset = dataset.fill(10)
>>> print(new_dataset.read_array())
[[10 10 10 10 10]
 [10 10 10 10 10]
 [10 10 10 10 10]
 [10 10 10 10 10]
 [10 10 10 10 10]]

Source code in src/pyramids/dataset/engines/analysis.py

def fill(
    self, value: float | int, inplace: bool = False, path: str | Path | None = None
) -> Dataset:
    """Fill the domain cells with a certain value.

        Fill takes a raster and fills it with one value

    Args:
        value (float | int):
            Numeric value to fill.
        inplace (bool):
            If True, the original dataset will be modified. If False, a new dataset will be created. Default is False.
        path (str):
            Path including the extension (.tif).

    Returns:
        Dataset:
            A new Dataset with cells filled. If inplace is True, returns self.

    Examples:
        - Create a Dataset with 1 band, 5 rows, 5 columns, at the point lon/lat (0, 0):

          ```python
          >>> import numpy as np
          >>> arr = np.random.randint(1, 5, size=(5, 5))
          >>> top_left_corner = (0, 0)
          >>> cell_size = 0.05
          >>> dataset = Dataset.create_from_array(arr, top_left_corner=top_left_corner, cell_size=cell_size, epsg=4326)
          >>> print(dataset.read_array()) # doctest: +SKIP
          [[1 1 3 1 2]
           [2 2 2 1 2]
           [2 2 3 1 3]
           [3 4 3 3 4]
           [4 4 2 1 1]]
          >>> new_dataset = dataset.fill(10)
          >>> print(new_dataset.read_array())
          [[10 10 10 10 10]
           [10 10 10 10 10]
           [10 10 10 10 10]
           [10 10 10 10 10]
           [10 10 10 10 10]]

          ```
    """
    no_data_value = self._ds.no_data_value[0]
    src_array = self._ds.raster.ReadAsArray()

    # rtol=1e-6 is intentionally tighter than the package default
    # (1e-3): `fill` writes user-supplied values into every domain
    # cell, so a too-loose match would clobber legitimate cells that
    # happen to lie within ~0.1% of the no-data sentinel.
    src_array[inside_domain(src_array, no_data_value, rtol=0.000001)] = value

    dst = self._ds.__class__.dataset_like(self._ds, src_array, path=path)
    if inplace:
        self._ds._update_inplace(dst.raster)
        return None
    return dst

extract(band=None, exclude_value=None, mask=None)

Extract.

• Extract method gets all the values in a raster, and excludes the values in the exclude_value parameter.
• If the mask parameter is given, the raster will be clipped to the extent of the given mask and the values within the mask are extracted.

Parameters:

Name	Type	Description	Default
band	int	Band index. Default is None.	None
exclude_value	Numeric	Values to exclude from extracted values. If the dataset is multi-band, the values in exclude_value will be filtered out from the first band only.	None
mask	FeatureCollection | GeoDataFrame	Vector data containing point geometries at which to extract the values. Default is None.	None

Returns:

Type	Description
ndarray	np.ndarray: The extracted values from each band in the dataset will be in one row in the returned array.

Examples:

• Extract all values from the dataset:

• First, create a dataset with 2 bands, 4 rows and 4 columns:

  >>> import numpy as np
  >>> arr = np.random.randint(1, 5, size=(2, 4, 4))
  >>> top_left_corner = (0, 0)
  >>> cell_size = 0.05
  >>> dataset = Dataset.create_from_array(arr, top_left_corner=top_left_corner, cell_size=cell_size, epsg=4326)
  >>> print(dataset)
  <BLANKLINE>
              Cell size: 0.05
              Dimension: 4 * 4
              EPSG: 4326
              Number of Bands: 2
              Band names: ['Band_1', 'Band_2']
              Mask: -9999.0
              Data type: int32
              File:...
  <BLANKLINE>
  >>> print(dataset.read_array()) # doctest: +SKIP
  [[[1 3 3 4]
    [1 4 2 4]
    [2 4 2 1]
    [1 3 2 3]]
   [[3 2 1 3]
    [4 3 2 2]
    [2 2 3 4]
    [1 4 1 4]]]


• Now, extract the values in the dataset:

  >>> values = dataset.extract()
  >>> print(values) # doctest: +SKIP
  [[1 3 3 4 1 4 2 4 2 4 2 1 1 3 2 3]
   [3 2 1 3 4 3 2 2 2 2 3 4 1 4 1 4]]


• Extract all the values except 2:

  >>> values = dataset.extract(exclude_value=2)
  >>> print(values) # doctest: +SKIP


• Extract values at the location of the given point geometries:

>>> import geopandas as gpd
>>> from shapely.geometry import Point

• Create the points using shapely and GeoPandas to cover the 4 cells with xmin, ymin, xmax, ymax = [0.1, -0.2, 0.2, -0.1]:

  >>> points = gpd.GeoDataFrame(geometry=[Point(0.1, -0.1), Point(0.1, -0.2), Point(0.2, -0.2), Point(0.2, -0.1)],crs=4326)
  >>> values = dataset.extract(mask=points)
  >>> print(values) # doctest: +SKIP
  [[4 3 3 4]
   [3 4 4 2]]


Source code in src/pyramids/dataset/engines/analysis.py

def extract(
    self,
    band: int | None = None,
    exclude_value: Any | None = None,
    mask: FeatureCollection | GeoDataFrame | None = None,
) -> np.ndarray:
    """Extract.

    - Extract method gets all the values in a raster, and excludes the values in the exclude_value parameter.
    - If the mask parameter is given, the raster will be clipped to the extent of the given mask and the
      values within the mask are extracted.

    Args:
        band (int, optional):
            Band index. Default is None.
        exclude_value (Numeric, optional):
            Values to exclude from extracted values. If the dataset is multi-band, the values in `exclude_value`
            will be filtered out from the first band only.
        mask (FeatureCollection | GeoDataFrame, optional):
            Vector data containing point geometries at which to extract the values. Default is None.

    Returns:
        np.ndarray:
            The extracted values from each band in the dataset will be in one row in the returned array.

    Examples:
        - Extract all values from the dataset:

          - First, create a dataset with 2 bands, 4 rows and 4 columns:

            ```python
            >>> import numpy as np
            >>> arr = np.random.randint(1, 5, size=(2, 4, 4))
            >>> top_left_corner = (0, 0)
            >>> cell_size = 0.05
            >>> dataset = Dataset.create_from_array(arr, top_left_corner=top_left_corner, cell_size=cell_size, epsg=4326)
            >>> print(dataset)
            <BLANKLINE>
                        Cell size: 0.05
                        Dimension: 4 * 4
                        EPSG: 4326
                        Number of Bands: 2
                        Band names: ['Band_1', 'Band_2']
                        Mask: -9999.0
                        Data type: int32
                        File:...
            <BLANKLINE>
            >>> print(dataset.read_array()) # doctest: +SKIP
            [[[1 3 3 4]
              [1 4 2 4]
              [2 4 2 1]
              [1 3 2 3]]
             [[3 2 1 3]
              [4 3 2 2]
              [2 2 3 4]
              [1 4 1 4]]]

            ```

          - Now, extract the values in the dataset:

            ```python
            >>> values = dataset.extract()
            >>> print(values) # doctest: +SKIP
            [[1 3 3 4 1 4 2 4 2 4 2 1 1 3 2 3]
             [3 2 1 3 4 3 2 2 2 2 3 4 1 4 1 4]]

            ```

          - Extract all the values except 2:

            ```python
            >>> values = dataset.extract(exclude_value=2)
            >>> print(values) # doctest: +SKIP

            ```

        - Extract values at the location of the given point geometries:

          ```python
          >>> import geopandas as gpd
          >>> from shapely.geometry import Point
          ```

          - Create the points using shapely and GeoPandas to cover the 4 cells with xmin, ymin, xmax, ymax = [0.1, -0.2, 0.2, -0.1]:

            ```python
            >>> points = gpd.GeoDataFrame(geometry=[Point(0.1, -0.1), Point(0.1, -0.2), Point(0.2, -0.2), Point(0.2, -0.1)],crs=4326)
            >>> values = dataset.extract(mask=points)
            >>> print(values) # doctest: +SKIP
            [[4 3 3 4]
             [3 4 4 2]]

            ```
    """
    # Optimize: make the read_array return only the array for inside the mask feature, and not to read the whole
    #  raster
    arr = self._ds.read_array(band=band)
    no_data_value = (
        self._ds.no_data_value[0]
        if self._ds.no_data_value[0] is not None
        else np.nan
    )
    if mask is None:
        exclude_list = (
            [no_data_value, exclude_value]
            if exclude_value is not None
            else [no_data_value]
        )
        values = get_pixels2(arr, exclude_list)
    else:
        indices = self._ds.map_to_array_coordinates(mask)
        if arr.ndim > 2:
            values = arr[:, indices[:, 0], indices[:, 1]]
        else:
            values = arr[indices[:, 0], indices[:, 1]]

    return np.asarray(values)

sample(points, *, bands=None, masked=False, on_out_of_bounds='nodata')

Sample band values at point coordinates.

The memory- and out-of-bounds-safe counterpart to :meth:extract with a point mask. Each point is mapped to its containing pixel with a vectorised inverse geotransform (O(1) per point) and read with a 1x1 windowed read — so a handful of points on a multi-gigabyte raster touches only those pixels, never the whole array. Points falling outside the raster are handled explicitly instead of being silently snapped to the nearest edge cell.

Parameters:

Name	Type	Description	Default
points	FeatureCollection | GeoDataFrame | DataFrame	Point locations to sample. A FeatureCollection / GeoDataFrame with point geometry, or a DataFrame with x and y columns. Coordinates must already be in the raster's CRS (no reprojection is performed).	required
bands	int | list[int] | None	Which band(s) to sample, zero-based. None (default) samples every band and returns a (n_bands, n_points) array; a single int returns a 1-D (n_points,) array; a list returns a (len(bands), n_points) array in the requested order.	None
masked	bool	When True return a :class:numpy.ma.MaskedArray with out-of-bounds points masked. Defaults to False.	False
on_out_of_bounds	str	How to treat points outside the raster extent: "nodata" (default): fill with the band's no-data value (NaN when the band has none). "raise": raise :class:OutOfBoundsError. "snap": clamp to the nearest edge pixel (the legacy :meth:extract behaviour).	'nodata'

Returns:

Type	Description
ndarray	np.ndarray: Sampled values, ordered to match points. Shape is (n_points,) for a single int band, otherwise (n_bands, n_points). A :class:numpy.ma.MaskedArray when masked=True.

Raises:

Type	Description
ValueError	on_out_of_bounds is not one of the allowed values, or bands references a band outside the raster.
OutOfBoundsError	on_out_of_bounds="raise" and a point lies outside the raster extent.
TypeError	points is not a supported type.

Examples:

• Sample a 2-band raster at three points and read the per-band values:

  >>> import numpy as np
  >>> from geopandas import GeoDataFrame
  >>> from shapely.geometry import Point
  >>> from pyramids.dataset import Dataset
  >>> arr = np.arange(2 * 5 * 5, dtype="float32").reshape(2, 5, 5)
  >>> ds = Dataset.create_from_array(
  ...     arr, top_left_corner=(0, 5), cell_size=1.0, epsg=4326
  ... )
  >>> pts = GeoDataFrame(
  ...     geometry=[Point(0.5, 4.5), Point(2.5, 2.5)], crs=4326
  ... )
  >>> ds.sample(pts).tolist()
  [[0.0, 12.0], [25.0, 37.0]]


• Sample a single band and get a flat array of values:

  >>> import numpy as np
  >>> from geopandas import GeoDataFrame
  >>> from shapely.geometry import Point
  >>> from pyramids.dataset import Dataset
  >>> arr = np.arange(25, dtype="float32").reshape(1, 5, 5)
  >>> ds = Dataset.create_from_array(
  ...     arr, top_left_corner=(0, 5), cell_size=1.0, epsg=4326
  ... )
  >>> pts = GeoDataFrame(geometry=[Point(0.5, 4.5), Point(4.5, 0.5)], crs=4326)
  >>> ds.sample(pts, bands=0).tolist()
  [0.0, 24.0]


• Points outside the extent become no-data instead of snapping:

  >>> import numpy as np
  >>> from geopandas import GeoDataFrame
  >>> from shapely.geometry import Point
  >>> from pyramids.dataset import Dataset
  >>> arr = np.arange(25, dtype="float32").reshape(1, 5, 5)
  >>> ds = Dataset.create_from_array(
  ...     arr, top_left_corner=(0, 5), cell_size=1.0, epsg=4326,
  ...     no_data_value=-9999.0,
  ... )
  >>> pts = GeoDataFrame(geometry=[Point(2.5, 2.5), Point(100, 100)], crs=4326)
  >>> ds.sample(pts, bands=0).tolist()
  [12.0, -9999.0]


Source code in src/pyramids/dataset/engines/analysis.py

def sample(
    self,
    points: FeatureCollection | GeoDataFrame | DataFrame,
    *,
    bands: int | list[int] | None = None,
    masked: bool = False,
    on_out_of_bounds: str = "nodata",
) -> np.ndarray:
    """Sample band values at point coordinates.

    The memory- and out-of-bounds-safe counterpart to
    :meth:`extract` with a point mask. Each point is mapped to its
    containing pixel with a **vectorised inverse geotransform** (``O(1)`` per
    point) and read with a **1x1 windowed read** — so a handful of points on
    a multi-gigabyte raster touches only those pixels, never the whole array.
    Points falling outside the raster are handled explicitly instead of being
    silently snapped to the nearest edge cell.

    Args:
        points (FeatureCollection | GeoDataFrame | DataFrame):
            Point locations to sample. A ``FeatureCollection`` /
            ``GeoDataFrame`` with point geometry, or a ``DataFrame`` with
            ``x`` and ``y`` columns. Coordinates must already be in the
            raster's CRS (no reprojection is performed).
        bands (int | list[int] | None):
            Which band(s) to sample, zero-based. ``None`` (default) samples
            every band and returns a ``(n_bands, n_points)`` array; a single
            ``int`` returns a 1-D ``(n_points,)`` array; a list returns a
            ``(len(bands), n_points)`` array in the requested order.
        masked (bool):
            When ``True`` return a :class:`numpy.ma.MaskedArray` with
            out-of-bounds points masked. Defaults to ``False``.
        on_out_of_bounds (str):
            How to treat points outside the raster extent:

            - ``"nodata"`` (default): fill with the band's no-data value
              (``NaN`` when the band has none).
            - ``"raise"``: raise :class:`OutOfBoundsError`.
            - ``"snap"``: clamp to the nearest edge pixel (the legacy
              :meth:`extract` behaviour).

    Returns:
        np.ndarray:
            Sampled values, ordered to match ``points``. Shape is
            ``(n_points,)`` for a single ``int`` band, otherwise
            ``(n_bands, n_points)``. A :class:`numpy.ma.MaskedArray` when
            ``masked=True``.

    Raises:
        ValueError: ``on_out_of_bounds`` is not one of the allowed values, or
            ``bands`` references a band outside the raster.
        OutOfBoundsError: ``on_out_of_bounds="raise"`` and a point lies
            outside the raster extent.
        TypeError: ``points`` is not a supported type.

    Examples:
        - Sample a 2-band raster at three points and read the per-band values:
            ```python
            >>> import numpy as np
            >>> from geopandas import GeoDataFrame
            >>> from shapely.geometry import Point
            >>> from pyramids.dataset import Dataset
            >>> arr = np.arange(2 * 5 * 5, dtype="float32").reshape(2, 5, 5)
            >>> ds = Dataset.create_from_array(
            ...     arr, top_left_corner=(0, 5), cell_size=1.0, epsg=4326
            ... )
            >>> pts = GeoDataFrame(
            ...     geometry=[Point(0.5, 4.5), Point(2.5, 2.5)], crs=4326
            ... )
            >>> ds.sample(pts).tolist()
            [[0.0, 12.0], [25.0, 37.0]]

            ```
        - Sample a single band and get a flat array of values:
            ```python
            >>> import numpy as np
            >>> from geopandas import GeoDataFrame
            >>> from shapely.geometry import Point
            >>> from pyramids.dataset import Dataset
            >>> arr = np.arange(25, dtype="float32").reshape(1, 5, 5)
            >>> ds = Dataset.create_from_array(
            ...     arr, top_left_corner=(0, 5), cell_size=1.0, epsg=4326
            ... )
            >>> pts = GeoDataFrame(geometry=[Point(0.5, 4.5), Point(4.5, 0.5)], crs=4326)
            >>> ds.sample(pts, bands=0).tolist()
            [0.0, 24.0]

            ```
        - Points outside the extent become no-data instead of snapping:
            ```python
            >>> import numpy as np
            >>> from geopandas import GeoDataFrame
            >>> from shapely.geometry import Point
            >>> from pyramids.dataset import Dataset
            >>> arr = np.arange(25, dtype="float32").reshape(1, 5, 5)
            >>> ds = Dataset.create_from_array(
            ...     arr, top_left_corner=(0, 5), cell_size=1.0, epsg=4326,
            ...     no_data_value=-9999.0,
            ... )
            >>> pts = GeoDataFrame(geometry=[Point(2.5, 2.5), Point(100, 100)], crs=4326)
            >>> ds.sample(pts, bands=0).tolist()
            [12.0, -9999.0]

            ```
    """
    if on_out_of_bounds not in ("nodata", "raise", "snap"):
        raise ValueError(
            "on_out_of_bounds must be one of 'nodata', 'raise', 'snap'; got "
            f"{on_out_of_bounds!r}."
        )

    band_count = self._ds.band_count
    if bands is None:
        band_list = list(range(band_count))
        squeeze = False
    elif isinstance(bands, int):
        band_list = [bands]
        squeeze = True
    else:
        band_list = list(bands)
        squeeze = False
    for b in band_list:
        if b < 0 or b >= band_count:
            raise ValueError(
                f"band {b} is out of range for a {band_count}-band dataset."
            )

    xy = self._points_to_xy(points)
    n_points = xy.shape[0]

    x0, dx, rxy, y0, ryx, dy = self._ds.geotransform
    det = dx * dy - rxy * ryx
    delta_x = xy[:, 0] - x0
    delta_y = xy[:, 1] - y0
    col = np.floor((dy * delta_x - rxy * delta_y) / det).astype(int)
    row = np.floor((-ryx * delta_x + dx * delta_y) / det).astype(int)

    n_rows, n_cols = self._ds.rows, self._ds.columns
    out_of_bounds = (row < 0) | (row >= n_rows) | (col < 0) | (col >= n_cols)
    if on_out_of_bounds == "raise" and out_of_bounds.any():
        raise OutOfBoundsError(
            f"{int(out_of_bounds.sum())} of {n_points} points fall outside the "
            "raster extent."
        )
    if on_out_of_bounds == "snap":
        row = np.clip(row, 0, n_rows - 1)
        col = np.clip(col, 0, n_cols - 1)
        out_of_bounds = np.zeros(n_points, dtype=bool)

    in_bounds_idx = np.flatnonzero(~out_of_bounds)
    rows_out: list[np.ndarray] = []
    for b in band_list:
        gdal_band = self._ds.raster.GetRasterBand(b + 1)
        no_data_value = gdal_band.GetNoDataValue()
        band_dtype = np.dtype(gdal_to_numpy_dtype(gdal_band.DataType))
        if no_data_value is None:
            fill: Any = np.nan
            out_dtype = (
                band_dtype
                if np.issubdtype(band_dtype, np.floating)
                else np.dtype("float64")
            )
        else:
            fill = no_data_value
            out_dtype = band_dtype
        band_values = np.full(n_points, fill, dtype=out_dtype)
        for i in in_bounds_idx:
            window = gdal_band.ReadAsArray(int(col[i]), int(row[i]), 1, 1)
            band_values[i] = window[0, 0]
        rows_out.append(band_values)

    stacked = np.vstack(rows_out) if rows_out else np.empty((0, n_points))
    result: np.ndarray = stacked[0] if squeeze else stacked
    if masked:
        mask = out_of_bounds if squeeze else np.broadcast_to(out_of_bounds, result.shape)
        result = np.ma.masked_array(result, mask=np.array(mask))
    return result

sieve(threshold, *, band=0, connectedness=4, mask=None)

Remove small pixel clumps with gdal.SieveFilter.

Raster polygons — connected groups of identical-value pixels — smaller than threshold pixels are dissolved into their largest neighbour. This is the standard clean-up for "salt-and-pepper" speckle in classification rasters. Implemented natively via GDAL; returns a new single-band :class:~pyramids.dataset.Dataset.

Parameters:

Name	Type	Description	Default
threshold	int	Minimum polygon size to keep, in pixels. Clumps with fewer pixels are merged away. Must be >= 1.	required
band	int	Zero-based index of the band to sieve. Defaults to 0.	0
connectedness	int	Pixel connectivity used to define a clump: 4 (edge-adjacent, the default) or 8 (edge- and diagonal-adjacent).	4
mask	Dataset | None	Optional single-band mask. Pixels where the mask is zero are excluded from sieving. None (default) uses the source band's no-data mask.	None

Returns:

Name	Type	Description
Dataset	Dataset	A new single-band dataset with small clumps removed, sharing the source geotransform, CRS, and no-data value.

Raises:

Type	Description
ValueError	threshold < 1, connectedness is not 4 or 8, or band is out of range.

Examples:

• Remove an isolated speckle pixel from a classified raster:

  >>> import numpy as np
  >>> from pyramids.dataset import Dataset
  >>> arr = np.ones((6, 6), dtype="int32")
  >>> arr[0:3, 0:3] = 2      # a 9-pixel clump (kept)
  >>> arr[5, 5] = 2          # a lone pixel (removed)
  >>> ds = Dataset.create_from_array(
  ...     arr, top_left_corner=(0, 6), cell_size=1.0, epsg=4326
  ... )
  >>> cleaned = ds.sieve(threshold=4).read_array()
  >>> int(cleaned[5, 5])     # merged into the background
  1
  >>> int(cleaned[0, 0])     # large clump survives
  2


• 8-connectivity joins diagonal neighbours that 4-connectivity keeps separate:

  >>> import numpy as np
  >>> from pyramids.dataset import Dataset
  >>> arr = np.ones((5, 5), dtype="int32")
  >>> arr[1, 1] = 2
  >>> arr[2, 2] = 2          # touches (1,1) only diagonally
  >>> ds = Dataset.create_from_array(
  ...     arr, top_left_corner=(0, 5), cell_size=1.0, epsg=4326
  ... )
  >>> int(ds.sieve(threshold=2, connectedness=8).read_array()[1, 1])
  2


Source code in src/pyramids/dataset/engines/analysis.py

def sieve(
    self,
    threshold: int,
    *,
    band: int = 0,
    connectedness: int = 4,
    mask: Dataset | None = None,
) -> Dataset:
    """Remove small pixel clumps with ``gdal.SieveFilter``.

    Raster polygons — connected groups of identical-value pixels — smaller
    than ``threshold`` pixels are dissolved into their largest neighbour.
    This is the standard clean-up for "salt-and-pepper" speckle in
    classification rasters. Implemented natively via GDAL; returns a new
    single-band :class:`~pyramids.dataset.Dataset`.

    Args:
        threshold (int):
            Minimum polygon size to keep, in pixels. Clumps with fewer
            pixels are merged away. Must be ``>= 1``.
        band (int):
            Zero-based index of the band to sieve. Defaults to ``0``.
        connectedness (int):
            Pixel connectivity used to define a clump: ``4`` (edge-adjacent,
            the default) or ``8`` (edge- and diagonal-adjacent).
        mask (Dataset | None):
            Optional single-band mask. Pixels where the mask is zero are
            excluded from sieving. ``None`` (default) uses the source band's
            no-data mask.

    Returns:
        Dataset:
            A new single-band dataset with small clumps removed, sharing the
            source geotransform, CRS, and no-data value.

    Raises:
        ValueError: ``threshold < 1``, ``connectedness`` is not 4 or 8, or
            ``band`` is out of range.

    Examples:
        - Remove an isolated speckle pixel from a classified raster:
            ```python
            >>> import numpy as np
            >>> from pyramids.dataset import Dataset
            >>> arr = np.ones((6, 6), dtype="int32")
            >>> arr[0:3, 0:3] = 2      # a 9-pixel clump (kept)
            >>> arr[5, 5] = 2          # a lone pixel (removed)
            >>> ds = Dataset.create_from_array(
            ...     arr, top_left_corner=(0, 6), cell_size=1.0, epsg=4326
            ... )
            >>> cleaned = ds.sieve(threshold=4).read_array()
            >>> int(cleaned[5, 5])     # merged into the background
            1
            >>> int(cleaned[0, 0])     # large clump survives
            2

            ```
        - 8-connectivity joins diagonal neighbours that 4-connectivity keeps
          separate:
            ```python
            >>> import numpy as np
            >>> from pyramids.dataset import Dataset
            >>> arr = np.ones((5, 5), dtype="int32")
            >>> arr[1, 1] = 2
            >>> arr[2, 2] = 2          # touches (1,1) only diagonally
            >>> ds = Dataset.create_from_array(
            ...     arr, top_left_corner=(0, 5), cell_size=1.0, epsg=4326
            ... )
            >>> int(ds.sieve(threshold=2, connectedness=8).read_array()[1, 1])
            2

            ```
    """
    if threshold < 1:
        raise ValueError(f"threshold must be >= 1, got {threshold}.")
    if connectedness not in (4, 8):
        raise ValueError(f"connectedness must be 4 or 8, got {connectedness}.")
    if band < 0 or band >= self._ds.band_count:
        raise ValueError(
            f"band {band} is out of range for a {self._ds.band_count}-band dataset."
        )

    src_band = self._ds.raster.GetRasterBand(band + 1)
    out_ds = gdal.GetDriverByName("MEM").Create(
        "", self._ds.columns, self._ds.rows, 1, src_band.DataType
    )
    out_ds.SetGeoTransform(self._ds.geotransform)
    out_ds.SetProjection(self._ds.crs)
    dst_band = out_ds.GetRasterBand(1)
    dst_band.WriteArray(src_band.ReadAsArray())
    no_data_value = src_band.GetNoDataValue()
    if no_data_value is not None:
        dst_band.SetNoDataValue(no_data_value)

    mask_band = mask.raster.GetRasterBand(1) if mask is not None else None
    gdal.SieveFilter(dst_band, mask_band, dst_band, threshold, connectedness)
    dst_band.FlushCache()
    return self._ds.__class__(out_ds, access="write")

proximity(*, band=0, target_values=None, distance_units='GEO', max_distance=None, nodata=None)

Compute per-pixel distance to the nearest target pixel (gdal.ComputeProximity).

The GDAL-native equivalent of gdal_proximity: every output pixel holds the Euclidean distance to the closest "target" pixel in the source band. Targets are the pixels whose value is in target_values (or any non-zero pixel when target_values is None). Useful for distance-to-coast, distance-to-river, buffer analyses, etc.

Parameters:

Name	Type	Description	Default
band	int	Zero-based index of the source band. Defaults to 0.	0
target_values	list[int] | None	Pixel values that count as targets. None (default) treats every non-zero pixel as a target.	None
distance_units	str	"GEO" (default) measures distance in the CRS's georeferenced units; "PIXEL" measures it in pixels.	'GEO'
max_distance	float | None	Stop searching beyond this distance. Pixels farther than this get nodata when given, otherwise max_distance. None (default) searches the whole raster.	None
nodata	float | None	Value written to the output band's no-data slot and used to fill pixels beyond max_distance. None (default) sets no no-data value.	None

Returns:

Name	Type	Description
Dataset	Dataset	A new single-band Float32 dataset of distances, sharing the source geotransform and CRS.

Raises:

Type	Description
ValueError	distance_units is not "GEO"/"PIXEL", band is out of range, or max_distance is negative.

Examples:

• Distance (in pixels) from every cell to a single target pixel:

  >>> import numpy as np
  >>> from pyramids.dataset import Dataset
  >>> arr = np.zeros((5, 5), dtype="int32")
  >>> arr[2, 2] = 1
  >>> ds = Dataset.create_from_array(
  ...     arr, top_left_corner=(0, 5), cell_size=1.0, epsg=4326
  ... )
  >>> dist = ds.proximity(distance_units="PIXEL").read_array()
  >>> float(dist[2, 2])      # the target itself
  0.0
  >>> float(dist[2, 0])      # two cells to the left
  2.0


• GEO units scale distances by the cell size:

  >>> import numpy as np
  >>> from pyramids.dataset import Dataset
  >>> arr = np.zeros((5, 5), dtype="int32")
  >>> arr[2, 2] = 1
  >>> ds = Dataset.create_from_array(
  ...     arr, top_left_corner=(0, 10), cell_size=2.0, epsg=4326
  ... )
  >>> dist = ds.proximity(distance_units="GEO").read_array()
  >>> float(dist[2, 0])      # two cells x 2.0 units
  4.0


Source code in src/pyramids/dataset/engines/analysis.py

def proximity(
    self,
    *,
    band: int = 0,
    target_values: list[int] | None = None,
    distance_units: str = "GEO",
    max_distance: float | None = None,
    nodata: float | None = None,
) -> Dataset:
    """Compute per-pixel distance to the nearest target pixel (``gdal.ComputeProximity``).

    The GDAL-native equivalent of ``gdal_proximity``: every output pixel
    holds the Euclidean distance to the closest "target" pixel in the source
    band. Targets are the pixels whose value is in ``target_values`` (or any
    non-zero pixel when ``target_values`` is ``None``). Useful for
    distance-to-coast, distance-to-river, buffer analyses, etc.

    Args:
        band (int):
            Zero-based index of the source band. Defaults to ``0``.
        target_values (list[int] | None):
            Pixel values that count as targets. ``None`` (default) treats
            every non-zero pixel as a target.
        distance_units (str):
            ``"GEO"`` (default) measures distance in the CRS's georeferenced
            units; ``"PIXEL"`` measures it in pixels.
        max_distance (float | None):
            Stop searching beyond this distance. Pixels farther than this get
            ``nodata`` when given, otherwise ``max_distance``. ``None``
            (default) searches the whole raster.
        nodata (float | None):
            Value written to the output band's no-data slot and used to fill
            pixels beyond ``max_distance``. ``None`` (default) sets no
            no-data value.

    Returns:
        Dataset:
            A new single-band ``Float32`` dataset of distances, sharing the
            source geotransform and CRS.

    Raises:
        ValueError: ``distance_units`` is not ``"GEO"``/``"PIXEL"``,
            ``band`` is out of range, or ``max_distance`` is negative.

    Examples:
        - Distance (in pixels) from every cell to a single target pixel:
            ```python
            >>> import numpy as np
            >>> from pyramids.dataset import Dataset
            >>> arr = np.zeros((5, 5), dtype="int32")
            >>> arr[2, 2] = 1
            >>> ds = Dataset.create_from_array(
            ...     arr, top_left_corner=(0, 5), cell_size=1.0, epsg=4326
            ... )
            >>> dist = ds.proximity(distance_units="PIXEL").read_array()
            >>> float(dist[2, 2])      # the target itself
            0.0
            >>> float(dist[2, 0])      # two cells to the left
            2.0

            ```
        - GEO units scale distances by the cell size:
            ```python
            >>> import numpy as np
            >>> from pyramids.dataset import Dataset
            >>> arr = np.zeros((5, 5), dtype="int32")
            >>> arr[2, 2] = 1
            >>> ds = Dataset.create_from_array(
            ...     arr, top_left_corner=(0, 10), cell_size=2.0, epsg=4326
            ... )
            >>> dist = ds.proximity(distance_units="GEO").read_array()
            >>> float(dist[2, 0])      # two cells x 2.0 units
            4.0

            ```
    """
    if distance_units not in ("GEO", "PIXEL"):
        raise ValueError(
            f"distance_units must be 'GEO' or 'PIXEL', got {distance_units!r}."
        )
    if band < 0 or band >= self._ds.band_count:
        raise ValueError(
            f"band {band} is out of range for a {self._ds.band_count}-band dataset."
        )
    if max_distance is not None and max_distance < 0:
        raise ValueError(f"max_distance must be >= 0, got {max_distance}.")

    src_band = self._ds.raster.GetRasterBand(band + 1)
    out_ds = gdal.GetDriverByName("MEM").Create(
        "", self._ds.columns, self._ds.rows, 1, gdal.GDT_Float32
    )
    out_ds.SetGeoTransform(self._ds.geotransform)
    out_ds.SetProjection(self._ds.crs)
    prox_band = out_ds.GetRasterBand(1)

    options = [f"DISTUNITS={distance_units}"]
    if target_values is not None:
        options.append("VALUES=" + ",".join(str(v) for v in target_values))
    if max_distance is not None:
        options.append(f"MAXDIST={max_distance}")
    if nodata is not None:
        options.append(f"NODATA={nodata}")
        prox_band.SetNoDataValue(float(nodata))

    gdal.ComputeProximity(src_band, prox_band, options=options)
    prox_band.FlushCache()
    return self._ds.__class__(out_ds, access="write")

overlay(classes_map, band=0, exclude_value=None)

Overlay.

Overlay method extracts all the values in the dataset for each class in the given class map.

Parameters:

Name	Type	Description	Default
classes_map	Dataset	Dataset object for the raster that has classes you want to overlay with the raster.	required
band	int	If the raster is multi-band, choose the band you want to overlay with the classes map. Default is 0.	0
exclude_value	Numeric	Values you want to exclude from extracted values. Default is None.	None

Returns:

Name	Type	Description
Dict	dict[float, list[float]]	Dictionary with class values as keys (from the class map), and for each key a list of all the intersected values in the base map.

Examples:

• Read the dataset:

>>> dataset = Dataset.read_file("examples/data/geotiff/raster-folder/MSWEP_1979.01.01.tif")
>>> dataset.plot(figsize=(6, 8)) # doctest: +SKIP

• Read the classes dataset:

>>> classes = Dataset.read_file("examples/data/geotiff/rhine-classes.tif")
>>> classes.plot(figsize=(6, 8), color_scale="boundary-norm", bounds=[1,2,3,4,5,6]) # doctest: +SKIP

• Overlay the dataset with the classes dataset:

>>> classes_dict = dataset.overlay(classes)
>>> print(classes_dict.keys()) # doctest: +SKIP
dict_keys([1, 2, 3, 4, 5])

• You can use the key 1 to get the values that overlay class 1.

Source code in src/pyramids/dataset/engines/analysis.py

def overlay(
    self: Dataset,
    classes_map,
    band: int = 0,
    exclude_value: float | int | None = None,
) -> dict[float, list[float]]:
    """Overlay.

    Overlay method extracts all the values in the dataset for each class in the given class map.

    Args:
        classes_map (Dataset):
            Dataset object for the raster that has classes you want to overlay with the raster.
        band (int):
            If the raster is multi-band, choose the band you want to overlay with the classes map. Default is 0.
        exclude_value (Numeric, optional):
            Values you want to exclude from extracted values. Default is None.

    Returns:
        Dict:
            Dictionary with class values as keys (from the class map), and for each key a list of all the intersected
            values in the base map.

    Examples:
        - Read the dataset:

          ```python
          >>> dataset = Dataset.read_file("examples/data/geotiff/raster-folder/MSWEP_1979.01.01.tif")
          >>> dataset.plot(figsize=(6, 8)) # doctest: +SKIP

          ```

          ![rhine-rainfall](./../../_images/dataset/rhine-rainfall.png)

        - Read the classes dataset:

          ```python
          >>> classes = Dataset.read_file("examples/data/geotiff/rhine-classes.tif")
          >>> classes.plot(figsize=(6, 8), color_scale="boundary-norm", bounds=[1,2,3,4,5,6]) # doctest: +SKIP

          ```

          ![rhine-classes](./../../_images/dataset/rhine-classes.png)

        - Overlay the dataset with the classes dataset:

          ```python
          >>> classes_dict = dataset.overlay(classes)
          >>> print(classes_dict.keys()) # doctest: +SKIP
          dict_keys([1, 2, 3, 4, 5])

          ```

        - You can use the key `1` to get the values that overlay class 1.
    """
    if not self._ds.spatial._check_alignment(classes_map):
        raise AlignmentError(
            "The class Dataset is not aligned with the current raster, please use the method "
            "'align' to align both rasters."
        )
    arr = self._ds.read_array(band=band)
    no_data_value = (
        self._ds.no_data_value[0]
        if self._ds.no_data_value[0] is not None
        else np.nan
    )
    mask = (
        [no_data_value, exclude_value]
        if exclude_value is not None
        else [no_data_value]
    )
    ind = get_indices2(arr, mask)
    classes = classes_map.read_array()
    values: dict[Any, list[Any]] = dict()

    # extract values
    for i, ind_i in enumerate(ind):
        # first check if the sub-basin has a list in the dict if not create a list
        key = classes[ind_i[0], ind_i[1]]
        if key not in list(values.keys()):
            values[key] = list()

        values[key].append(arr[ind_i[0], ind_i[1]])

    return values

get_mask(band=0)

Get the mask array.

Parameters:

Name	Type	Description	Default
band	int	Band index. Default is 0.	0

Returns:

Type	Description
ndarray	np.ndarray: Array of the mask. 0 value for cells out of the domain, and 255 for cells in the domain.

Source code in src/pyramids/dataset/engines/analysis.py

def get_mask(self, band: int = 0) -> np.ndarray:
    """Get the mask array.

    Args:
        band (int):
            Band index. Default is 0.

    Returns:
        np.ndarray:
            Array of the mask. 0 value for cells out of the domain, and 255 for cells in the domain.
    """
    # TODO: there is a CreateMaskBand method in the gdal.Dataset class, it creates a mask band for the dataset
    #   either internally or externally.
    arr = np.asarray(self._ds._iloc(band).GetMaskBand().ReadAsArray())
    return arr

footprint(band=0, exclude_values=None)

Extract the real coverage of the values in a certain band.

Parameters:

Name	Type	Description	Default
band	int	Band index. Default is 0.	0
exclude_values	List[Any] | None	If you want to exclude a certain value in the raster with another value inter the two values as a list of tuples a [(value_to_be_exclude_valuesd, new_value)]. Example of exclude_values usage: >>> exclude_values = [0] This parameter is introduced particularly in the case of rasters that has the no_data_value stored in the no_data_value property does not match the value stored in the band, so this option can correct this behavior.	None

Returns:

Name	Type	Description
GeoDataFrame	GeoDataFrame | None	geodataframe containing the polygon representing the extent of the raster. the extent column should contain a value of 2 only. if the dataset had separate polygons, each polygon will be in a separate row.

Examples:

• The following raster dataset has flood depth stored in its values, and the non-flooded cells are filled with zero, so to extract the flood extent, we need to exclude the zero flood depth cells.

>>> dataset = Dataset.read_file("examples/data/geotiff/rhine-flood.tif")
>>> dataset.plot()
(<Figure size 800x800 with 2 Axes>, <Axes: >)

• Now, to extract the footprint of the dataset band, we need to specify the exclude_values parameter with the value of the non-flooded cells.

>>> extent = dataset.footprint(band=0, exclude_values=[0])
>>> print(extent)
   Band_1                                           geometry
0     2.0  POLYGON ((4070974.182 3181069.473, 4070974.182...
1     2.0  POLYGON ((4077674.182 3181169.473, 4077674.182...
2     2.0  POLYGON ((4091174.182 3169169.473, 4091174.182...
3     2.0  POLYGON ((4088574.182 3176269.473, 4088574.182...
4     2.0  POLYGON ((4082974.182 3167869.473, 4082974.182...
5     2.0  POLYGON ((4092274.182 3168269.473, 4092274.182...
6     2.0  POLYGON ((4072474.182 3181169.473, 4072474.182...

>>> extent.plot()
<Axes: >

Source code in src/pyramids/dataset/engines/analysis.py

def footprint(
    self: Dataset,
    band: int = 0,
    exclude_values: list[Any] | None = None,
) -> GeoDataFrame | None:
    """Extract the real coverage of the values in a certain band.

    Args:
        band (int):
            Band index. Default is 0.
        exclude_values (List[Any] | None):
            If you want to exclude a certain value in the raster with another value inter the two values as a
            list of tuples a [(value_to_be_exclude_valuesd, new_value)].

            - Example of exclude_values usage:

              ```python
              >>> exclude_values = [0]

              ```

            - This parameter is introduced particularly in the case of rasters that has the no_data_value stored in
              the `no_data_value` property does not match the value stored in the band, so this option can correct
              this behavior.

    Returns:
        GeoDataFrame:
            - geodataframe containing the polygon representing the extent of the raster. the extent column should
              contain a value of 2 only.
            - if the dataset had separate polygons, each polygon will be in a separate row.

    Examples:
        - The following raster dataset has flood depth stored in its values, and the non-flooded cells are filled with
          zero, so to extract the flood extent, we need to exclude the zero flood depth cells.

          ```python
          >>> dataset = Dataset.read_file("examples/data/geotiff/rhine-flood.tif")
          >>> dataset.plot()
          (<Figure size 800x800 with 2 Axes>, <Axes: >)

          ```

        ![dataset-footprint-rhine-flood](./../../_images/dataset/dataset-footprint-rhine-flood.png)

        - Now, to extract the footprint of the dataset band, we need to specify the `exclude_values` parameter with the
          value of the non-flooded cells.

          ```python
          >>> extent = dataset.footprint(band=0, exclude_values=[0])
          >>> print(extent)
             Band_1                                           geometry
          0     2.0  POLYGON ((4070974.182 3181069.473, 4070974.182...
          1     2.0  POLYGON ((4077674.182 3181169.473, 4077674.182...
          2     2.0  POLYGON ((4091174.182 3169169.473, 4091174.182...
          3     2.0  POLYGON ((4088574.182 3176269.473, 4088574.182...
          4     2.0  POLYGON ((4082974.182 3167869.473, 4082974.182...
          5     2.0  POLYGON ((4092274.182 3168269.473, 4092274.182...
          6     2.0  POLYGON ((4072474.182 3181169.473, 4072474.182...

          >>> extent.plot()
          <Axes: >

          ```

        ![dataset-footprint-rhine-flood-extent](./../../_images/dataset/dataset-footprint-rhine-flood-extent.png)

    """
    arr = self._ds.read_array(band=band)
    no_data_val = self._ds.no_data_value[band]

    if no_data_val is None:
        if not (np.isnan(arr)).any():
            self._ds.logger.warning(
                "The nodata value stored in the raster does not exist in the raster "
                "so either the raster extent is all full of data, or the no_data_value stored in the raster is"
                " not correct"
            )
    else:
        if not (np.isclose(arr, no_data_val, rtol=0.00001)).any():
            self._ds.logger.warning(
                "the nodata value stored in the raster does not exist in the raster "
                "so either the raster extent is all full of data, or the no_data_value stored in the raster is"
                " not correct"
            )
    # if you want to exclude_values any value in the raster
    if exclude_values:
        for val in exclude_values:
            try:
                # in case the val2 is None, and the array is int type, the following line will give error as None
                # is considered as float
                arr[np.isclose(arr, val)] = no_data_val
            except TypeError:
                arr = arr.astype(np.float32)
                arr[np.isclose(arr, val)] = no_data_val

    # replace all the values with 2
    if no_data_val is None:
        # check if the whole raster is full of no_data_value
        if (np.isnan(arr)).all():
            self._ds.logger.warning("the raster is full of no_data_value")
            return None

        arr[~np.isnan(arr)] = 2
    else:
        # check if the whole raster is full of no_data_value
        if (np.isclose(arr, no_data_val, rtol=0.00001)).all():
            self._ds.logger.warning("the raster is full of no_data_value")
            return None

        arr[~np.isclose(arr, no_data_val, rtol=0.00001)] = 2
    new_dataset = self._ds.create_from_array(
        arr,
        geo=self._ds.geotransform,
        epsg=self._ds.epsg,
        no_data_value=self._ds.no_data_value,
    )
    # then convert the raster into polygon
    gdf = new_dataset.cluster2(band=band)
    gdf.rename(columns={"Band_1": self._ds.band_names[band]}, inplace=True)

    return gdf

normalize(array) staticmethod

Normalize numpy arrays into scale 0.0-1.0.

Parameters:

Name	Type	Description	Default
array	ndarray	Numpy array to normalize.	required

Returns:

Type	Description
ndarray	np.ndarray: Normalized array.

Source code in src/pyramids/dataset/engines/analysis.py

@staticmethod
def normalize(array: np.ndarray) -> np.ndarray:
    """Normalize numpy arrays into scale 0.0-1.0.

    Args:
        array (np.ndarray): Numpy array to normalize.

    Returns:
        np.ndarray: Normalized array.
    """
    array_min = array.min()
    array_max = array.max()
    val = (array - array_min) / (array_max - array_min)
    return np.asarray(val)

get_histogram(band=0, bins=6, min_value=None, max_value=None, include_out_of_range=False, approx_ok=False)

Get histogram.

Parameters:

Name	Type	Description	Default
band	int	Band index. Default is 1.	0
bins	int	Number of bins. Default is 6.	6
min_value	float	Minimum value. Default is None.	None
max_value	float	Maximum value. Default is None.	None
include_out_of_range	bool	If True, add out-of-range values into the first and last buckets. Default is False.	False
approx_ok	bool	If True, compute an approximate histogram by using subsampling or overviews. Default is False.	False

Returns:

Type	Description
tuple[list, list[tuple[Any, Any]]]	tuple[list, list[tuple[Any, Any]]]: Histogram values and bin edges.

Hint

• The value of the histogram will be stored in an xml file by the name of the raster file with the extension of .aux.xml.

• The content of the file will be like the following:

      <PAMDataset>
        <PAMRasterBand band="1">
          <Description>Band_1</Description>
          <Histograms>
            <HistItem>
              <HistMin>0</HistMin>
              <HistMax>88</HistMax>
              <BucketCount>6</BucketCount>
              <IncludeOutOfRange>0</IncludeOutOfRange>
              <Approximate>0</Approximate>
              <HistCounts>75|6|0|4|2|1</HistCounts>
            </HistItem>
          </Histograms>
        </PAMRasterBand>
      </PAMDataset>


Examples:

• Create Dataset consists of 4 bands, 10 rows, 10 columns, at the point lon/lat (0, 0).

```python

import numpy as np arr = np.random.randint(1, 12, size=(10, 10)) print(arr) # doctest: +SKIP [[ 4 1 1 2 6 9 2 5 1 8] [ 1 11 5 6 2 5 4 6 6 7] [ 5 2 10 4 8 11 4 11 11 1] [ 2 3 6 3 1 5 11 10 10 7] [ 8 2 11 3 1 3 5 4 10 10] [ 1 2 1 6 10 3 6 4 2 8] [ 9 5 7 9 7 8 1 11 4 4] [ 7 7 2 2 5 3 7 2 9 9] [ 2 10 3 2 1 11 5 9 8 11] [ 1 5 6 11 3 3 8 1 2 1]] top_left_corner = (0, 0) cell_size = 0.05 dataset = Dataset.create_from_array(arr, top_left_corner=top_left_corner, cell_size=cell_size, epsg=4326)

```

• Now, let's get the histogram of the first band using the get_histogram method with the default parameters:

  >>> hist, ranges = dataset.get_histogram(band=0)
  >>> print(hist)  # doctest: +SKIP
  [28, 17, 10, 15, 13, 7]
  >>> print(ranges)   # doctest: +SKIP
  [(1.0, 2.67), (2.67, 4.34), (4.34, 6.0), (6.0, 7.67), (7.67, 9.34), (9.34, 11.0)]


• we can also exclude values from the histogram by using the min_value and max_value:

  >>> hist, ranges = dataset.get_histogram(band=0, min_value=5, max_value=10)
  >>> print(hist)  # doctest: +SKIP
  [10, 8, 7, 7, 6, 0]
  >>> print(ranges)   # doctest: +SKIP
  [(1.0, 1.835), (1.835, 2.67), (2.67, 3.5), (3.5, 4.34), (4.34, 5.167), (5.167, 6.0)]


• For datasets with big dimensions, computing the histogram can take some time; approximating the computation of the histogram can save a lot of computation time. When using the parameter approx_ok with a True value the histogram will be calculated from resampling the band or from the overviews if they exist.

  >>> hist, ranges = dataset.get_histogram(band=0, approx_ok=True)
  >>> print(hist)  # doctest: +SKIP
  [28, 17, 10, 15, 13, 7]
  >>> print(ranges)   # doctest: +SKIP
  [(1.0, 2.67), (2.67, 4.34), (4.34, 6.0), (6.0, 7.67), (7.67, 9.34), (9.34, 11.0)]


• As you see for small datasets, the approximation of the histogram will be the same as without approximation.

Source code in src/pyramids/dataset/engines/analysis.py

def get_histogram(
    self: Dataset,
    band: int = 0,
    bins: int = 6,
    min_value: float | None = None,
    max_value: float | None = None,
    include_out_of_range: bool = False,
    approx_ok: bool = False,
) -> tuple[list, list[tuple[Any, Any]]]:
    """Get histogram.

    Args:
        band (int, optional):
            Band index. Default is 1.
        bins (int, optional):
            Number of bins. Default is 6.
        min_value (float, optional):
            Minimum value. Default is None.
        max_value (float, optional):
            Maximum value. Default is None.
        include_out_of_range (bool, optional):
            If True, add out-of-range values into the first and last buckets. Default is False.
        approx_ok (bool, optional):
            If True, compute an approximate histogram by using subsampling or overviews. Default is False.

    Returns:
        tuple[list, list[tuple[Any, Any]]]:
            Histogram values and bin edges.

    Hint:
        - The value of the histogram will be stored in an xml file by the name of the raster file with the extension
            of .aux.xml.

        - The content of the file will be like the following:
          ```xml

              <PAMDataset>
                <PAMRasterBand band="1">
                  <Description>Band_1</Description>
                  <Histograms>
                    <HistItem>
                      <HistMin>0</HistMin>
                      <HistMax>88</HistMax>
                      <BucketCount>6</BucketCount>
                      <IncludeOutOfRange>0</IncludeOutOfRange>
                      <Approximate>0</Approximate>
                      <HistCounts>75|6|0|4|2|1</HistCounts>
                    </HistItem>
                  </Histograms>
                </PAMRasterBand>
              </PAMDataset>

          ```

    Examples:
        - Create `Dataset` consists of 4 bands, 10 rows, 10 columns, at the point lon/lat (0, 0).

          ```python
          >>> import numpy as np
          >>> arr = np.random.randint(1, 12, size=(10, 10))
          >>> print(arr)    # doctest: +SKIP
          [[ 4  1  1  2  6  9  2  5  1  8]
           [ 1 11  5  6  2  5  4  6  6  7]
           [ 5  2 10  4  8 11  4 11 11  1]
           [ 2  3  6  3  1  5 11 10 10  7]
           [ 8  2 11  3  1  3  5  4 10 10]
           [ 1  2  1  6 10  3  6  4  2  8]
           [ 9  5  7  9  7  8  1 11  4  4]
           [ 7  7  2  2  5  3  7  2  9  9]
           [ 2 10  3  2  1 11  5  9  8 11]
           [ 1  5  6 11  3  3  8  1  2  1]]
           >>> top_left_corner = (0, 0)
           >>> cell_size = 0.05
           >>> dataset = Dataset.create_from_array(arr, top_left_corner=top_left_corner, cell_size=cell_size, epsg=4326)

           ```

        - Now, let's get the histogram of the first band using the `get_histogram` method with the default
            parameters:
            ```python
            >>> hist, ranges = dataset.get_histogram(band=0)
            >>> print(hist)  # doctest: +SKIP
            [28, 17, 10, 15, 13, 7]
            >>> print(ranges)   # doctest: +SKIP
            [(1.0, 2.67), (2.67, 4.34), (4.34, 6.0), (6.0, 7.67), (7.67, 9.34), (9.34, 11.0)]

            ```
        - we can also exclude values from the histogram by using the `min_value` and `max_value`:
            ```python
            >>> hist, ranges = dataset.get_histogram(band=0, min_value=5, max_value=10)
            >>> print(hist)  # doctest: +SKIP
            [10, 8, 7, 7, 6, 0]
            >>> print(ranges)   # doctest: +SKIP
            [(1.0, 1.835), (1.835, 2.67), (2.67, 3.5), (3.5, 4.34), (4.34, 5.167), (5.167, 6.0)]

            ```
        - For datasets with big dimensions, computing the histogram can take some time; approximating the computation
            of the histogram can save a lot of computation time. When using the parameter `approx_ok` with a `True`
            value the histogram will be calculated from resampling the band or from the overviews if they exist.
            ```python
            >>> hist, ranges = dataset.get_histogram(band=0, approx_ok=True)
            >>> print(hist)  # doctest: +SKIP
            [28, 17, 10, 15, 13, 7]
            >>> print(ranges)   # doctest: +SKIP
            [(1.0, 2.67), (2.67, 4.34), (4.34, 6.0), (6.0, 7.67), (7.67, 9.34), (9.34, 11.0)]

            ```
        - As you see for small datasets, the approximation of the histogram will be the same as without approximation.

    """
    band_obj = self._ds._iloc(band)
    min_val, max_val = band_obj.ComputeRasterMinMax()
    if min_value is None:
        min_value = min_val
    if max_value is None:
        max_value = max_val

    bin_width = (max_value - min_value) / bins
    ranges = [
        (min_val + i * bin_width, min_val + (i + 1) * bin_width)
        for i in range(bins)
    ]

    hist = band_obj.GetHistogram(
        min=min_value,
        max=max_value,
        buckets=bins,
        include_out_of_range=include_out_of_range,
        approx_ok=approx_ok,
    )
    return hist, ranges

plot(band, exclude_value=None, rgb=None, surface_reflectance=None, cutoff=None, overview=False, overview_index=0, percentile=None, basemap=None, **kwargs)

Plot the values/overviews of a given band.

This is the generic rendering engine. It assumes band has already been resolved by the caller (typically a per-class facade such as :meth:Dataset.plot or :meth:NetCDF.plot). It does not apply any band-resolution policy (no RGB heuristic, no ColorInterpretation lookup, no default-to-zero fallback) — those are dataset-type-specific decisions that belong on the facades.

The plot function uses the cleopatra as a backend to plot the raster data, for more information check ArrayGlyph.

Implementation note: this method is a thin caller around the shared :func:pyramids.dataset._plot_helpers.render_array helper. It resolves the data (arr), extent, exclude value, and curvilinear coords from the underlying Dataset, then forwards to render_array(..., mode="plot", ...) for a single 2-D slice or mode="facet" when NetCDF.plot injects a pre-built _facet_stack and facet_kwargs. DatasetCollection.plot reuses the same helper with mode="animate". The shared helper owns the actual ArrayGlyph construction and dispatch — see the module docstring of :mod:pyramids.dataset._plot_helpers for the three-mode contract.

Parameters:

Name	Type	Description	Default
band	int	Concrete band index to render. Must be provided — the engine does not resolve bands.	required
exclude_value	Any	Value to exclude from the plot. Default is None.	None
rgb	List[int]	The indices of the red, green, and blue bands in the Dataset. the rgb parameter can be a list of three values, or a list of four values if the alpha band is also included. Only meaningful for Sentinel-style multi-band rasters; pass-through to cleopatra.	None
surface_reflectance	int	Surface reflectance value for normalizing satellite data, by default None. Typically 10000 for Sentinel-2 data.	None
cutoff	List	clip the range of pixel values for each band. (take only the pixel values from 0 to the value of the cutoff and scale them back to between 0 and 1). Default is None.	None
overview	bool	True if you want to plot the overview. Default is False.	False
overview_index	int	Index of the overview. Default is 0.	0
percentile	int | None	int The percentile value to be used for scaling.	None
basemap	bool or str	If True, add an OpenStreetMap basemap underneath the plot. If a string, use it as the tile provider name (e.g. "CartoDB.Positron"). Default is None (no basemap). Requires the [viz] extra (mercantile, xyzservices, Pillow).	None

kwargs: | Parameter | Type | Description | |-----------------------------|---------------------|-------------| | points | array | 3 column array with the first column as the value to display for the point, the second as the row index, and the third as the column index in the array. The second and third columns tell the location of the point. | | point_color | str | Color of the point. | | point_size | Any | Size of the point. | | pid_color | str | Color of the annotation of the point. Default is blue. | | pid_size | Any | Size of the point annotation. | | figsize | tuple, optional | Figure size. Default is (8, 8). | | title | str, optional | Title of the plot. Default is 'Total Discharge'. | | title_size | int, optional | Title size. Default is 15. | | orientation | str, optional | Orientation of the color bar (horizontal or vertical). Default is 'vertical'. | | rotation | number, optional | Rotation of the color bar label. Default is -90. | | cbar_length | float, optional | Ratio to control the height of the color bar. Default is 0.75. | | ticks_spacing | int, optional | Spacing between color bar ticks. Default is 2. | | cbar_label_size | int, optional | Size of the color bar label. Default is 12. | | cbar_label | str, optional | Label of the color bar. Default is 'Discharge m³/s'. | | color_scale | str, optional | Color-scale mode. One of "linear", "power", "sym-lognorm", "boundary-norm", "midpoint" (case-insensitive), or a cleopatra.styles.ColorScale member. Integer codes are no longer accepted. Default is "linear". | | gamma | float, optional | Exponent for the "power" color scale. Default is 1/2. | | line_threshold | float, optional | linthresh for the "sym-lognorm" color scale. Default is 0.0001. | | line_scale | float, optional | linscale for the "sym-lognorm" color scale. Default is 0.001. | | bounds | list, optional | Discrete bounds for the "boundary-norm" color scale. Default is None. | | midpoint | float, optional | Midpoint value for the "midpoint" color scale. Default is 0. | | cmap | str, optional | Color map style. Default is 'coolwarm_r'. | | display_cell_value | bool, optional | Whether to display cell values as text. | | num_size | int, optional | Size of numbers plotted on top of each cell. Default is 8. | | background_color_threshold| float or int, optional | Threshold for deciding text color over cells: if value > threshold -> black text; else white text. If None, max value / 2 is used. Default is None. | Returns: ArrayGlyph: A cleopatra ArrayGlyph wrapping the rendered figure. The underlying matplotlib primitives are exposed as cleo.fig (the :class:matplotlib.figure.Figure) and cleo.ax (the :class:matplotlib.axes.Axes) — use these as the escape hatch when you need to further customise the plot with raw matplotlib calls. For the full ArrayGlyph API see the ArrayGlyph reference. Examples: - Plot a certain band:

>>> import numpy as np
>>> arr = np.random.rand(4, 10, 10)
>>> top_left_corner = (0, 0)
>>> cell_size = 0.05
>>> dataset = Dataset.create_from_array(arr, top_left_corner=top_left_corner, cell_size=cell_size,epsg=4326)
>>> dataset.plot(band=0)
(<Figure size 800x800 with 2 Axes>, <Axes: >)

- plot using power scale.

>>> dataset.plot(band=0, color_scale="power")
(<Figure size 800x800 with 2 Axes>, <Axes: >)

- plot using SymLogNorm scale.

>>> dataset.plot(band=0, color_scale="sym-lognorm")
(<Figure size 800x800 with 2 Axes>, <Axes: >)

- plot using PowerNorm scale.

>>> dataset.plot(band=0, color_scale="boundary-norm", bounds=[0, 0.2, 0.4, 0.6, 0.8, 1])
(<Figure size 800x800 with 2 Axes>, <Axes: >)

- plot using BoundaryNorm scale.

>>> dataset.plot(band=0, color_scale="midpoint")
(<Figure size 800x800 with 2 Axes>, <Axes: >)

Source code in src/pyramids/dataset/engines/analysis.py

def plot(
    self,
    band: int,
    exclude_value: Any | None = None,
    rgb: list[int] | None = None,
    surface_reflectance: int | None = None,
    cutoff: list | None = None,
    overview: bool | None = False,
    overview_index: int | None = 0,
    percentile: int | None = None,
    basemap: bool | str | None = None,
    **kwargs: Any,
) -> ArrayGlyph:
    """Plot the values/overviews of a given band.

    This is the generic rendering engine. It assumes ``band`` has already been resolved
    by the caller (typically a per-class facade such as :meth:`Dataset.plot` or
    :meth:`NetCDF.plot`). It does **not** apply any band-resolution policy (no RGB
    heuristic, no `ColorInterpretation` lookup, no default-to-zero fallback) \u2014 those
    are dataset-type-specific decisions that belong on the facades.

    The plot function uses the `cleopatra` as a backend to plot the raster data, for more information check
    [ArrayGlyph](https://serapeum-org.github.io/cleopatra/latest/api/array-glyph-class/#cleopatra.array_glyph.ArrayGlyph.plot).

    Implementation note: this method is a thin caller around the
    shared :func:`pyramids.dataset._plot_helpers.render_array`
    helper. It resolves the data (``arr``), extent, exclude value,
    and curvilinear coords from the underlying ``Dataset``, then
    forwards to ``render_array(..., mode="plot", ...)`` for a
    single 2-D slice or ``mode="facet"`` when ``NetCDF.plot``
    injects a pre-built ``_facet_stack`` and ``facet_kwargs``.
    ``DatasetCollection.plot`` reuses the same helper with
    ``mode="animate"``. The shared helper owns the actual
    ``ArrayGlyph`` construction and dispatch — see the module
    docstring of :mod:`pyramids.dataset._plot_helpers` for the
    three-mode contract.

    Args:
        band (int):
            Concrete band index to render. Must be provided \u2014 the engine does not resolve
            bands.
        exclude_value (Any, optional):
            Value to exclude from the plot. Default is None.
        rgb (List[int], optional):
            The indices of the red, green, and blue bands in the `Dataset`. the `rgb` parameter can be a list of
            three values, or a list of four values if the alpha band is also included. Only meaningful for
            Sentinel-style multi-band rasters; pass-through to cleopatra.
        surface_reflectance (int, optional):
            Surface reflectance value for normalizing satellite data, by default None.
            Typically 10000 for Sentinel-2 data.
        cutoff (List, optional):
            clip the range of pixel values for each band. (take only the pixel values from 0 to the value of the cutoff
            and scale them back to between 0 and 1). Default is None.
        overview (bool, optional):
            True if you want to plot the overview. Default is False.
        overview_index (int, optional):
            Index of the overview. Default is 0.
        percentile: int
            The percentile value to be used for scaling.
        basemap (bool or str, optional):
            If True, add an OpenStreetMap basemap underneath the plot. If a string, use it as
            the tile provider name (e.g. "CartoDB.Positron"). Default is None (no basemap).
            Requires the [viz] extra (mercantile, xyzservices, Pillow).
    kwargs:
            | Parameter                   | Type                | Description |
            |-----------------------------|---------------------|-------------|
            | `points`                    | array               | 3 column array with the first column as the value to display for the point, the second as the row index, and the third as the column index in the array. The second and third columns tell the location of the point. |
            | `point_color`               | str                 | Color of the point. |
            | `point_size`                | Any                 | Size of the point. |
            | `pid_color`                 | str                 | Color of the annotation of the point. Default is blue. |
            | `pid_size`                  | Any                 | Size of the point annotation. |
            | `figsize`                   | tuple, optional     | Figure size. Default is `(8, 8)`. |
            | `title`                     | str, optional       | Title of the plot. Default is `'Total Discharge'`. |
            | `title_size`                | int, optional       | Title size. Default is `15`. |
            | `orientation`               | str, optional       | Orientation of the color bar (`horizontal` or `vertical`). Default is `'vertical'`. |
            | `rotation`                  | number, optional    | Rotation of the color bar label. Default is `-90`. |
            | `cbar_length`               | float, optional     | Ratio to control the height of the color bar. Default is `0.75`. |
            | `ticks_spacing`             | int, optional       | Spacing between color bar ticks. Default is `2`. |
            | `cbar_label_size`           | int, optional       | Size of the color bar label. Default is `12`. |
            | `cbar_label`                | str, optional       | Label of the color bar. Default is `'Discharge m\u00b3/s'`. |
            | `color_scale`               | str, optional       | Color-scale mode. One of `"linear"`, `"power"`, `"sym-lognorm"`, `"boundary-norm"`, `"midpoint"` (case-insensitive), or a `cleopatra.styles.ColorScale` member. Integer codes are no longer accepted. Default is `"linear"`. |
            | `gamma`                     | float, optional     | Exponent for the `"power"` color scale. Default is `1/2`. |
            | `line_threshold`            | float, optional     | `linthresh` for the `"sym-lognorm"` color scale. Default is `0.0001`. |
            | `line_scale`                | float, optional     | `linscale` for the `"sym-lognorm"` color scale. Default is `0.001`. |
            | `bounds`                    | list, optional      | Discrete bounds for the `"boundary-norm"` color scale. Default is `None`. |
            | `midpoint`                  | float, optional     | Midpoint value for the `"midpoint"` color scale. Default is `0`. |
            | `cmap`                      | str, optional       | Color map style. Default is `'coolwarm_r'`. |
            | `display_cell_value`        | bool, optional      | Whether to display cell values as text. |
            | `num_size`                  | int, optional       | Size of numbers plotted on top of each cell. Default is `8`. |
            | `background_color_threshold`| float or int, optional | Threshold for deciding text color over cells: if value > threshold -> black text; else white text. If `None`, max value / 2 is used. Default is `None`. |
    Returns:
        ArrayGlyph:
            A cleopatra ``ArrayGlyph`` wrapping the rendered figure. The underlying matplotlib
            primitives are exposed as ``cleo.fig`` (the :class:`matplotlib.figure.Figure`) and
            ``cleo.ax`` (the :class:`matplotlib.axes.Axes`) \u2014 use these as the escape hatch
            when you need to further customise the plot with raw matplotlib calls. For the
            full ``ArrayGlyph`` API see the
            [ArrayGlyph reference](https://serapeum-org.github.io/cleopatra/latest/api/array-glyph-class/).
    Examples:
        - Plot a certain band:
          ```python
          >>> import numpy as np
          >>> arr = np.random.rand(4, 10, 10)
          >>> top_left_corner = (0, 0)
          >>> cell_size = 0.05
          >>> dataset = Dataset.create_from_array(arr, top_left_corner=top_left_corner, cell_size=cell_size,epsg=4326)
          >>> dataset.plot(band=0)
          (<Figure size 800x800 with 2 Axes>, <Axes: >)
          ```
        - plot using power scale.
          ```python
          >>> dataset.plot(band=0, color_scale="power")
          (<Figure size 800x800 with 2 Axes>, <Axes: >)
          ```
        - plot using SymLogNorm scale.
          ```python
          >>> dataset.plot(band=0, color_scale="sym-lognorm")
          (<Figure size 800x800 with 2 Axes>, <Axes: >)
          ```
        - plot using PowerNorm scale.
          ```python
          >>> dataset.plot(band=0, color_scale="boundary-norm", bounds=[0, 0.2, 0.4, 0.6, 0.8, 1])
          (<Figure size 800x800 with 2 Axes>, <Axes: >)
          ```
        - plot using BoundaryNorm scale.
          ```python
          >>> dataset.plot(band=0, color_scale="midpoint")
          (<Figure size 800x800 with 2 Axes>, <Axes: >)
          ```
    """
    no_data_value = [np.nan if i is None else i for i in self._ds.no_data_value]
    # `coords` is the PR-3 curvilinear kwarg; the helper handles the
    # mutually-exclusive `extent` swap. `facet_kwargs` (PR-4) is
    # forwarded by `NetCDF.plot` to switch the helper to the
    # `mode="facet"` branch; the pre-built stack arrives alongside as
    # `_facet_stack` and its spatial extent as `_extent` (the facet
    # stack is *injected*, not read from `self._ds`, so the engine
    # can't derive the extent from `self._ds.bbox` — the caller must
    # supply it). `_chunks` (PR-5) is injected by `NetCDF.plot` to
    # switch the static-plot read path to the dask-backed lazy read;
    # only the rendered slice is materialised.
    coords = kwargs.pop("coords", None)
    facet_kwargs = kwargs.pop("facet_kwargs", None)
    facet_stack = kwargs.pop("_facet_stack", None)
    injected_extent = kwargs.pop("_extent", None)
    chunks = kwargs.pop("_chunks", None)
    mode = "facet" if facet_kwargs else "plot"
    if mode == "facet":
        arr = facet_stack
    elif chunks is not None:
        # Lazy read path: build a dask array of the variable, then
        # materialise only the requested slice via `.compute()`.
        # `read_array(chunks=...)` is only meaningful on NetCDF —
        # plain Dataset doesn't support `chunks`. The kwarg arrives
        # here only because NetCDF.plot injected it, so the call is
        # safe to issue.
        lazy = self._ds.read_array(chunks=chunks)
        if hasattr(lazy, "compute"):
            if lazy.ndim > 2:
                # `read_array(chunks=...)` returns the variable's
                # native `(d0, d1, ..., rows, cols)` shape, whereas
                # the eager `read_array()` flattens the non-spatial
                # dims into a single bands axis. Match that flatten so
                # `band` indexes the same slice. The reshape stays
                # lazy — `read_array(chunks=...)` already chunks the
                # non-spatial dims at size 1, so it's a pure relabel —
                # and only the chosen band's chunks get computed.
                lazy = lazy.reshape(-1, *lazy.shape[-2:])
                arr = np.asarray(lazy[band].compute())
            else:
                arr = np.asarray(lazy.compute())
        else:
            arr = lazy if band is None else lazy[band]
    else:
        # When ``rgb`` is supplied, cleopatra's ArrayGlyph needs the full
        # multi-band ``(bands, rows, cols)`` array so it can pick the
        # colour channels itself. In all other cases we render just the
        # requested band as a 2-D array.
        read_band = None if rgb is not None else band
        if overview:
            arr = self._ds.read_overview_array(
                band=read_band,
                overview_index=(
                    overview_index if overview_index is not None else 0
                ),
            )
        else:
            arr = self._ds.read_array(band=read_band)
    exclude_value = (
        [no_data_value[band], exclude_value]
        if exclude_value is not None
        else [no_data_value[band]]
    )
    ax = kwargs.pop("ax", None)
    fig = kwargs.pop("fig", None)
    # On the self-read paths (`mode="plot"` / `_chunks`) the data and
    # the extent both come from `self._ds`. On the injected-stack path
    # (`mode="facet"`) the caller passes `_extent` so the panels are
    # placed at the stack's own spatial domain rather than implicitly
    # trusting that it matches `self._ds.bbox`.
    effective_extent = (
        injected_extent if injected_extent is not None else self._ds.bbox
    )
    return render_array(
        arr=arr,
        extent=effective_extent,
        coords=coords,
        exclude_value=exclude_value,
        rgb=rgb,
        surface_reflectance=surface_reflectance,
        cutoff=cutoff,
        percentile=percentile,
        mode=mode,
        facet_kwargs=facet_kwargs,
        ax=ax,
        fig=fig,
        basemap=basemap,
        basemap_epsg=self._ds.epsg,
        **kwargs,
    )
