GEV Distribution

statista.distributions.GEV

Bases: AbstractDistribution

GEV (Generalized Extreme value statistics)

• The Generalized Extreme Value (GEV) distribution is used to model the largest or smallest value among a large set of independent, identically distributed random values.

• The GEV distribution encompasses three types of distributions: Gumbel, Fréchet, and Weibull, which are distinguished by a shape parameter (\(\\xi\) (xi)).

• The probability density function (PDF) of the Generalized-extreme-value distribution is:

  \[ f(x; \\zeta, \\delta, \\xi)=\\frac{1}{\\delta}\\mathrm{*}{\\mathrm{Q(x)}}^{\\xi+1}\\mathrm{ *} e^{\\mathrm{-Q(x)}} \]
  \[ Q(x; \\zeta, \\delta, \\xi)= \\begin{cases} \\left(1+ \\xi \\left(\\frac{x-\\zeta}{\\delta} \\right) \\right)^\\frac{-1}{\\xi} & \\quad\\land\\xi\\neq 0 \\\\ e^{- \\left(\\frac{x-\\zeta}{\\delta} \\right)} & \\quad \\land \\xi=0 \\end{cases} \]

  Where the \(\\delta\) (delta) is the scale parameter, \(\\zeta\) (zeta) is the location parameter, and \(\\xi\) (xi) is the shape parameter.

• The location parameter \(\\zeta\) shifts the distribution along the x-axis. It essentially determines the mode (peak) of the distribution and its location. Changing the location parameter moves the distribution left or right without altering its shape. The location parameter ranges from negative infinity to positive infinity.

• The scale parameter \(\\delta\) controls the spread or dispersion of the distribution. A larger scale parameter results in a wider distribution, while a smaller scale parameter results in a narrower distribution. It must always be positive.

• The shape parameter \(\\xi\) (xi) determines the shape of the distribution. The shape parameter can be positive, negative, or zero. The shape parameter is used to classify the GEV distribution into three types: \(\\xi = 0\) Gumbel (Type I), \(\\xi > 0\) Fréchet (Type II), and \(\\xi < 0\) Weibull (Type III). The shape parameter determines the tail behavior of the distribution.

  In hydrology, the distribution is reparametrized with \(k=-\\xi\) (xi) (El Adlouni et al., 2008).

• The cumulative distribution function (CDF) is:

  \[ F(x; \\zeta, \\delta, \\xi)= \\begin{cases} \\exp\\left(- \\left(1+ \\xi \\left(\\frac{x-\\zeta}{\\delta} \\right) \\right)^\\frac{-1}{\\xi} \\right) & \\quad\\land\\xi\\neq 0 \\land 1 + \\xi \\left( \\frac{x-\\zeta}{\\delta}\\right) > 0 \\\\ \\exp\\left(- \\exp\\left(- \\frac{x-\\zeta}{\\delta} \\right) \\right) & \\quad \\land \\xi=0 \\end{cases} \]

Source code in src/statista/distributions/gev.py

class GEV(AbstractDistribution):
    r"""GEV (Generalized Extreme value statistics)

    - The Generalized Extreme Value (GEV) distribution is used to model the largest or smallest value among a large
        set of independent, identically distributed random values.
    - The GEV distribution encompasses three types of distributions: Gumbel, Fréchet, and Weibull, which are
        distinguished by a shape parameter (\(\\xi\) (xi)).

    - The probability density function (PDF) of the Generalized-extreme-value distribution is:

        $$
        f(x; \\zeta, \\delta, \\xi)=\\frac{1}{\\delta}\\mathrm{*}{\\mathrm{Q(x)}}^{\\xi+1}\\mathrm{
        *} e^{\\mathrm{-Q(x)}}
        $$

        $$
        Q(x; \\zeta, \\delta, \\xi)=
        \\begin{cases}
            \\left(1+ \\xi \\left(\\frac{x-\\zeta}{\\delta} \\right) \\right)^\\frac{-1}{\\xi} &
            \\quad\\land\\xi\\neq 0 \\\\
            e^{- \\left(\\frac{x-\\zeta}{\\delta} \\right)} & \\quad \\land \\xi=0
        \\end{cases}
        $$

        Where the \(\\delta\) (delta) is the scale parameter, \(\\zeta\) (zeta) is the location parameter,
        and \(\\xi\) (xi) is the shape parameter.

    - The location parameter \(\\zeta\) shifts the distribution along the x-axis. It essentially determines the mode
        (peak) of the distribution and its location. Changing the location parameter moves the distribution left or
        right without altering its shape. The location parameter ranges from negative infinity to positive infinity.
    - The scale parameter \(\\delta\) controls the spread or dispersion of the distribution. A larger scale parameter
        results in a wider distribution, while a smaller scale parameter results in a narrower distribution. It must
        always be positive.
    - The shape parameter \(\\xi\) (xi) determines the shape of the distribution. The shape parameter can be positive,
        negative, or zero. The shape parameter is used to classify the GEV distribution into three types: \(\\xi = 0\)
        Gumbel (Type I), \(\\xi > 0\) Fréchet (Type II), and \(\\xi < 0\) Weibull (Type III). The shape
        parameter determines the tail behavior of the distribution.

        In hydrology, the distribution is reparametrized with \(k=-\\xi\) (xi) (El Adlouni et al., 2008).

    - The cumulative distribution function (CDF) is:

        $$
        F(x; \\zeta, \\delta, \\xi)=
        \\begin{cases}
            \\exp\\left(- \\left(1+ \\xi \\left(\\frac{x-\\zeta}{\\delta} \\right) \\right)^\\frac{-1}{\\xi} \\right) &
            \\quad\\land\\xi\\neq 0 \\land 1 + \\xi \\left( \\frac{x-\\zeta}{\\delta}\\right) > 0 \\\\
            \\exp\\left(- \\exp\\left(- \\frac{x-\\zeta}{\\delta} \\right) \\right) & \\quad \\land \\xi=0
        \\end{cases}
        $$

    """

    def __init__(
        self,
        data: list | np.ndarray | None = None,
        parameters: Parameters | dict[str, float] | None = None,
    ):
        """GEV.

        Args:
            data: [list]
                data time series.
            parameters: Parameters
                Distribution parameters instance.

                - loc: [numeric]
                    location parameter of the GEV distribution.
                - scale: [numeric]
                    scale parameter of the GEV distribution.
                - shape: [numeric]
                    shape parameter of the GEV distribution.

        Examples:
            - First load the sample data.
                ```python
                >>> data = np.loadtxt("examples/data/gev.txt")

                ```
        - I nstantiate the Gumbel class only with the data.
            ```python
            >>> gev_dist = GEV(data)
            >>> print(gev_dist) # doctest: +SKIP
            <statista.distributions.Gumbel object at 0x000001CDDE9563F0>

            ```
        - You can also instantiate the Gumbel class with the data and the parameters if you already have them.
            ```python
            >>> parameters = Parameters(loc=0, scale=1, shape=0.1)
            >>> gev_dist = GEV(data, parameters)
            >>> print(gev_dist) # doctest: +SKIP
            <statista.distributions.Gumbel object at 0x000001CDDEB32C00>
            ```
        """
        super().__init__(data, parameters)

    @staticmethod
    def _pdf_eq(data: list | np.ndarray, parameters: Parameters) -> np.ndarray:
        loc = parameters.loc
        scale = parameters.scale
        shape = parameters.shape

        pdf = genextreme.pdf(data, loc=loc, scale=scale, c=shape)
        return pdf

    def pdf(  # type: ignore[override]
        self,
        plot_figure: bool = False,
        parameters: Parameters | dict[str, float] | None = None,
        data: list[float] | np.ndarray | None = None,
        *args: Any,
        **kwargs: Any,
    ) -> tuple[np.ndarray, Figure, Any] | np.ndarray:
        """pdf.

        Returns the value of GEV's pdf with parameters loc and scale at x.

        Args:
            parameters: Parameters, optional, default is None.
                if not provided, the parameters provided in the class initialization will be used.

                - loc: [numeric]
                    location parameter of the GEV distribution.
                - scale: [numeric]
                    scale parameter of the GEV distribution.
                - shape: [numeric]
                    shape parameter of the GEV distribution.
            data: np.ndarray, default is None.
                array if you want to calculate the pdf for different data than the time series given to the constructor
                method.
            plot_figure: [bool]
                Default is False.
            kwargs:
                fig_size: [tuple]
                    Default is (6, 5).
                xlabel: [str]
                    Default is "Actual data".
                ylabel: [str]
                    Default is "pdf".
                fontsize: [int]
                    Default is 15

        Returns:
            pdf: [np.ndarray]
                probability density function pdf.
            fig: matplotlib.figure.Figure, if `plot_figure` is True.
                Figure object.
            ax: matplotlib.axes.Axes, if `plot_figure` is True.
                Axes object.

        Examples:
            - To calculate the pdf of the GEV distribution, we need to provide the parameters.
            ```python
            >>> import numpy as np
            >>> from statista.distributions import GEV
            >>> data = np.loadtxt("examples/data/gev.txt")
            >>> parameters = Parameters(loc=0, scale=1, shape=0.1)
            >>> gev_dist = GEV(data, parameters)
            >>> _ = gev_dist.pdf(plot_figure=True)

            ```

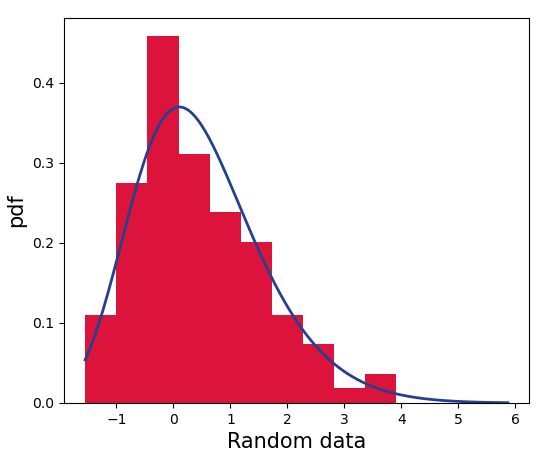

            ![gev-random-pdf](./../../_images/gev-random-pdf.png)
        """
        result = super().pdf(
            parameters=parameters,
            data=data,
            plot_figure=plot_figure,
            *args,
            **kwargs,
        )  # type: ignore[misc]

        return result

    def random(
        self,
        size: int,
        parameters: Parameters | dict[str, float] | None = None,
    ) -> tuple[np.ndarray, Figure, Any] | np.ndarray:
        """Generate Random Variable.

        Args:
            size: int
                size of the random generated sample.
            parameters: Parameters
                Distribution parameters instance.

                - loc: [numeric]
                    location parameter of the gumbel distribution.
                - scale: [numeric]
                    scale parameter of the gumbel distribution.

        Returns:
            data: [np.ndarray]
                random generated data.

        Examples:
            - To generate a random sample that follow the gumbel distribution with the parameters loc=0 and scale=1.
                ```python
                >>> parameters = Parameters(loc=0, scale=1, shape=0.1)
                >>> gev_dist = GEV(parameters=parameters)
                >>> random_data = gev_dist.random(100)

                ```
            - then we can use the `pdf` method to plot the pdf of the random data.
                ```python
                >>> _ = gev_dist.pdf(data=random_data, plot_figure=True, xlabel="Random data")

                ```
                ![gev-random-pdf](./../../_images/gev-random-pdf.png)
                ```
                >>> _ = gev_dist.cdf(data=random_data, plot_figure=True, xlabel="Random data")

                ```

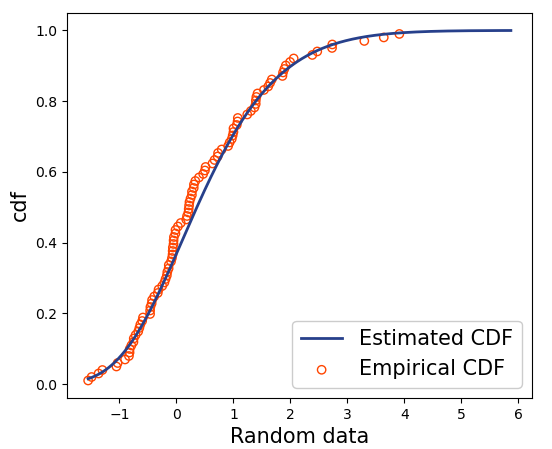

                ![gev-random-cdf](./../../_images/gev-random-cdf.png)
        """
        # if no parameters are provided, take the parameters provided in the class initialization.
        if parameters is None:
            parameters = self.parameters
        elif isinstance(parameters, dict):
            parameters = Parameters(**parameters)

        loc = parameters.loc
        scale = parameters.scale
        shape = parameters.shape

        if scale is None or scale <= 0:
            raise ValueError(SCALE_PARAMETER_ERROR)

        random_data = genextreme.rvs(loc=loc, scale=scale, c=shape, size=size)
        return random_data

    @staticmethod
    def _cdf_eq(data: list | np.ndarray, parameters: Parameters) -> np.ndarray:
        loc = parameters.loc
        scale = parameters.scale
        shape = parameters.shape
        # equation https://www.rdocumentation.org/packages/evd/versions/2.3-6/topics/fextreme
        # z = (ts - loc) / scale
        # if shape == 0:
        #     # GEV is Gumbel distribution
        #     cdf = np.exp(-np.exp(-z))
        # else:
        #     y = 1 - shape * z
        #     cdf = list()
        #     for y_i in y:
        #         if y_i > ninf:
        #             logY = -np.log(y_i) / shape
        #             cdf.append(np.exp(-np.exp(-logY)))
        #         elif shape < 0:
        #             cdf.append(0)
        #         else:
        #             cdf.append(1)
        #
        # cdf = np.array(cdf)
        cdf = genextreme.cdf(data, c=shape, loc=loc, scale=scale)
        return cdf

    def cdf(  # type: ignore[override]
        self,
        plot_figure: bool = False,
        parameters: Parameters | dict[str, float] | None = None,
        data: list[float] | np.ndarray | None = None,
        *args: Any,
        **kwargs: Any,
    ) -> (
        tuple[np.ndarray, Figure, Axes] | np.ndarray
    ):  # pylint: disable=arguments-differ
        """cdf.

        cdf calculates the value of Gumbel's cdf with parameters loc and scale at x.

        Args:
            parameters: Parameters, optional, default is None.
                if not provided, the parameters provided in the class initialization will be used.

                - loc: [numeric]
                    location parameter of the gumbel distribution.
                - scale: [numeric]
                    scale parameter of the gumbel distribution.
            data: np.ndarray, default is None.
                array if you want to calculate the cdf for different data than the time series given to the constructor
                method.
            plot_figure: [bool]
                Default is False.
            kwargs:
                fig_size: [tuple]
                    Default is (6, 5).
                xlabel: [str]
                    Default is "Actual data".
                ylabel: [str]
                    Default is "cdf".
                fontsize: [int]
                    Default is 15.

        Returns:
            cdf: [array]
                cumulative distribution function cdf.
            fig: matplotlib.figure.Figure, if `plot_figure` is True.
                Figure object.
            ax: matplotlib.axes.Axes, if `plot_figure` is True.
                Axes object.

        Examples:
            - To calculate the cdf of the GEV distribution, we need to provide the parameters.
                ```python
                >>> data = np.loadtxt("examples/data/gev.txt")
                >>> parameters = Parameters(loc=0, scale=1, shape=0.1)
                >>> gev_dist = GEV(data, parameters)
                >>> _ = gev_dist.cdf(plot_figure=True)

                ```
            ![gev-random-cdf](./../../_images/gev-random-cdf.png)
        """
        result = super().cdf(
            parameters=parameters,
            data=data,
            plot_figure=plot_figure,
            *args,
            **kwargs,
        )  # type: ignore[misc]
        return result

    def return_period(
        self,
        *,
        data: np.ndarray | None = None,
        parameters: Parameters | dict[str, float] | None = None,
    ) -> np.ndarray:
        """return_period.

            calculate return period calculates the return period for a list/array of values or a single value.

        Args:
            data (list/array/float):
                value you want the coresponding return value for
            parameters (Parameters):
                Distribution parameters instance.

                - shape (float):
                    shape parameter
                - loc (float):
                    location parameter
                - scale (float):
                    scale parameter

        Returns:
            float:
                return period
        """
        if data is None:
            data = self.data

        if parameters is None:
            parameters = self.parameters
        elif isinstance(parameters, dict):
            parameters = Parameters(**parameters)

        cdf: Any = self.cdf(parameters=parameters, data=data)

        rp = 1 / (1 - cdf)

        return rp

    def fit_model(
        self,
        method: str = "mle",
        obj_func=None,
        threshold: int | float | None = None,
        test: bool = True,
    ) -> Parameters:
        """Fit model.

        fit_model estimates the distribution parameter based on MLM
        (Maximum likelihood method), if an objective function is entered as an input

        There are two likelihood functions (L1 and L2), one for values above some
        threshold (x>=C) and one for the values below (x < C), now the likeliest parameters
        are those at the max value of multiplication between two functions max(L1*L2).

        In this case, the L1 is still the product of multiplication of probability
        density function's values at xi, but the L2 is the probability that threshold
        value C will be exceeded (1-F(C)).

        Args:
            obj_func (Callable | None):
                function to be used to get the distribution parameters.
            threshold (int | float | None):
                Value you want to consider only the greater values.
            method (str):
                'mle', 'mm', 'lmoments', optimization
            test (bool):
                Default is True

        Returns:
            Parameters:
                Distribution parameters instance.

                - loc: [numeric]
                    location parameter of the GEV distribution.
                - scale: [numeric]
                    scale parameter of the GEV distribution.
                - shape: [numeric]
                    shape parameter of the GEV distribution.

        Examples:
            - Instantiate the Gumbel class only with the data.
                ```python
                >>> data = np.loadtxt("examples/data/gev.txt")
                >>> gev_dist = GEV(data)

                ```
            - Then use the `fit_model` method to estimate the distribution parameters. the method takes the method as
                parameter, the default is 'mle'. the `test` parameter is used to perform the Kolmogorov-Smirnov and chisquare
                test.
                ```python
                >>> parameters = gev_dist.fit_model(method="mle", test=True)
                -----KS Test--------
                Statistic = 0.06
                Accept Hypothesis
                P value = 0.9942356257694902
                >>> print(parameters) # doctest: +SKIP
                Parameters(loc=-0.05962776672431072, scale=0.9114319092295455, shape=0.03492066094614391)

                ```
            - You can also use the `lmoments` method to estimate the distribution parameters.
                ```python
                >>> parameters = gev_dist.fit_model(method="lmoments", test=True)
                -----KS Test--------
                Statistic = 0.05
                Accept Hypothesis
                P value = 0.9996892272702655
                >>> print(parameters) # doctest: +SKIP
                Parameters(loc=-0.07182150513604696, scale=0.9153288314267931, shape=0.018944589308927475)

                ```
            - You can also use the `fit_model` method to estimate the distribution parameters using the 'optimization'
                method. the optimization method requires the `obj_func` and `threshold` parameter. the method
                will take the `threshold` number and try to fit the data values that are greater than the threshold.
                ```python
                >>> threshold = np.quantile(data, 0.80)
                >>> print(threshold)
                1.39252

                ```
        """
        # obj_func = lambda p, x: (-np.log(Gumbel.pdf(x, p[0], p[1]))).sum()
        # #first we make a simple Gumbel fit
        # Par1 = so.fmin(obj_func, [0.5,0.5], args=(np.array(data),))

        method = super().fit_model(method=method)  # type: ignore[assignment]
        if method == "mle" or method == "mm":
            param_list: Any = list(genextreme.fit(self.data, method=method))
        elif method == "lmoments":
            lm = Lmoments(self.data)
            lmu = lm.calculate()
            param_list = Lmoments.gev(lmu)
        elif method == "optimization":
            if obj_func is None or threshold is None:
                raise TypeError(OBJ_FUNCTION_THRESHOLD_ERROR)

            param_list = genextreme.fit(self.data, method="mle")
            # then we use the result as starting value for your truncated Gumbel fit
            param_list = so.fmin(
                obj_func,
                [threshold, param_list[0], param_list[1], param_list[2]],
                args=(self.data,),
                maxiter=500,
                maxfun=500,
            )
            param_list = [param_list[1], param_list[2], param_list[3]]
        else:
            raise ValueError(f"The given: {method} does not exist")

        param = Parameters(loc=param_list[1], scale=param_list[2], shape=param_list[0])
        self.parameters = param

        if test:
            self.ks()
            self.chisquare()

        return param

    def inverse_cdf(
        self,
        cdf: np.ndarray | list[float] | None = None,
        parameters: Parameters | dict[str, float] | None = None,
    ) -> np.ndarray:
        """Theoretical Estimate.

        Theoretical Estimate method calculates the theoretical values based on a given non-exceedance probability

        Args:
            parameters: Parameters
                Distribution parameters instance.
            cdf: [list]
                cumulative distribution function/ Non-Exceedance probability.

        Returns:
            theoretical value: [numeric]
                Value based on the theoretical distribution

        Examples:
            - Instantiate the Gumbel class only with the data.
                ```python
                >>> data = np.loadtxt("examples/data/gev.txt")
                >>> parameters = Parameters(loc=0, scale=1, shape=0.1)
                >>> gev_dist = GEV(data, parameters)

                ```
            - We will generate a random numbers between 0 and 1 and pass it to the inverse_cdf method as a probabilities
                to get the data that coresponds to these probabilities based on the distribution.
                ```python
                >>> cdf = [0.1, 0.2, 0.4, 0.6, 0.8, 0.9]
                >>> data_values = gev_dist.inverse_cdf(cdf)
                >>> print(data_values)
                [-0.86980039 -0.4873901   0.08704056  0.64966292  1.39286858  2.01513112]

                ```
        """
        if parameters is None:
            parameters = self.parameters
        elif isinstance(parameters, dict):
            parameters = Parameters(**parameters)

        cdf = np.array(cdf)
        if np.any(cdf < 0) or np.any(cdf > 1):
            raise ValueError(CDF_INVALID_VALUE_ERROR)

        q_th = self._inv_cdf(cdf, parameters)  # type: ignore[arg-type]
        return q_th

    @staticmethod
    def _inv_cdf(cdf: np.ndarray | list[float], parameters: Parameters):
        loc = parameters.loc
        scale = parameters.scale
        shape = parameters.shape

        if scale is None or scale <= 0:
            raise ValueError(SCALE_PARAMETER_ERROR)

        if shape is None:
            raise ValueError("Shape parameter should not be None")

        # the main equation from scipy
        q_th = genextreme.ppf(cdf, shape, loc=loc, scale=scale)
        return q_th

    def ks(self):
        """Kolmogorov-Smirnov (KS) test.

        The smaller the D static, the more likely that the two samples are drawn from the same distribution
        IF Pvalue < significance level ------ reject

        Returns:
            Dstatic (numeric):
                The smaller the D static the more likely that the two samples are drawn from the same distribution
            Pvalue (numeric):
                IF Pvalue < significance level ------ reject the null hypothesis
        """
        return super().ks()

    def chisquare(self) -> tuple:
        """chisquare test"""
        return super().chisquare()

    def confidence_interval(  # type: ignore[override]
        self,
        alpha: float = 0.1,
        plot_figure: bool = False,
        prob_non_exceed: np.ndarray = None,
        parameters: Parameters | dict[str, float] | None = None,
        state_function: Callable | None = None,
        n_samples: int = 100,
        method: str = "lmoments",
        **kwargs: Any,
    ) -> (
        tuple[np.ndarray, np.ndarray] | tuple[np.ndarray, np.ndarray, Figure, Axes]
    ):  # pylint: disable=arguments-differ
        """confidence_interval.

        Args:
            parameters: Parameters, optional, default is None.
                if not provided, the parameters provided in the class initialization will be used.

                - loc: [numeric]
                    location parameter of the gumbel distribution.
                - scale: [numeric]
                    scale parameter of the gumbel distribution.
            prob_non_exceed: [list]
                Non-Exceedance probability
            alpha: [numeric]
                alpha or SignificanceLevel is a value of the confidence interval.
            state_function: callable, Default is GEV.ci_func
                function to calculate the confidence interval.
            n_samples: [int]
                number of samples generated by the bootstrap method Default is 100.
            method: [str]
                method used to fit the generated samples from the bootstrap method ["lmoments", "mle", "mm"]. Default is
                "lmoments".
            plot_figure: bool, optional, default is False.
                to plot the confidence interval.

        Returns:
            q_upper: [list]
                upper-bound coresponding to the confidence interval.
            q_lower: [list]
                lower-bound coresponding to the confidence interval.
            fig: matplotlib.figure.Figure
                Figure object.
            ax: matplotlib.axes.Axes
                Axes object.

        Examples:
            - Instantiate the GEV class with the data and the parameters.
                ```python
                >>> import matplotlib.pyplot as plt
                >>> data = np.loadtxt("examples/data/time_series1.txt")
                >>> parameters = Parameters(loc=16.3928, scale=0.70054, shape=-0.1614793)
                >>> gev_dist = GEV(data, parameters)

                ```
            - to calculate the confidence interval, we need to provide the confidence level (`alpha`).
                ```python
                >>> upper, lower = gev_dist.confidence_interval(alpha=0.1)

                ```

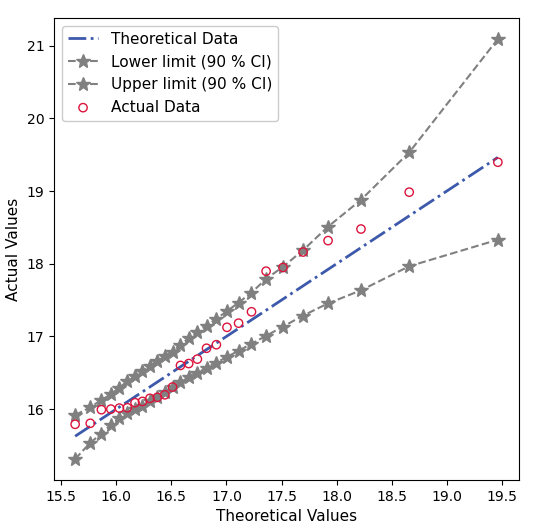

            - You can also plot confidence intervals
                ```python
                >>> upper, lower, fig, ax = gev_dist.confidence_interval(alpha=0.1, plot_figure=True, marker_size=10)

                ```
            ![gev-confidence-interval](./../../_images/gev-confidence-interval.png)
        """
        # if no parameters are provided, take the parameters provided in the class initialization.
        if parameters is None:
            parameters = self.parameters
        elif isinstance(parameters, dict):
            parameters = Parameters(**parameters)

        scale = parameters.scale
        if scale is None or scale <= 0:
            raise ValueError(SCALE_PARAMETER_ERROR)

        if prob_non_exceed is None:
            prob_non_exceed = PlottingPosition.weibul(self.data)
        else:
            # if the prob_non_exceed is given, check if the length is the same as the data
            if len(prob_non_exceed) != len(self.data):
                raise ValueError(PROB_NON_EXCEEDENCE_ERROR)
        if state_function is None:
            state_function = GEV.ci_func

        ci = ConfidenceInterval.boot_strap(
            self.data,
            state_function=state_function,
            gevfit=parameters,
            F=prob_non_exceed,
            alpha=alpha,
            n_samples=n_samples,
            method=method,
            **kwargs,
        )
        q_lower = ci["lb"]
        q_upper = ci["ub"]

        if plot_figure:
            qth = self._inv_cdf(prob_non_exceed, parameters)
            fig, ax = Plot.confidence_level(
                qth, self.data, q_lower, q_upper, alpha=alpha, **kwargs  # type: ignore[arg-type]
            )
            return q_upper, q_lower, fig, ax
        else:
            return q_upper, q_lower

    def plot(
        self,
        fig_size: tuple = (10, 5),
        xlabel: str = PDF_XAXIS_LABEL,
        ylabel: str = "cdf",
        fontsize: int = 15,
        cdf: np.ndarray | list | None = None,
        parameters: Parameters | dict[str, float] | None = None,
    ) -> tuple[Figure, tuple[Axes, Axes]]:
        """Probability Plot.

        Probability Plot method calculates the theoretical values based on the Gumbel distribution
        parameters, theoretical cdf (or weibul), and calculates the confidence interval.

        Args:
            parameters (Parameters):
                Distribution parameters instance.

                - loc (numeric):
                    Location parameter of the GEV distribution.
                - scale (numeric):
                    Scale parameter of the GEV distribution.
                - shape (float | int):
                    Shape parameter for the GEV distribution.
            cdf (list):
                Theoretical cdf calculated using weibul or using the distribution cdf function.
            fontsize (numeric):
                Font size of the axis labels and legend
            ylabel (str):
                y label string
            xlabel (str):
                X label string
            fig_size (int):
                size of the pdf and cdf figure

        Returns:
            Figure:
                matplotlib figure object
            tuple[Axes, Axes]:
                matplotlib plot axes

        Examples:
            - Instantiate the Gumbel class with the data and the parameters.
                ```python
                >>> import numpy as np
                >>> data = np.loadtxt("examples/data/time_series1.txt")
                >>> parameters = Parameters(loc=16.3928, scale=0.70054, shape=-0.1614793)
                >>> gev_dist = GEV(data, parameters)

                ```
            - to calculate the confidence interval, we need to provide the confidence level (`alpha`).
                ```python
                >>> fig, ax = gev_dist.plot()
                >>> print(fig)
                Figure(1000x500)
                >>> print(ax)
                (<Axes: xlabel='Actual data', ylabel='pdf'>, <Axes: xlabel='Actual data', ylabel='cdf'>)

                ```
            ![gev-plot](./../../_images/gev-plot.png)
        """
        # if no parameters are provided, take the parameters provided in the class initialization.
        if parameters is None:
            parameters = self.parameters
        elif isinstance(parameters, dict):
            parameters = Parameters(**parameters)
        scale = parameters.scale

        if scale is None or scale <= 0:
            raise ValueError(SCALE_PARAMETER_ERROR)

        if cdf is None:
            cdf = PlottingPosition.weibul(self.data)
        else:
            # if the prob_non_exceed is given, check if the length is the same as the data
            if len(cdf) != len(self.data):
                raise ValueError(PROB_NON_EXCEEDENCE_ERROR)

        q_x = np.linspace(
            float(self.data_sorted[0]), 1.5 * float(self.data_sorted[-1]), 10000
        )
        pdf_fitted: Any = self.pdf(parameters=parameters, data=q_x)
        cdf_fitted: Any = self.cdf(parameters=parameters, data=q_x)

        fig, ax = Plot.details(
            q_x,
            self.data,
            pdf_fitted,
            cdf_fitted,
            cdf,
            fig_size=fig_size,
            xlabel=xlabel,
            ylabel=ylabel,
            fontsize=fontsize,
        )

        return fig, ax

        # The function to bootstrap

    @staticmethod
    def ci_func(data: list | np.ndarray, **kwargs: Any):
        """GEV distribution function.

        Parameters
        ----------
        data: [list, np.ndarray]
            time series
        kwargs (dict[str, Any]):
            gevfit: Parameters
                GEV distribution parameters instance.
            F: [list]
                Non-Exceedance probability
            method: [str]
                method used to fit the generated samples from the bootstrap method ["lmoments", "mle", "mm"]. Default is
                "lmoments".
        """
        gevfit = kwargs["gevfit"]
        prob_non_exceed = kwargs["F"]
        method = kwargs["method"]
        # generate theoretical estimates based on a random cdf, and the dist parameters
        sample = GEV._inv_cdf(np.random.rand(len(data)), gevfit)  # type: ignore[arg-type]

        # get parameters based on the new generated sample
        dist = GEV(sample)
        new_param = dist.fit_model(method=method, test=False)  # type: ignore[arg-type]

        # return period
        # T = np.arange(0.1, 999.1, 0.1) + 1
        # +1 in order not to make 1- 1/0.1 = -9
        # T = np.linspace(0.1, 999, len(data)) + 1
        # coresponding theoretical estimate to T
        # prob_non_exceed = 1 - 1 / T
        q_th = GEV._inv_cdf(prob_non_exceed, new_param)  # type: ignore[arg-type]

        res = [new_param.loc, new_param.scale, new_param.shape]
        res.extend(q_th)
        return tuple(res)

__init__(data=None, parameters=None)

GEV.

Parameters:

Name	Type	Description	Default
data	list | ndarray | None	[list] data time series.	None
parameters	Parameters | dict[str, float] | None	Parameters Distribution parameters instance. loc: [numeric] location parameter of the GEV distribution. scale: [numeric] scale parameter of the GEV distribution. shape: [numeric] shape parameter of the GEV distribution.	None

Examples:

• First load the sample data.

  >>> data = np.loadtxt("examples/data/gev.txt")


• I nstantiate the Gumbel class only with the data.

  >>> gev_dist = GEV(data)
  >>> print(gev_dist) # doctest: +SKIP
  <statista.distributions.Gumbel object at 0x000001CDDE9563F0>


• You can also instantiate the Gumbel class with the data and the parameters if you already have them.

  >>> parameters = Parameters(loc=0, scale=1, shape=0.1)
  >>> gev_dist = GEV(data, parameters)
  >>> print(gev_dist) # doctest: +SKIP
  <statista.distributions.Gumbel object at 0x000001CDDEB32C00>


Source code in src/statista/distributions/gev.py

def __init__(
    self,
    data: list | np.ndarray | None = None,
    parameters: Parameters | dict[str, float] | None = None,
):
    """GEV.

    Args:
        data: [list]
            data time series.
        parameters: Parameters
            Distribution parameters instance.

            - loc: [numeric]
                location parameter of the GEV distribution.
            - scale: [numeric]
                scale parameter of the GEV distribution.
            - shape: [numeric]
                shape parameter of the GEV distribution.

    Examples:
        - First load the sample data.
            ```python
            >>> data = np.loadtxt("examples/data/gev.txt")

            ```
    - I nstantiate the Gumbel class only with the data.
        ```python
        >>> gev_dist = GEV(data)
        >>> print(gev_dist) # doctest: +SKIP
        <statista.distributions.Gumbel object at 0x000001CDDE9563F0>

        ```
    - You can also instantiate the Gumbel class with the data and the parameters if you already have them.
        ```python
        >>> parameters = Parameters(loc=0, scale=1, shape=0.1)
        >>> gev_dist = GEV(data, parameters)
        >>> print(gev_dist) # doctest: +SKIP
        <statista.distributions.Gumbel object at 0x000001CDDEB32C00>
        ```
    """
    super().__init__(data, parameters)

pdf(plot_figure=False, parameters=None, data=None, *args, **kwargs)

pdf.

Returns the value of GEV's pdf with parameters loc and scale at x.

Parameters:

Name	Type	Description	Default
parameters	Parameters | dict[str, float] | None	Parameters, optional, default is None. if not provided, the parameters provided in the class initialization will be used. loc: [numeric] location parameter of the GEV distribution. scale: [numeric] scale parameter of the GEV distribution. shape: [numeric] shape parameter of the GEV distribution.	None
data	list[float] | ndarray | None	np.ndarray, default is None. array if you want to calculate the pdf for different data than the time series given to the constructor method.	None
plot_figure	bool	[bool] Default is False.	False
kwargs	Any	fig_size: [tuple] Default is (6, 5). xlabel: [str] Default is "Actual data". ylabel: [str] Default is "pdf". fontsize: [int] Default is 15	{}

Returns:

Name	Type	Description
pdf	tuple[ndarray, Figure, Any] | ndarray	[np.ndarray] probability density function pdf.
fig	tuple[ndarray, Figure, Any] | ndarray	matplotlib.figure.Figure, if plot_figure is True. Figure object.
ax	tuple[ndarray, Figure, Any] | ndarray	matplotlib.axes.Axes, if plot_figure is True. Axes object.

Examples:

• To calculate the pdf of the GEV distribution, we need to provide the parameters.

  >>> import numpy as np
  >>> from statista.distributions import GEV
  >>> data = np.loadtxt("examples/data/gev.txt")
  >>> parameters = Parameters(loc=0, scale=1, shape=0.1)
  >>> gev_dist = GEV(data, parameters)
  >>> _ = gev_dist.pdf(plot_figure=True)




Source code in src/statista/distributions/gev.py

def pdf(  # type: ignore[override]
    self,
    plot_figure: bool = False,
    parameters: Parameters | dict[str, float] | None = None,
    data: list[float] | np.ndarray | None = None,
    *args: Any,
    **kwargs: Any,
) -> tuple[np.ndarray, Figure, Any] | np.ndarray:
    """pdf.

    Returns the value of GEV's pdf with parameters loc and scale at x.

    Args:
        parameters: Parameters, optional, default is None.
            if not provided, the parameters provided in the class initialization will be used.

            - loc: [numeric]
                location parameter of the GEV distribution.
            - scale: [numeric]
                scale parameter of the GEV distribution.
            - shape: [numeric]
                shape parameter of the GEV distribution.
        data: np.ndarray, default is None.
            array if you want to calculate the pdf for different data than the time series given to the constructor
            method.
        plot_figure: [bool]
            Default is False.
        kwargs:
            fig_size: [tuple]
                Default is (6, 5).
            xlabel: [str]
                Default is "Actual data".
            ylabel: [str]
                Default is "pdf".
            fontsize: [int]
                Default is 15

    Returns:
        pdf: [np.ndarray]
            probability density function pdf.
        fig: matplotlib.figure.Figure, if `plot_figure` is True.
            Figure object.
        ax: matplotlib.axes.Axes, if `plot_figure` is True.
            Axes object.

    Examples:
        - To calculate the pdf of the GEV distribution, we need to provide the parameters.
        ```python
        >>> import numpy as np
        >>> from statista.distributions import GEV
        >>> data = np.loadtxt("examples/data/gev.txt")
        >>> parameters = Parameters(loc=0, scale=1, shape=0.1)
        >>> gev_dist = GEV(data, parameters)
        >>> _ = gev_dist.pdf(plot_figure=True)

        ```
        ![gev-random-pdf](./../../_images/gev-random-pdf.png)
    """
    result = super().pdf(
        parameters=parameters,
        data=data,
        plot_figure=plot_figure,
        *args,
        **kwargs,
    )  # type: ignore[misc]

    return result

random(size, parameters=None)

Generate Random Variable.

Parameters:

Name	Type	Description	Default
size	int	int size of the random generated sample.	required
parameters	Parameters | dict[str, float] | None	Parameters Distribution parameters instance. loc: [numeric] location parameter of the gumbel distribution. scale: [numeric] scale parameter of the gumbel distribution.	None

Returns:

Name	Type	Description
data	tuple[ndarray, Figure, Any] | ndarray	[np.ndarray] random generated data.

Examples:

• To generate a random sample that follow the gumbel distribution with the parameters loc=0 and scale=1.

  >>> parameters = Parameters(loc=0, scale=1, shape=0.1)
  >>> gev_dist = GEV(parameters=parameters)
  >>> random_data = gev_dist.random(100)


• then we can use the pdf method to plot the pdf of the random data.

  >>> _ = gev_dist.pdf(data=random_data, plot_figure=True, xlabel="Random data")




  >>> _ = gev_dist.cdf(data=random_data, plot_figure=True, xlabel="Random data")




Source code in src/statista/distributions/gev.py

def random(
    self,
    size: int,
    parameters: Parameters | dict[str, float] | None = None,
) -> tuple[np.ndarray, Figure, Any] | np.ndarray:
    """Generate Random Variable.

    Args:
        size: int
            size of the random generated sample.
        parameters: Parameters
            Distribution parameters instance.

            - loc: [numeric]
                location parameter of the gumbel distribution.
            - scale: [numeric]
                scale parameter of the gumbel distribution.

    Returns:
        data: [np.ndarray]
            random generated data.

    Examples:
        - To generate a random sample that follow the gumbel distribution with the parameters loc=0 and scale=1.
            ```python
            >>> parameters = Parameters(loc=0, scale=1, shape=0.1)
            >>> gev_dist = GEV(parameters=parameters)
            >>> random_data = gev_dist.random(100)

            ```
        - then we can use the `pdf` method to plot the pdf of the random data.
            ```python
            >>> _ = gev_dist.pdf(data=random_data, plot_figure=True, xlabel="Random data")

            ```
            ![gev-random-pdf](./../../_images/gev-random-pdf.png)
            ```
            >>> _ = gev_dist.cdf(data=random_data, plot_figure=True, xlabel="Random data")

            ```
            ![gev-random-cdf](./../../_images/gev-random-cdf.png)
    """
    # if no parameters are provided, take the parameters provided in the class initialization.
    if parameters is None:
        parameters = self.parameters
    elif isinstance(parameters, dict):
        parameters = Parameters(**parameters)

    loc = parameters.loc
    scale = parameters.scale
    shape = parameters.shape

    if scale is None or scale <= 0:
        raise ValueError(SCALE_PARAMETER_ERROR)

    random_data = genextreme.rvs(loc=loc, scale=scale, c=shape, size=size)
    return random_data

cdf(plot_figure=False, parameters=None, data=None, *args, **kwargs)

cdf.

cdf calculates the value of Gumbel's cdf with parameters loc and scale at x.

Parameters:

Name	Type	Description	Default
parameters	Parameters | dict[str, float] | None	Parameters, optional, default is None. if not provided, the parameters provided in the class initialization will be used. loc: [numeric] location parameter of the gumbel distribution. scale: [numeric] scale parameter of the gumbel distribution.	None
data	list[float] | ndarray | None	np.ndarray, default is None. array if you want to calculate the cdf for different data than the time series given to the constructor method.	None
plot_figure	bool	[bool] Default is False.	False
kwargs	Any	fig_size: [tuple] Default is (6, 5). xlabel: [str] Default is "Actual data". ylabel: [str] Default is "cdf". fontsize: [int] Default is 15.	{}

Returns:

Name	Type	Description
cdf	tuple[ndarray, Figure, Axes] | ndarray	[array] cumulative distribution function cdf.
fig	tuple[ndarray, Figure, Axes] | ndarray	matplotlib.figure.Figure, if plot_figure is True. Figure object.
ax	tuple[ndarray, Figure, Axes] | ndarray	matplotlib.axes.Axes, if plot_figure is True. Axes object.

Examples:

• To calculate the cdf of the GEV distribution, we need to provide the parameters.

  >>> data = np.loadtxt("examples/data/gev.txt")
  >>> parameters = Parameters(loc=0, scale=1, shape=0.1)
  >>> gev_dist = GEV(data, parameters)
  >>> _ = gev_dist.cdf(plot_figure=True)




Source code in src/statista/distributions/gev.py

def cdf(  # type: ignore[override]
    self,
    plot_figure: bool = False,
    parameters: Parameters | dict[str, float] | None = None,
    data: list[float] | np.ndarray | None = None,
    *args: Any,
    **kwargs: Any,
) -> (
    tuple[np.ndarray, Figure, Axes] | np.ndarray
):  # pylint: disable=arguments-differ
    """cdf.

    cdf calculates the value of Gumbel's cdf with parameters loc and scale at x.

    Args:
        parameters: Parameters, optional, default is None.
            if not provided, the parameters provided in the class initialization will be used.

            - loc: [numeric]
                location parameter of the gumbel distribution.
            - scale: [numeric]
                scale parameter of the gumbel distribution.
        data: np.ndarray, default is None.
            array if you want to calculate the cdf for different data than the time series given to the constructor
            method.
        plot_figure: [bool]
            Default is False.
        kwargs:
            fig_size: [tuple]
                Default is (6, 5).
            xlabel: [str]
                Default is "Actual data".
            ylabel: [str]
                Default is "cdf".
            fontsize: [int]
                Default is 15.

    Returns:
        cdf: [array]
            cumulative distribution function cdf.
        fig: matplotlib.figure.Figure, if `plot_figure` is True.
            Figure object.
        ax: matplotlib.axes.Axes, if `plot_figure` is True.
            Axes object.

    Examples:
        - To calculate the cdf of the GEV distribution, we need to provide the parameters.
            ```python
            >>> data = np.loadtxt("examples/data/gev.txt")
            >>> parameters = Parameters(loc=0, scale=1, shape=0.1)
            >>> gev_dist = GEV(data, parameters)
            >>> _ = gev_dist.cdf(plot_figure=True)

            ```
        ![gev-random-cdf](./../../_images/gev-random-cdf.png)
    """
    result = super().cdf(
        parameters=parameters,
        data=data,
        plot_figure=plot_figure,
        *args,
        **kwargs,
    )  # type: ignore[misc]
    return result

return_period(*, data=None, parameters=None)

return_period.

calculate return period calculates the return period for a list/array of values or a single value.

Parameters:

Name	Type	Description	Default
data	list / array / float	value you want the coresponding return value for	None
parameters	Parameters	Distribution parameters instance. shape (float): shape parameter loc (float): location parameter scale (float): scale parameter	None

Returns:

Name	Type	Description
float	ndarray	return period

Source code in src/statista/distributions/gev.py

def return_period(
    self,
    *,
    data: np.ndarray | None = None,
    parameters: Parameters | dict[str, float] | None = None,
) -> np.ndarray:
    """return_period.

        calculate return period calculates the return period for a list/array of values or a single value.

    Args:
        data (list/array/float):
            value you want the coresponding return value for
        parameters (Parameters):
            Distribution parameters instance.

            - shape (float):
                shape parameter
            - loc (float):
                location parameter
            - scale (float):
                scale parameter

    Returns:
        float:
            return period
    """
    if data is None:
        data = self.data

    if parameters is None:
        parameters = self.parameters
    elif isinstance(parameters, dict):
        parameters = Parameters(**parameters)

    cdf: Any = self.cdf(parameters=parameters, data=data)

    rp = 1 / (1 - cdf)

    return rp

fit_model(method='mle', obj_func=None, threshold=None, test=True)

Fit model.

fit_model estimates the distribution parameter based on MLM (Maximum likelihood method), if an objective function is entered as an input

There are two likelihood functions (L1 and L2), one for values above some threshold (x>=C) and one for the values below (x < C), now the likeliest parameters are those at the max value of multiplication between two functions max(L1*L2).

In this case, the L1 is still the product of multiplication of probability density function's values at xi, but the L2 is the probability that threshold value C will be exceeded (1-F(C)).

Parameters:

Name	Type	Description	Default
obj_func	Callable | None	function to be used to get the distribution parameters.	None
threshold	int | float | None	Value you want to consider only the greater values.	None
method	str	'mle', 'mm', 'lmoments', optimization	'mle'
test	bool	Default is True	True

Returns:

Name	Type	Description
Parameters	Parameters	Distribution parameters instance. loc: [numeric] location parameter of the GEV distribution. scale: [numeric] scale parameter of the GEV distribution. shape: [numeric] shape parameter of the GEV distribution.

Examples:

• Instantiate the Gumbel class only with the data.

  >>> data = np.loadtxt("examples/data/gev.txt")
  >>> gev_dist = GEV(data)


• Then use the fit_model method to estimate the distribution parameters. the method takes the method as parameter, the default is 'mle'. the test parameter is used to perform the Kolmogorov-Smirnov and chisquare test.

  >>> parameters = gev_dist.fit_model(method="mle", test=True)
  -----KS Test--------
  Statistic = 0.06
  Accept Hypothesis
  P value = 0.9942356257694902
  >>> print(parameters) # doctest: +SKIP
  Parameters(loc=-0.05962776672431072, scale=0.9114319092295455, shape=0.03492066094614391)


• You can also use the lmoments method to estimate the distribution parameters.

  >>> parameters = gev_dist.fit_model(method="lmoments", test=True)
  -----KS Test--------
  Statistic = 0.05
  Accept Hypothesis
  P value = 0.9996892272702655
  >>> print(parameters) # doctest: +SKIP
  Parameters(loc=-0.07182150513604696, scale=0.9153288314267931, shape=0.018944589308927475)


• You can also use the fit_model method to estimate the distribution parameters using the 'optimization' method. the optimization method requires the obj_func and threshold parameter. the method will take the threshold number and try to fit the data values that are greater than the threshold.

  >>> threshold = np.quantile(data, 0.80)
  >>> print(threshold)
  1.39252


Source code in src/statista/distributions/gev.py

def fit_model(
    self,
    method: str = "mle",
    obj_func=None,
    threshold: int | float | None = None,
    test: bool = True,
) -> Parameters:
    """Fit model.

    fit_model estimates the distribution parameter based on MLM
    (Maximum likelihood method), if an objective function is entered as an input

    There are two likelihood functions (L1 and L2), one for values above some
    threshold (x>=C) and one for the values below (x < C), now the likeliest parameters
    are those at the max value of multiplication between two functions max(L1*L2).

    In this case, the L1 is still the product of multiplication of probability
    density function's values at xi, but the L2 is the probability that threshold
    value C will be exceeded (1-F(C)).

    Args:
        obj_func (Callable | None):
            function to be used to get the distribution parameters.
        threshold (int | float | None):
            Value you want to consider only the greater values.
        method (str):
            'mle', 'mm', 'lmoments', optimization
        test (bool):
            Default is True

    Returns:
        Parameters:
            Distribution parameters instance.

            - loc: [numeric]
                location parameter of the GEV distribution.
            - scale: [numeric]
                scale parameter of the GEV distribution.
            - shape: [numeric]
                shape parameter of the GEV distribution.

    Examples:
        - Instantiate the Gumbel class only with the data.
            ```python
            >>> data = np.loadtxt("examples/data/gev.txt")
            >>> gev_dist = GEV(data)

            ```
        - Then use the `fit_model` method to estimate the distribution parameters. the method takes the method as
            parameter, the default is 'mle'. the `test` parameter is used to perform the Kolmogorov-Smirnov and chisquare
            test.
            ```python
            >>> parameters = gev_dist.fit_model(method="mle", test=True)
            -----KS Test--------
            Statistic = 0.06
            Accept Hypothesis
            P value = 0.9942356257694902
            >>> print(parameters) # doctest: +SKIP
            Parameters(loc=-0.05962776672431072, scale=0.9114319092295455, shape=0.03492066094614391)

            ```
        - You can also use the `lmoments` method to estimate the distribution parameters.
            ```python
            >>> parameters = gev_dist.fit_model(method="lmoments", test=True)
            -----KS Test--------
            Statistic = 0.05
            Accept Hypothesis
            P value = 0.9996892272702655
            >>> print(parameters) # doctest: +SKIP
            Parameters(loc=-0.07182150513604696, scale=0.9153288314267931, shape=0.018944589308927475)

            ```
        - You can also use the `fit_model` method to estimate the distribution parameters using the 'optimization'
            method. the optimization method requires the `obj_func` and `threshold` parameter. the method
            will take the `threshold` number and try to fit the data values that are greater than the threshold.
            ```python
            >>> threshold = np.quantile(data, 0.80)
            >>> print(threshold)
            1.39252

            ```
    """
    # obj_func = lambda p, x: (-np.log(Gumbel.pdf(x, p[0], p[1]))).sum()
    # #first we make a simple Gumbel fit
    # Par1 = so.fmin(obj_func, [0.5,0.5], args=(np.array(data),))

    method = super().fit_model(method=method)  # type: ignore[assignment]
    if method == "mle" or method == "mm":
        param_list: Any = list(genextreme.fit(self.data, method=method))
    elif method == "lmoments":
        lm = Lmoments(self.data)
        lmu = lm.calculate()
        param_list = Lmoments.gev(lmu)
    elif method == "optimization":
        if obj_func is None or threshold is None:
            raise TypeError(OBJ_FUNCTION_THRESHOLD_ERROR)

        param_list = genextreme.fit(self.data, method="mle")
        # then we use the result as starting value for your truncated Gumbel fit
        param_list = so.fmin(
            obj_func,
            [threshold, param_list[0], param_list[1], param_list[2]],
            args=(self.data,),
            maxiter=500,
            maxfun=500,
        )
        param_list = [param_list[1], param_list[2], param_list[3]]
    else:
        raise ValueError(f"The given: {method} does not exist")

    param = Parameters(loc=param_list[1], scale=param_list[2], shape=param_list[0])
    self.parameters = param

    if test:
        self.ks()
        self.chisquare()

    return param

inverse_cdf(cdf=None, parameters=None)

Theoretical Estimate.

Theoretical Estimate method calculates the theoretical values based on a given non-exceedance probability

Parameters:

Name	Type	Description	Default
parameters	Parameters | dict[str, float] | None	Parameters Distribution parameters instance.	None
cdf	ndarray | list[float] | None	[list] cumulative distribution function/ Non-Exceedance probability.	None

Returns:

Type	Description
ndarray	theoretical value: [numeric] Value based on the theoretical distribution

Examples:

• Instantiate the Gumbel class only with the data.

  >>> data = np.loadtxt("examples/data/gev.txt")
  >>> parameters = Parameters(loc=0, scale=1, shape=0.1)
  >>> gev_dist = GEV(data, parameters)


• We will generate a random numbers between 0 and 1 and pass it to the inverse_cdf method as a probabilities to get the data that coresponds to these probabilities based on the distribution.

  >>> cdf = [0.1, 0.2, 0.4, 0.6, 0.8, 0.9]
  >>> data_values = gev_dist.inverse_cdf(cdf)
  >>> print(data_values)
  [-0.86980039 -0.4873901   0.08704056  0.64966292  1.39286858  2.01513112]


Source code in src/statista/distributions/gev.py

def inverse_cdf(
    self,
    cdf: np.ndarray | list[float] | None = None,
    parameters: Parameters | dict[str, float] | None = None,
) -> np.ndarray:
    """Theoretical Estimate.

    Theoretical Estimate method calculates the theoretical values based on a given non-exceedance probability

    Args:
        parameters: Parameters
            Distribution parameters instance.
        cdf: [list]
            cumulative distribution function/ Non-Exceedance probability.

    Returns:
        theoretical value: [numeric]
            Value based on the theoretical distribution

    Examples:
        - Instantiate the Gumbel class only with the data.
            ```python
            >>> data = np.loadtxt("examples/data/gev.txt")
            >>> parameters = Parameters(loc=0, scale=1, shape=0.1)
            >>> gev_dist = GEV(data, parameters)

            ```
        - We will generate a random numbers between 0 and 1 and pass it to the inverse_cdf method as a probabilities
            to get the data that coresponds to these probabilities based on the distribution.
            ```python
            >>> cdf = [0.1, 0.2, 0.4, 0.6, 0.8, 0.9]
            >>> data_values = gev_dist.inverse_cdf(cdf)
            >>> print(data_values)
            [-0.86980039 -0.4873901   0.08704056  0.64966292  1.39286858  2.01513112]

            ```
    """
    if parameters is None:
        parameters = self.parameters
    elif isinstance(parameters, dict):
        parameters = Parameters(**parameters)

    cdf = np.array(cdf)
    if np.any(cdf < 0) or np.any(cdf > 1):
        raise ValueError(CDF_INVALID_VALUE_ERROR)

    q_th = self._inv_cdf(cdf, parameters)  # type: ignore[arg-type]
    return q_th

ks()

Kolmogorov-Smirnov (KS) test.

The smaller the D static, the more likely that the two samples are drawn from the same distribution IF Pvalue < significance level ------ reject

Returns:

Name	Type	Description
Dstatic	numeric	The smaller the D static the more likely that the two samples are drawn from the same distribution
Pvalue	numeric	IF Pvalue < significance level ------ reject the null hypothesis

Source code in src/statista/distributions/gev.py

def ks(self):
    """Kolmogorov-Smirnov (KS) test.

    The smaller the D static, the more likely that the two samples are drawn from the same distribution
    IF Pvalue < significance level ------ reject

    Returns:
        Dstatic (numeric):
            The smaller the D static the more likely that the two samples are drawn from the same distribution
        Pvalue (numeric):
            IF Pvalue < significance level ------ reject the null hypothesis
    """
    return super().ks()

chisquare()

chisquare test

Source code in src/statista/distributions/gev.py

def chisquare(self) -> tuple:
    """chisquare test"""
    return super().chisquare()

confidence_interval(alpha=0.1, plot_figure=False, prob_non_exceed=None, parameters=None, state_function=None, n_samples=100, method='lmoments', **kwargs)

confidence_interval.

Parameters:

Name	Type	Description	Default
parameters	Parameters | dict[str, float] | None	Parameters, optional, default is None. if not provided, the parameters provided in the class initialization will be used. loc: [numeric] location parameter of the gumbel distribution. scale: [numeric] scale parameter of the gumbel distribution.	None
prob_non_exceed	ndarray	[list] Non-Exceedance probability	None
alpha	float	[numeric] alpha or SignificanceLevel is a value of the confidence interval.	0.1
state_function	Callable | None	callable, Default is GEV.ci_func function to calculate the confidence interval.	None
n_samples	int	[int] number of samples generated by the bootstrap method Default is 100.	100
method	str	[str] method used to fit the generated samples from the bootstrap method ["lmoments", "mle", "mm"]. Default is "lmoments".	'lmoments'
plot_figure	bool	bool, optional, default is False. to plot the confidence interval.	False

Returns:

Name	Type	Description
q_upper	tuple[ndarray, ndarray] | tuple[ndarray, ndarray, Figure, Axes]	[list] upper-bound coresponding to the confidence interval.
q_lower	tuple[ndarray, ndarray] | tuple[ndarray, ndarray, Figure, Axes]	[list] lower-bound coresponding to the confidence interval.
fig	tuple[ndarray, ndarray] | tuple[ndarray, ndarray, Figure, Axes]	matplotlib.figure.Figure Figure object.
ax	tuple[ndarray, ndarray] | tuple[ndarray, ndarray, Figure, Axes]	matplotlib.axes.Axes Axes object.

Examples:

• Instantiate the GEV class with the data and the parameters.

  >>> import matplotlib.pyplot as plt
  >>> data = np.loadtxt("examples/data/time_series1.txt")
  >>> parameters = Parameters(loc=16.3928, scale=0.70054, shape=-0.1614793)
  >>> gev_dist = GEV(data, parameters)


• to calculate the confidence interval, we need to provide the confidence level (alpha).

  >>> upper, lower = gev_dist.confidence_interval(alpha=0.1)


• You can also plot confidence intervals

  >>> upper, lower, fig, ax = gev_dist.confidence_interval(alpha=0.1, plot_figure=True, marker_size=10)




Source code in src/statista/distributions/gev.py

def confidence_interval(  # type: ignore[override]
    self,
    alpha: float = 0.1,
    plot_figure: bool = False,
    prob_non_exceed: np.ndarray = None,
    parameters: Parameters | dict[str, float] | None = None,
    state_function: Callable | None = None,
    n_samples: int = 100,
    method: str = "lmoments",
    **kwargs: Any,
) -> (
    tuple[np.ndarray, np.ndarray] | tuple[np.ndarray, np.ndarray, Figure, Axes]
):  # pylint: disable=arguments-differ
    """confidence_interval.

    Args:
        parameters: Parameters, optional, default is None.
            if not provided, the parameters provided in the class initialization will be used.

            - loc: [numeric]
                location parameter of the gumbel distribution.
            - scale: [numeric]
                scale parameter of the gumbel distribution.
        prob_non_exceed: [list]
            Non-Exceedance probability
        alpha: [numeric]
            alpha or SignificanceLevel is a value of the confidence interval.
        state_function: callable, Default is GEV.ci_func
            function to calculate the confidence interval.
        n_samples: [int]
            number of samples generated by the bootstrap method Default is 100.
        method: [str]
            method used to fit the generated samples from the bootstrap method ["lmoments", "mle", "mm"]. Default is
            "lmoments".
        plot_figure: bool, optional, default is False.
            to plot the confidence interval.

    Returns:
        q_upper: [list]
            upper-bound coresponding to the confidence interval.
        q_lower: [list]
            lower-bound coresponding to the confidence interval.
        fig: matplotlib.figure.Figure
            Figure object.
        ax: matplotlib.axes.Axes
            Axes object.

    Examples:
        - Instantiate the GEV class with the data and the parameters.
            ```python
            >>> import matplotlib.pyplot as plt
            >>> data = np.loadtxt("examples/data/time_series1.txt")
            >>> parameters = Parameters(loc=16.3928, scale=0.70054, shape=-0.1614793)
            >>> gev_dist = GEV(data, parameters)

            ```
        - to calculate the confidence interval, we need to provide the confidence level (`alpha`).
            ```python
            >>> upper, lower = gev_dist.confidence_interval(alpha=0.1)

            ```
        - You can also plot confidence intervals
            ```python
            >>> upper, lower, fig, ax = gev_dist.confidence_interval(alpha=0.1, plot_figure=True, marker_size=10)

            ```
        ![gev-confidence-interval](./../../_images/gev-confidence-interval.png)
    """
    # if no parameters are provided, take the parameters provided in the class initialization.
    if parameters is None:
        parameters = self.parameters
    elif isinstance(parameters, dict):
        parameters = Parameters(**parameters)

    scale = parameters.scale
    if scale is None or scale <= 0:
        raise ValueError(SCALE_PARAMETER_ERROR)

    if prob_non_exceed is None:
        prob_non_exceed = PlottingPosition.weibul(self.data)
    else:
        # if the prob_non_exceed is given, check if the length is the same as the data
        if len(prob_non_exceed) != len(self.data):
            raise ValueError(PROB_NON_EXCEEDENCE_ERROR)
    if state_function is None:
        state_function = GEV.ci_func

    ci = ConfidenceInterval.boot_strap(
        self.data,
        state_function=state_function,
        gevfit=parameters,
        F=prob_non_exceed,
        alpha=alpha,
        n_samples=n_samples,
        method=method,
        **kwargs,
    )
    q_lower = ci["lb"]
    q_upper = ci["ub"]

    if plot_figure:
        qth = self._inv_cdf(prob_non_exceed, parameters)
        fig, ax = Plot.confidence_level(
            qth, self.data, q_lower, q_upper, alpha=alpha, **kwargs  # type: ignore[arg-type]
        )
        return q_upper, q_lower, fig, ax
    else:
        return q_upper, q_lower

plot(fig_size=(10, 5), xlabel=PDF_XAXIS_LABEL, ylabel='cdf', fontsize=15, cdf=None, parameters=None)

Probability Plot.

Probability Plot method calculates the theoretical values based on the Gumbel distribution parameters, theoretical cdf (or weibul), and calculates the confidence interval.

Parameters:

Name	Type	Description	Default
parameters	Parameters	Distribution parameters instance. loc (numeric): Location parameter of the GEV distribution. scale (numeric): Scale parameter of the GEV distribution. shape (float | int): Shape parameter for the GEV distribution.	None
cdf	list	Theoretical cdf calculated using weibul or using the distribution cdf function.	None
fontsize	numeric	Font size of the axis labels and legend	15
ylabel	str	y label string	'cdf'
xlabel	str	X label string	PDF_XAXIS_LABEL
fig_size	int	size of the pdf and cdf figure	(10, 5)

Returns:

Name	Type	Description
Figure	Figure	matplotlib figure object
	tuple[Axes, Axes]	tuple[Axes, Axes]: matplotlib plot axes

Examples:

• Instantiate the Gumbel class with the data and the parameters.

  >>> import numpy as np
  >>> data = np.loadtxt("examples/data/time_series1.txt")
  >>> parameters = Parameters(loc=16.3928, scale=0.70054, shape=-0.1614793)
  >>> gev_dist = GEV(data, parameters)


• to calculate the confidence interval, we need to provide the confidence level (alpha).

  >>> fig, ax = gev_dist.plot()
  >>> print(fig)
  Figure(1000x500)
  >>> print(ax)
  (<Axes: xlabel='Actual data', ylabel='pdf'>, <Axes: xlabel='Actual data', ylabel='cdf'>)




Source code in src/statista/distributions/gev.py

def plot(
    self,
    fig_size: tuple = (10, 5),
    xlabel: str = PDF_XAXIS_LABEL,
    ylabel: str = "cdf",
    fontsize: int = 15,
    cdf: np.ndarray | list | None = None,
    parameters: Parameters | dict[str, float] | None = None,
) -> tuple[Figure, tuple[Axes, Axes]]:
    """Probability Plot.

    Probability Plot method calculates the theoretical values based on the Gumbel distribution
    parameters, theoretical cdf (or weibul), and calculates the confidence interval.

    Args:
        parameters (Parameters):
            Distribution parameters instance.

            - loc (numeric):
                Location parameter of the GEV distribution.
            - scale (numeric):
                Scale parameter of the GEV distribution.
            - shape (float | int):
                Shape parameter for the GEV distribution.
        cdf (list):
            Theoretical cdf calculated using weibul or using the distribution cdf function.
        fontsize (numeric):
            Font size of the axis labels and legend
        ylabel (str):
            y label string
        xlabel (str):
            X label string
        fig_size (int):
            size of the pdf and cdf figure

    Returns:
        Figure:
            matplotlib figure object
        tuple[Axes, Axes]:
            matplotlib plot axes

    Examples:
        - Instantiate the Gumbel class with the data and the parameters.
            ```python
            >>> import numpy as np
            >>> data = np.loadtxt("examples/data/time_series1.txt")
            >>> parameters = Parameters(loc=16.3928, scale=0.70054, shape=-0.1614793)
            >>> gev_dist = GEV(data, parameters)

            ```
        - to calculate the confidence interval, we need to provide the confidence level (`alpha`).
            ```python
            >>> fig, ax = gev_dist.plot()
            >>> print(fig)
            Figure(1000x500)
            >>> print(ax)
            (<Axes: xlabel='Actual data', ylabel='pdf'>, <Axes: xlabel='Actual data', ylabel='cdf'>)

            ```
        ![gev-plot](./../../_images/gev-plot.png)
    """
    # if no parameters are provided, take the parameters provided in the class initialization.
    if parameters is None:
        parameters = self.parameters
    elif isinstance(parameters, dict):
        parameters = Parameters(**parameters)
    scale = parameters.scale

    if scale is None or scale <= 0:
        raise ValueError(SCALE_PARAMETER_ERROR)

    if cdf is None:
        cdf = PlottingPosition.weibul(self.data)
    else:
        # if the prob_non_exceed is given, check if the length is the same as the data
        if len(cdf) != len(self.data):
            raise ValueError(PROB_NON_EXCEEDENCE_ERROR)

    q_x = np.linspace(
        float(self.data_sorted[0]), 1.5 * float(self.data_sorted[-1]), 10000
    )
    pdf_fitted: Any = self.pdf(parameters=parameters, data=q_x)
    cdf_fitted: Any = self.cdf(parameters=parameters, data=q_x)

    fig, ax = Plot.details(
        q_x,
        self.data,
        pdf_fitted,
        cdf_fitted,
        cdf,
        fig_size=fig_size,
        xlabel=xlabel,
        ylabel=ylabel,
        fontsize=fontsize,
    )

    return fig, ax

ci_func(data, **kwargs) staticmethod

GEV distribution function.

Parameters

data: [list, np.ndarray] time series kwargs (dict[str, Any]): gevfit: Parameters GEV distribution parameters instance. F: [list] Non-Exceedance probability method: [str] method used to fit the generated samples from the bootstrap method ["lmoments", "mle", "mm"]. Default is "lmoments".

Source code in src/statista/distributions/gev.py

@staticmethod
def ci_func(data: list | np.ndarray, **kwargs: Any):
    """GEV distribution function.

    Parameters
    ----------
    data: [list, np.ndarray]
        time series
    kwargs (dict[str, Any]):
        gevfit: Parameters
            GEV distribution parameters instance.
        F: [list]
            Non-Exceedance probability
        method: [str]
            method used to fit the generated samples from the bootstrap method ["lmoments", "mle", "mm"]. Default is
            "lmoments".
    """
    gevfit = kwargs["gevfit"]
    prob_non_exceed = kwargs["F"]
    method = kwargs["method"]
    # generate theoretical estimates based on a random cdf, and the dist parameters
    sample = GEV._inv_cdf(np.random.rand(len(data)), gevfit)  # type: ignore[arg-type]

    # get parameters based on the new generated sample
    dist = GEV(sample)
    new_param = dist.fit_model(method=method, test=False)  # type: ignore[arg-type]

    # return period
    # T = np.arange(0.1, 999.1, 0.1) + 1
    # +1 in order not to make 1- 1/0.1 = -9
    # T = np.linspace(0.1, 999, len(data)) + 1
    # coresponding theoretical estimate to T
    # prob_non_exceed = 1 - 1 / T
    q_th = GEV._inv_cdf(prob_non_exceed, new_param)  # type: ignore[arg-type]

    res = [new_param.loc, new_param.scale, new_param.shape]
    res.extend(q_th)
    return tuple(res)
